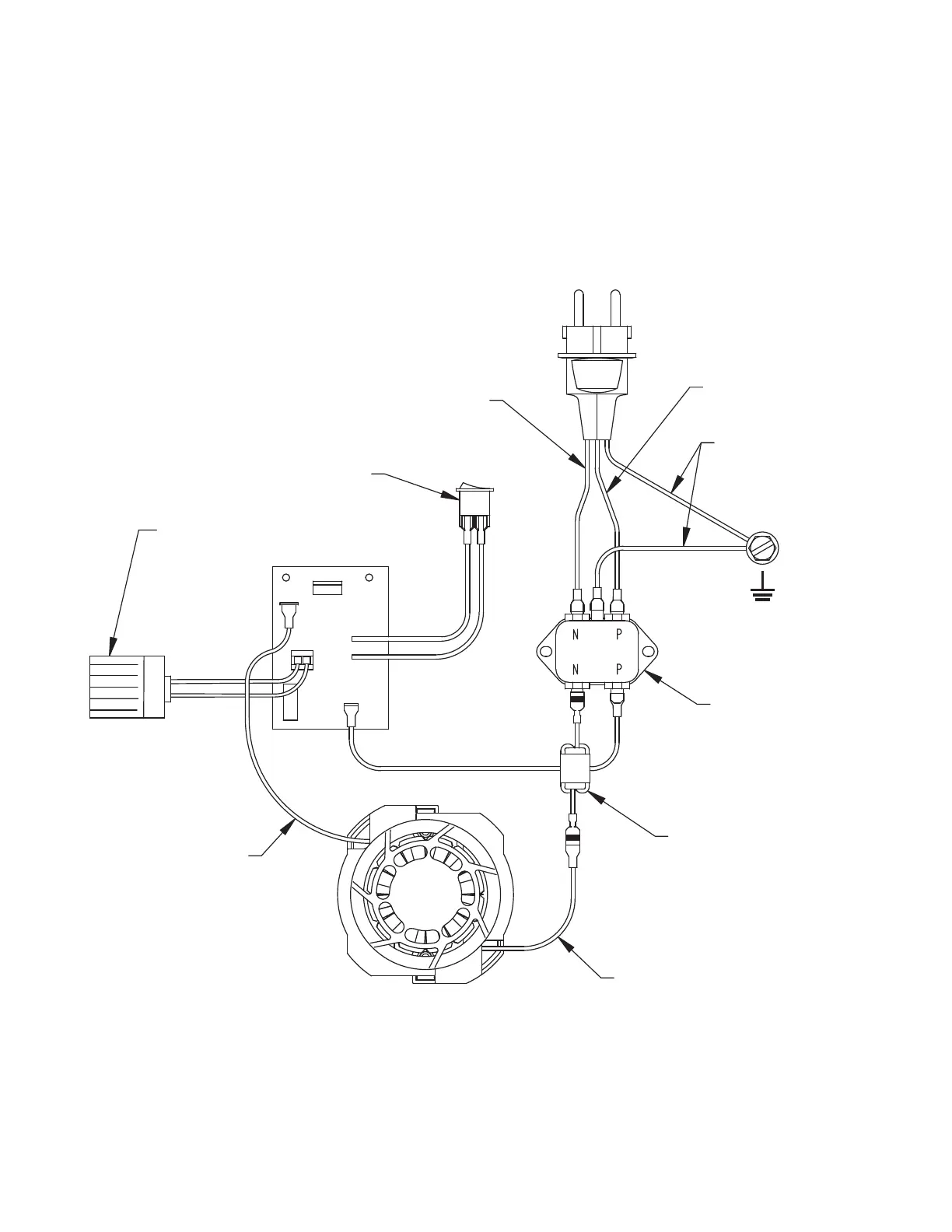

Wiring Diagrams
44 332695C
Wiring Diagrams
Magnum LTS 15 and LTS 17
Models 16W120 and 16W121
ti22198b
Power Cord
Power Cord
Ref. EMI Filter
Ferrite Harness
Black Motor Lead
Black Motor Lead
Power Cord
Pressure Control
ON/OFF
Blue Wire
Switch
with White Heat Shrink
Green Wire
Brown Wire

Table of Contents

Other manuals for Graco Magnum LTS 15

Preview: Operation
Operation34 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Graco Magnum LTS 15 and is the answer not in the manual?

Graco Magnum LTS 15 Specifications

General IconGeneral
TypeAirless Paint Sprayer
Maximum Tip Size0.015 inches
Maximum Pressure3000 psi
Power SourceElectric
Voltage120V
Maximum Hose Length75 feet
Flow Rate0.27 GPM
ApplicationInterior and Exterior
Spray Tip515
