Pump
10 3A3951A

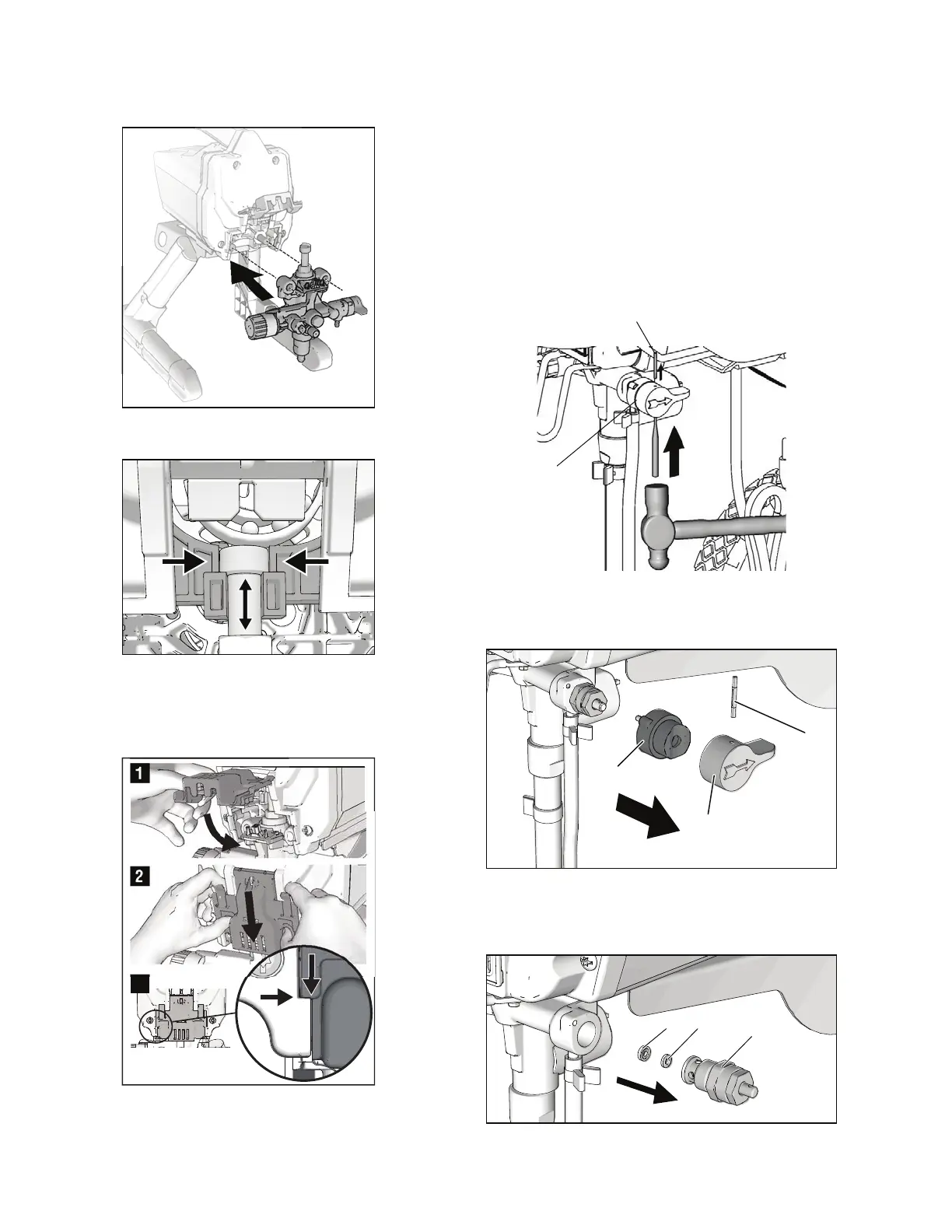

7. Slide pump assembly onto the mounting pins.
8. Move pump displacement rod up or down until cap is
level with the opening in the yoke.
Close Easy Access Door
9. Swing easy access door pump door closed while
pushing the entire door towards the inlet end of the
pump.
NOTE: Door must be fully closed and latched before
sprayer will operate.
Prime/Spray Valve and Knob
Replacement
Disassembly
1. Perform Pressure Relief Procedure, on page 1.
2. Unplug sprayer.
3. Turn knob (A) up to SPRAY position.
4. Remove pin (B) with pin punch and hammer.
5. Remove knob (A) and base (C).
6. Remove valve stem assembly (D) from pump hous-
ing (1). Make certain gasket (X) and seat (Z) do not
stay in pump housing (1).
ti27036a
ti27037a
1
ti27478a
2
3
B
X
Z
D
ti11875b
