Accessories
3A3951A 13
Accessories
Magnum ProX Lacquer
Conversion
To spray lacquers with the ProX17, ProX19, ProLTS170
or ProLTS190 sprayers you must install a lacquer con-
version kit and follow the Static Grounding Instructions
(Oil-Based) materials) in your Owners/Operation man-
ual when using oil-based materials.

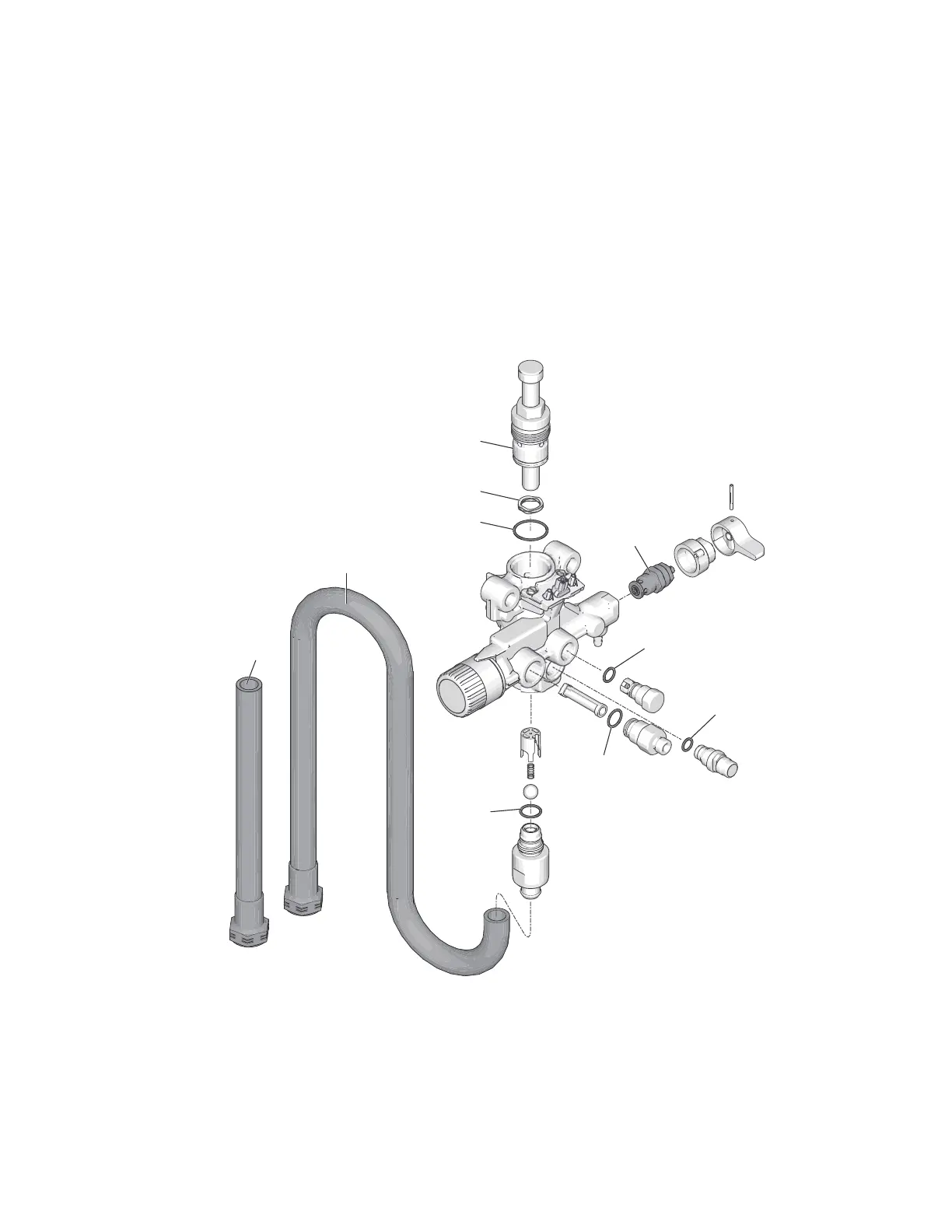

To convert a sprayer to spray lacquer materials several
O-rings, suction tube, and Prime/Spray (drain) valve
must be replaced.
1. Perform Pressure Relief Procedure, on page 1.
2. Unplug sprayer.
3. Follow the instructions in this section and the others
referenced to replace the components provided in
this kit.
Ref.
Part Description
Qty. For replacement instructions see.
6a 124582 O-ring 1 Pump Inlet Valve Replacement page 12
7a 16P303 O-ring 1 PushPrime Button Replacement page 12
8 239913 VALVE, drain, assy 1 Prime/Spray Valve and Knob Replacement page 10
13 120776 O-ring 1 Pump Outlet Valve Replacement page 11
21 16D531 O-ring 1 Pump Packing O-ring Replacement, on page 14
26 17K256 Tube, suction 1 Suction Tube Replacement page 14
37 17D155 Tube, suction 1 Suction Tube Replacement page 14
42 118594 O-ring 1 Pump Outlet Valve Replacement page 11
21
16
25
8
42
7
a
1
3
6
a
3
7
26
ti28561a
