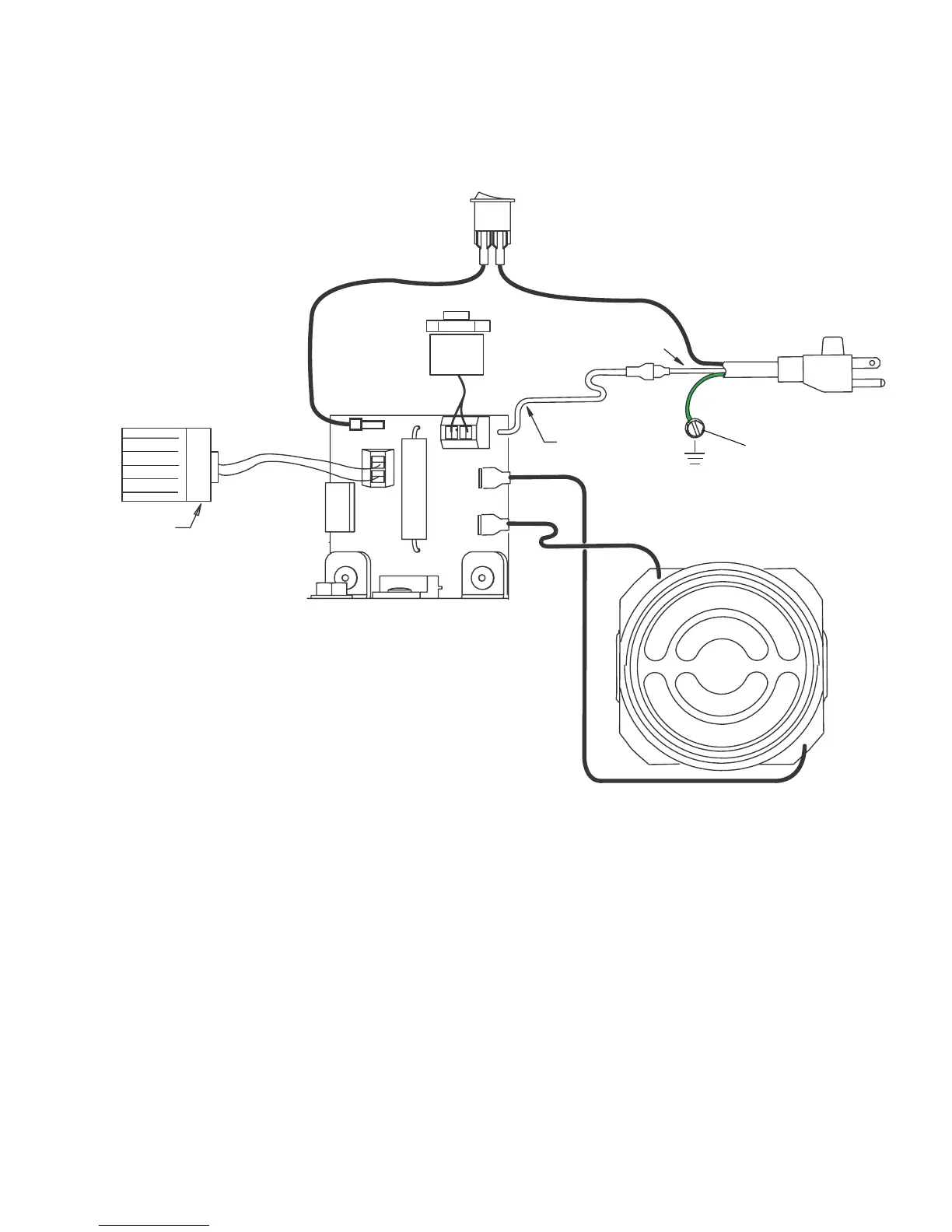

Wiring Diagrams
312667K 47
X5 and X7 Models 262800 (Series B, C, D) and 262805 (Series D, C)
WIRING DIAGRAM
WHITE
BOARD WIRE
AUTO PRIME
POWERCORD
BLACK WIRE
POWERCORD
WHITE WIRE
10A FUSE
POWERCORD
GREEN WIRE
CHASSIS
GROUND
ON/OFF
SWITCH
PRESSURE
SWITCH
ti15763a
Ref 67a
