Graco Magnum X7 User Manual

Setup
332689D 15

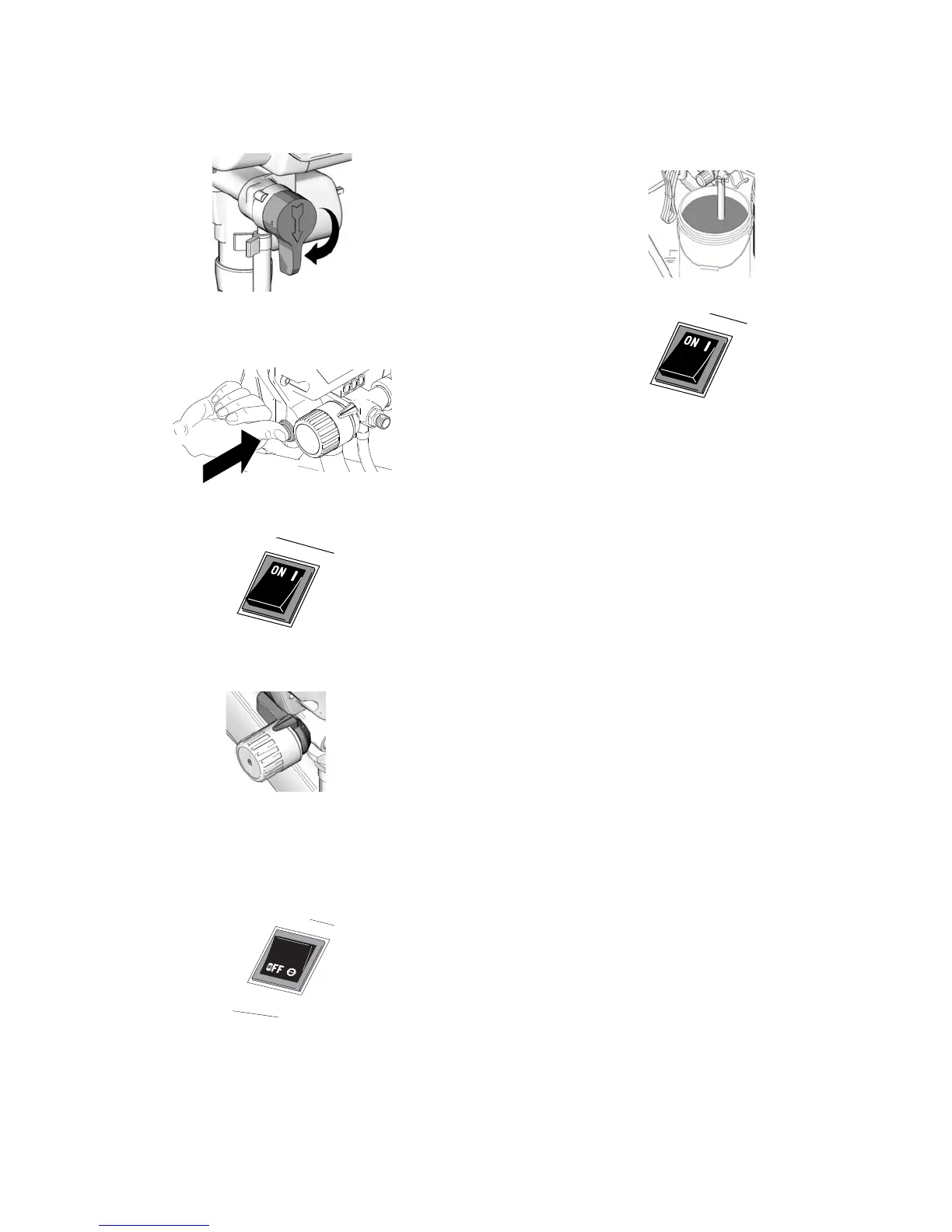

9. Move Prime/Spray Valve to PRIME.
10. Plug sprayer in a grounded outlet.
11. Push pump priming button two times.
12. Turn power switch ON.
13. Align setting indicator with Prime/Clean setting on
Pressure Control knob until pump starts, page 13.
14. When sprayer starts pumping, water and air bub-
bles will be purged from system. Allow fluid to flow
out of prime tube, into waste pail, for 30 to 60 sec-
onds.
15. Turn power switch OFF.
16. Transfer suction tube to paint pail and submerge
suction tube in paint.
17. Turn power switch ON.
ti9346a
ti15972a
X5 and X7 Only
ti5580a
ti9718a
ti2810a
ti9653a
PAINT
ti5580a

Graco Magnum X7 Specifications

General

Type	Airless Paint Sprayer
Maximum Pressure	3000 PSI
Maximum Hose Length	100 ft
Maximum Tip Size	0.017 in
Flow Rate	0.31 GPM
Hose Length	25 ft
Power Source	Electric
Voltage	120V
Recommended Annual Use	Up to 125 gallons per year
