Hose Reel
3A2244A 31

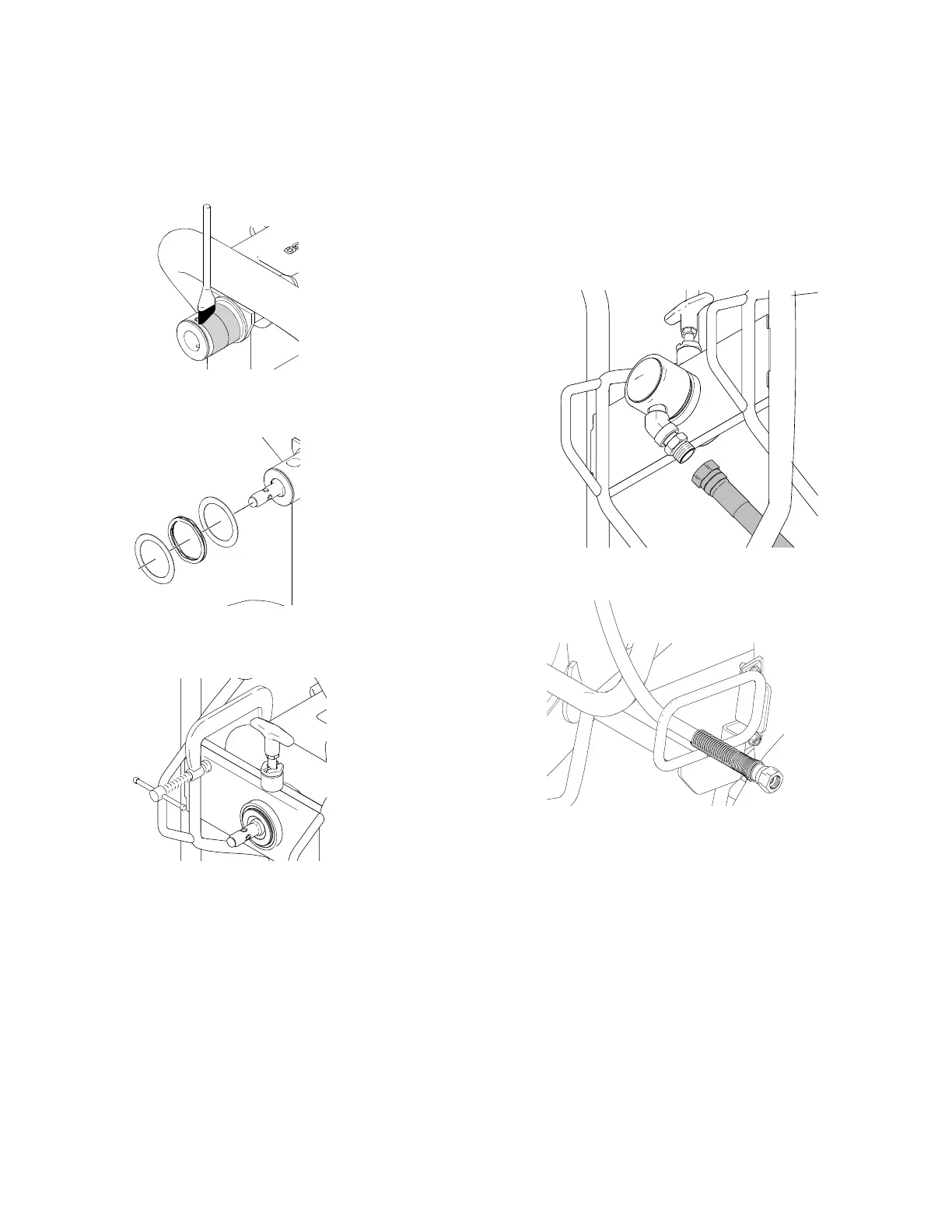

Installation
1. Grease shaft.
2. Make sure two washers and wave spring are on hub
before hose reel is installed.
3. Install hose reel onto frame. Place C-clamp on reel
and frame to allow snap ring to fit into place. Install
snap ring.
4. Install swivel.
5. Install E-clip and swivel cap.
6. Route hose through bottom rails and install hose to
swivel.
7. Turn hose reel clockwise to wrap up hose. Make
sure hose is routed through hose guide.
ti13537a
ti13545a
ti18436a
ti18462a
ti18438a
