Component Identification
6 311238G
Component Identification
Key for FIG. 1
A Air Inlet, 3/4 npt(f)
B Bleed-Type Master Air Valve
C Air Regulator Adjustment Knob
D Air Pressure Gauge
E Air Filter (out of view; located at rear of air control kit)
F De-icing Control
G Air Valve (behind cover)
H DataTrak module (see pages 7-12; not present on all
models)
J Runaway Solenoid (component 1)
K DataTrak Sensors (component 2)
L Air Valve Inlet Port, 3/4 npt(f)
M Safety Relief Valve

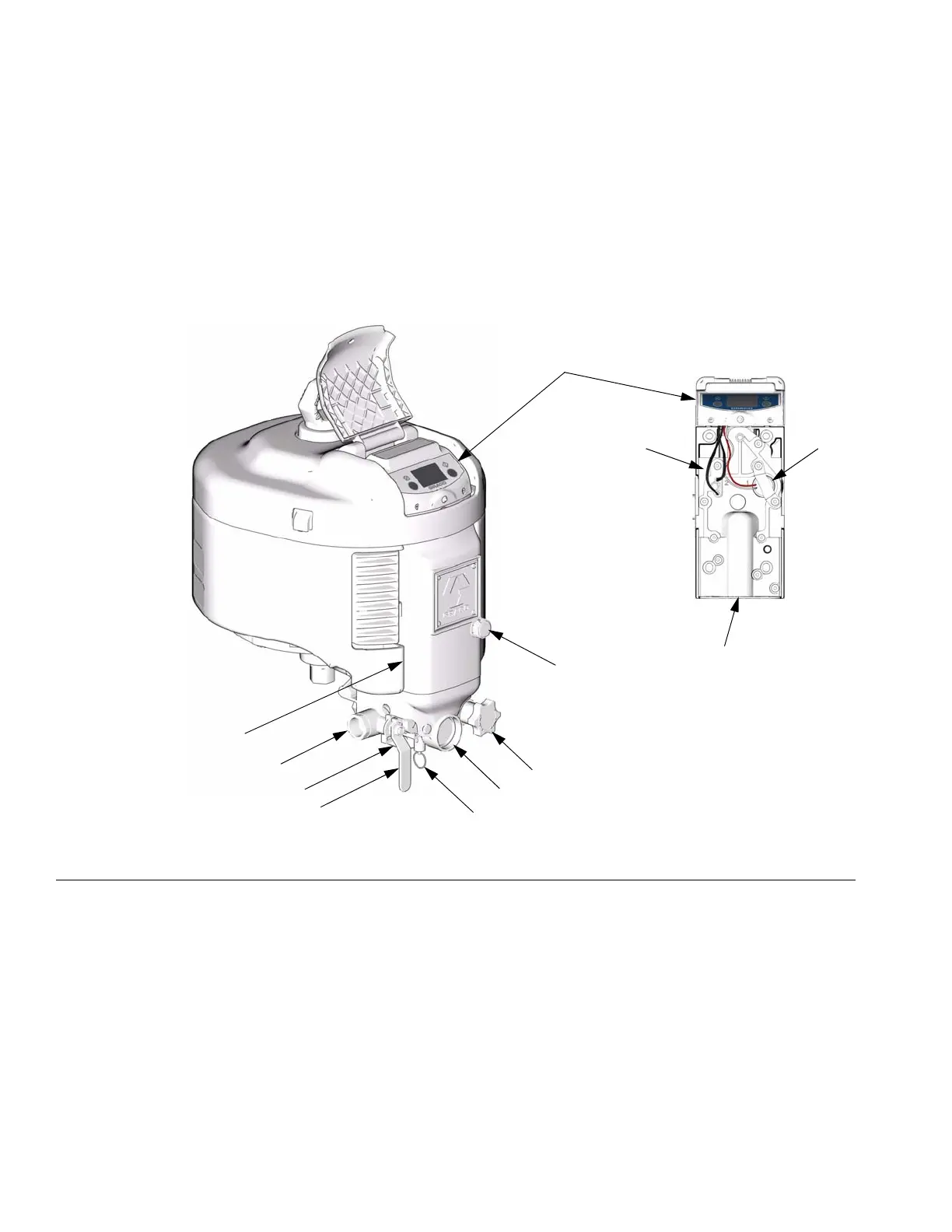

FIG. 1: Component Identification (Model Shown with DataTrak Module and Accessory Air Control Kit)
TI8233b
H
KJ
F
G
A
Detail With Air Valve
Cover Removed
TI7759a
B
C
D
E
L
M
