Grounding
311238G 7

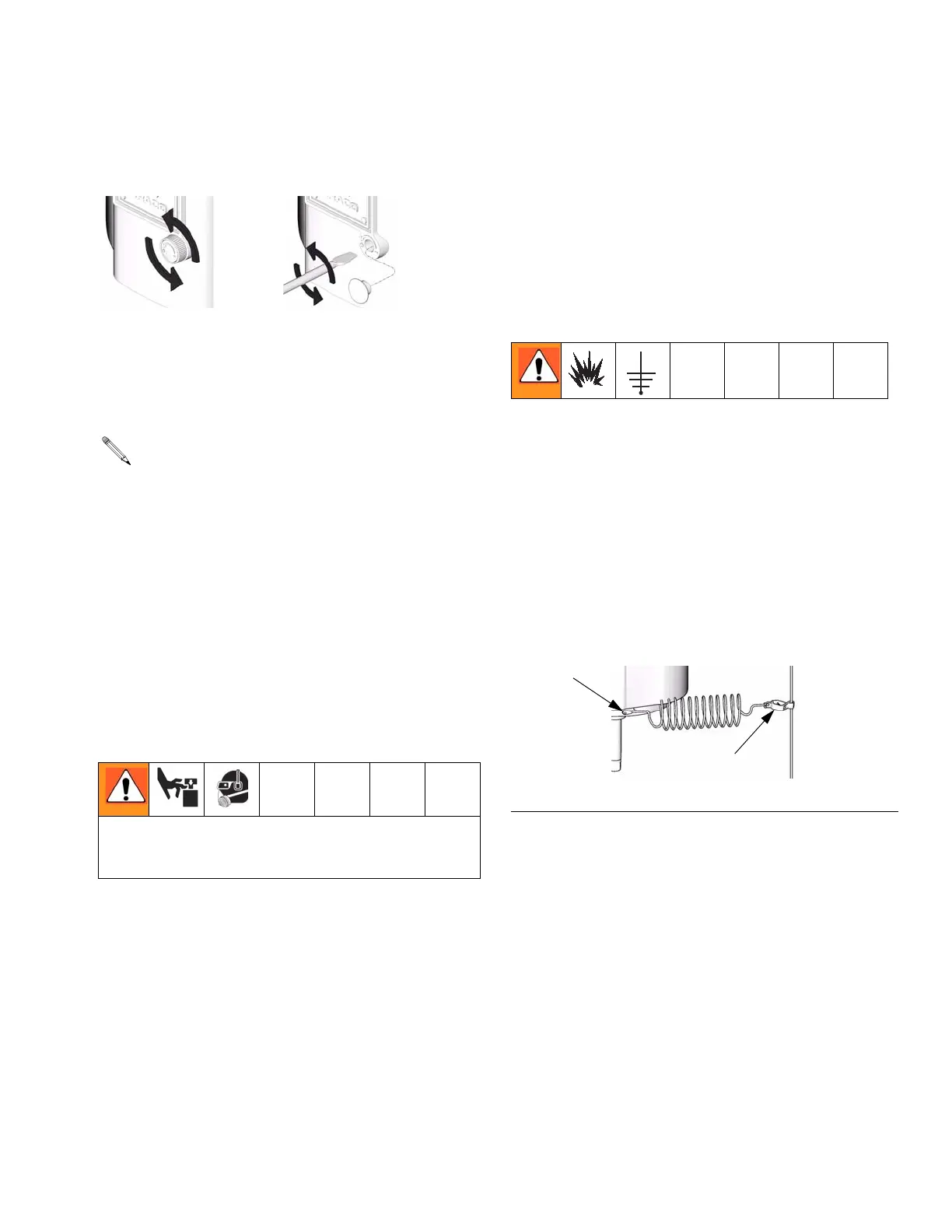

De-icing Control (F)
Open with knob or flat blade screwdriver to reduce icing.
Integrated Air Control Module
Accessory
Bleed-type Master Air Valve (B)
• Required in your system to relieve air trapped
between it and the air motor when the valve is
closed.
• Be sure the valve is easily accessible from the pump
and located downstream from the air regulator.
Air Regulator (C)
Adjusts air pressure to the motor and fluid outlet pres-
sure of pump. Locate it close to the pump. Install a
gauge (D) to read air pressure.
Safety Relief Valve (M)
Automatically opens to relieve air pressure, to prevent
pump overpressurization.
Air Filter (E)
Removes harmful dirt from compressed air supply.
Grounding
The equipment must be grounded. Grounding reduces
the risk of static and electric shock by providing an
escape wire for the electrical current due to static build
up or in the event of a short circuit.
See F
IG. 2. Use the ground screw (60) and lockwasher
(61) to attach Part No. 244524 Ground Wire (GW) at the
rear of the air motor. Tighten the screw securely. Con-
nect the other end of the ground wire to a true earth
ground.
Accessory Air Control Kits include air line compo-
nents in an integrated assembly. Order the kits sep-
arately. See manual 311239 for installation
instructions.
• NXT011 with locking air regulator and 110 psi
(0.76 MPa, 7.6 bar) relief valve
• NXT031 with locking air regulator and 75 psi
(0.51 MPa, 5.1 bar) relief valve
• NXT021 with non-locking air regulator and 110
psi (0.76 MPa, 7.6 bar) relief valve.
Trapped air can cause the pump to cycle unexpectedly,
which could result in serious injury from splashing or
moving parts.
TI8802aTI8159b
FIG. 2. Ground Wire
60, 61
TI8250a
GW
