Graco NAUTILUS SNUGLOCK LX - Page 39

39
3 Forward
Facing
Using With the SnugLock
®
Lock-Off:
Skip to step 9-B if not using the SnugLock
®
Lock-Off.

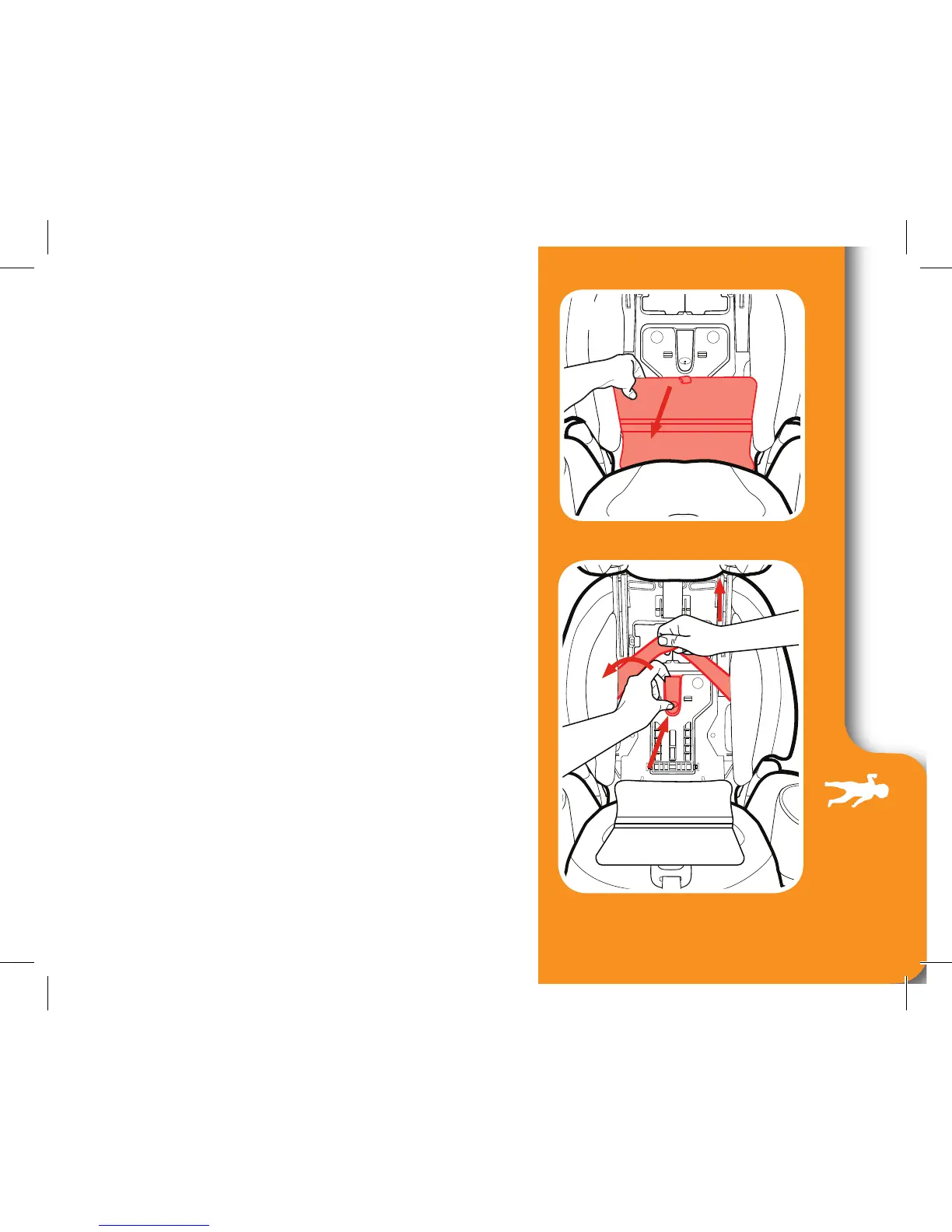

9A. Expose the SnugLock
®
Lock-Off
A. Loosen the harness straps.
B. Raise the headrest to the highest
position.
C. Unbuckle the chest clip.
D. Unbuckle the buckle.
E. Pull down the lower backrest pad to
expose the SnugLock
®
Lock-Off.
E
10A. Open the SnugLock
®
Lock-Off
Move the UAS strap above the
SnugLock
®
Lock-Off. Push the bottom of
the release, then pull the top of the tab out.
Open the SnugLock
®
Lock-Off.
