Graco NXT 25A641 - Parts; Air Motor Parts

Parts
12 3A3442B
Parts

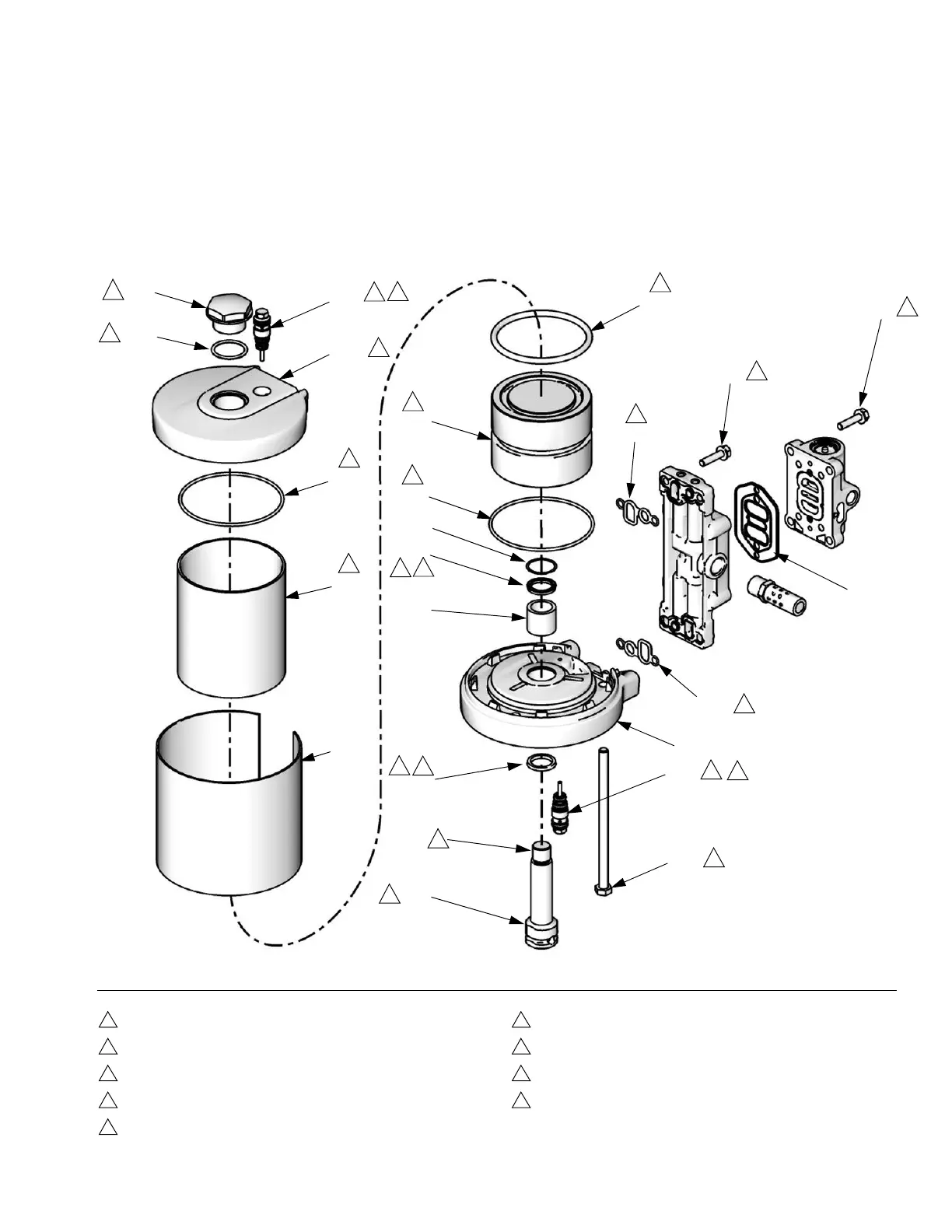

Air Motor Parts
Part No. 25A641, 2.5 in. (63.5 mm)
Apply adhesive (200) to threads, per directions on packet.
Lubricate inside surface of cylinder with grease (299).
Torque to 35-40 ft-lb (47-54 N•m).
Torque to 11-13 ft-lb (15-18 N•m).
Torque to 95-105 in-lb (10.7-11.9 N•m).
Lubricate with grease (299).
Lips face down.
Lips face up.
Torque to 30-35 ft-lb (41-47 N•m).
FIG. 8
TI16130a
201
213
211
202
203
204
219
209
208
207
205
206
210
212
202
208
211
213
217
218
207
230
231
