Setup
1. Prepare the paint according to the manufactur-
er’s
recommendations.
This is probably the most important step
toward trouble-free spraying!
Remove any skin that may have formed on the top
of the paint. If necessary
, thin the paint. Finally
,
strain the paint through a fine nylon mesh bag
(available at most paint dealers) to remove par
-
ticles that could clog the spray tip.
2. Install a spray tip and RAC IV tip guard on the
spray
gun as instructed in manual 307–848.
3. Connect
the hose and gun.
Connect the other end
of
the hose to the sprayer
.
4.
Check the hydraulic oil level.
Unscrew the fill cap
(5).
The oil should be 25 mm from the top
of the plate.
If the oil is low, fill as necessary with lightweight hy-
draulic oil; use only Graco Hydraulic Oil, Part No.
218–797.
Install the fill cap. See Fig. 1.
5. Check the electrical service which must be 230
VAC,
50 Hz, 10 Amp (minimum). Be sure the electri
-
cal
outlet is properly grounded.
Y
ou can use up to 30 m of 3 strand, 1.5 mm wires
extension cord. Longer extension cords may af
fect
the sprayer performance. Use more spray hose,
not longer extension cords.
Do not remove the third (grounding) prong of the
plug, and do not use an adapter
.
6. Plug in the sprayer . First be sure the ON/OFF
switch (11) is OFF and the pressure control (4) is
turned
fully
counterclockwise
. Plug the sprayer into
a
grounded outlet that is at least 6 m away from the
spray area to reduce the chance of a spark igniting
spray
vapors or dust particles.

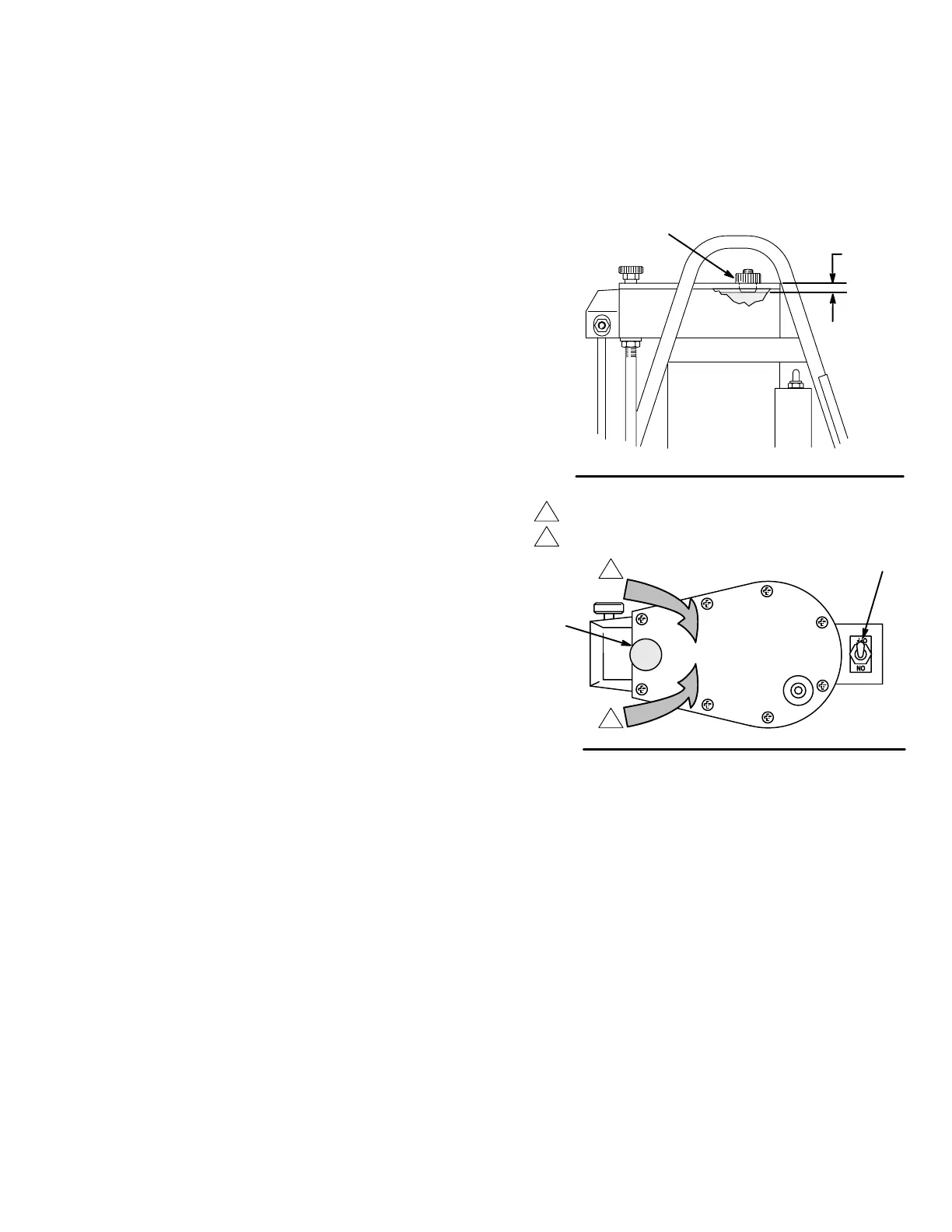

Fig. 1
25
mm
5
Fig.
2
11
4
Decrease
pressure (counterclockwise).
Increase
pressure (clockwise).
