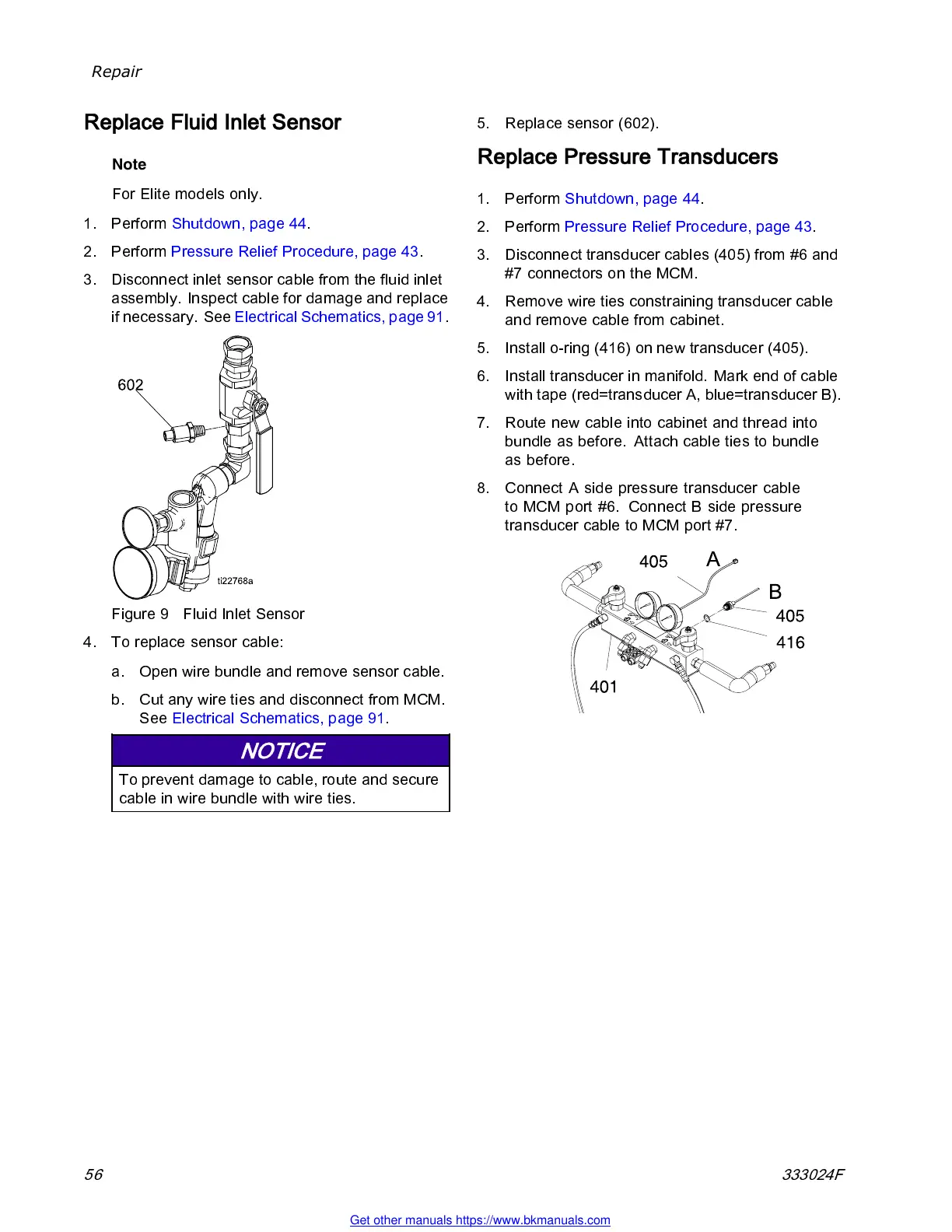

Repair
Replace Fluid Inlet Sensor
Note
For Elite models only.
1. Perform Shutdown, page 44.
2. Perform Pressure Relief Procedure, page 43.
3. Disconnect inlet sensor cable from the fluid inlet
assembly. Inspect cable for damage a nd replace
if necessary. See Electrical Schematics, page 91.
Figure 9 Fluid Inle t Sensor
4. To replace sensor cable:
a. Open w ire bundle an d remov e sen so r c ab le .
b. Cut any wire ti es and disco nne ct fro m MCM .
See Electrical Schematics, page 91.
NOTICE
To prevent damage to cable, route and secure
cable in wire bundle with wire ties.
5. Replace sensor (602).
Replace Pressure Transducers
1. Perform Shutdown, page 44.
2. Perform Pressure Relief Procedure, page 43.
3. Disconnect transducer cables (405) from #6 and
#7 connectors on the MCM.
4. Remove wire ties constraining transducer cable
and remove cable from cabinet.
5. Install o-ring (416) on new transducer (405).
6. Install transducer in manifold. Mark end of cable
with tape (red=transducer A, blue=transducer B).
7. Route new cable i nto cab inet and thread into
bundle as before. Attach cable ties to bundle
as before.
8. Connect A side pressure tran sducer cable
to MCM p ort # 6. Connect B side pressure
transducer cable to MCM port #7.
56 333024F
