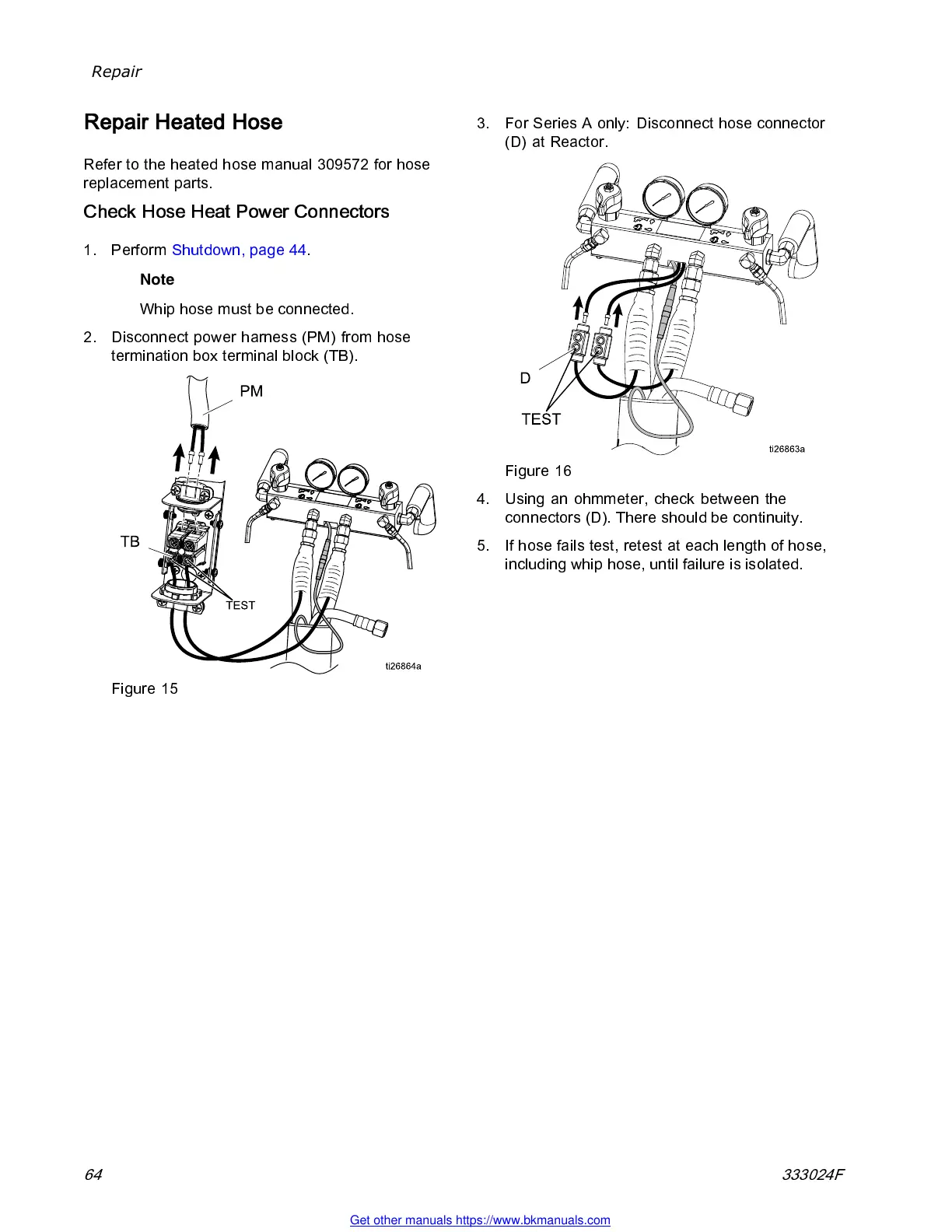

Repair
Repair Heated Hose
Refer to the heated hose manual 309572 for hose
replacement parts.
Check Hose Heat Power Connectors
1. Perform Shutdown, page 44.
Note
Whip hose m us t b e c on nec ted .
2. Disconnect power harness (PM) from hose
termination box terminal block (TB).
Figure 15
3. For Series A only: Disconnect hose connector
(D) at Reactor.
Figure 16
4. Using an ohmmeter, check between the
connectors (D). There should be continuity.
5. If hose fails test, retest at each length of hose ,
including whi p hose, until failure is isolated.
64 333024F
