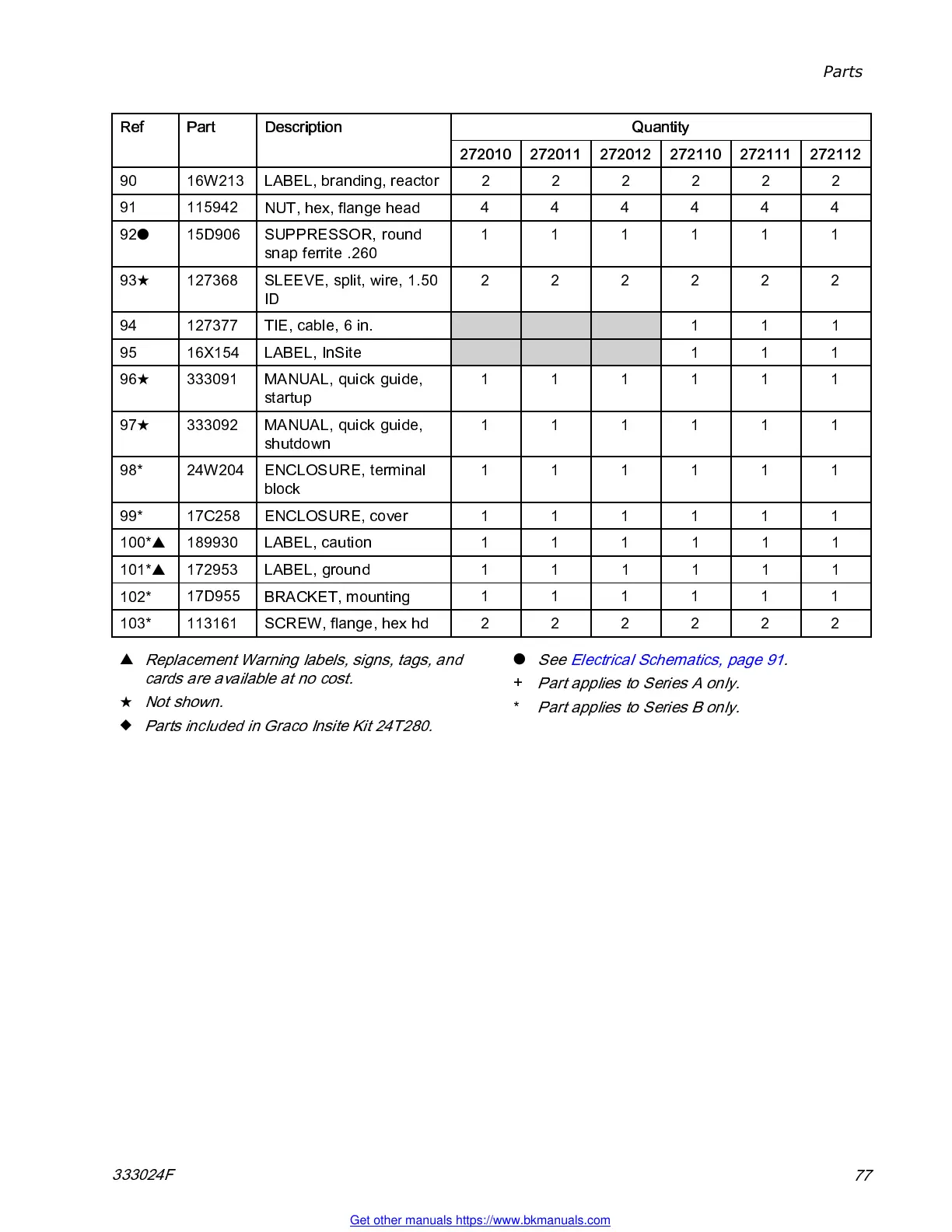

Parts
QuantityRef
Part Description
272010 272011 272012 272110 272111 272112
9016W213LABEL,branding,reactor222222
91 115942
NUT, hex, flange head
444444
92
15D906 SUPPRESSOR, round
snap ferrite .260
111111
93
★
127368
SLEEVE, split, wire, 1.50
ID
222222
94 127377 TIE, cable, 6 in. 1 1 1
95 16X154
LABEL, InSite
111
96
★
333091 MANUAL, quick guide,
startup
111111
97
★
333092 MANUAL, quick guide,
shutdown
111111
98*
24W204
ENCLO SURE, terminal
block
111111
99* 17C258 ENCLOSURE, cover
111111
100*
▲
189930LABEL,caution 111111
101*
▲
172953LABEL,ground 111111
102*
17D955
BRACKET, mounting
111111
103*
113161
SCREW , flange, hex hd
222222
▲
Replacement Warning labels, signs, tags, and
cards are available at no cost.
★
Not shown.
Parts included in Graco Insite Kit 24T280.
See Electrical Sche matics, page 91.
+
Part applies to Series A only.
*
Part applies to Series B only.
