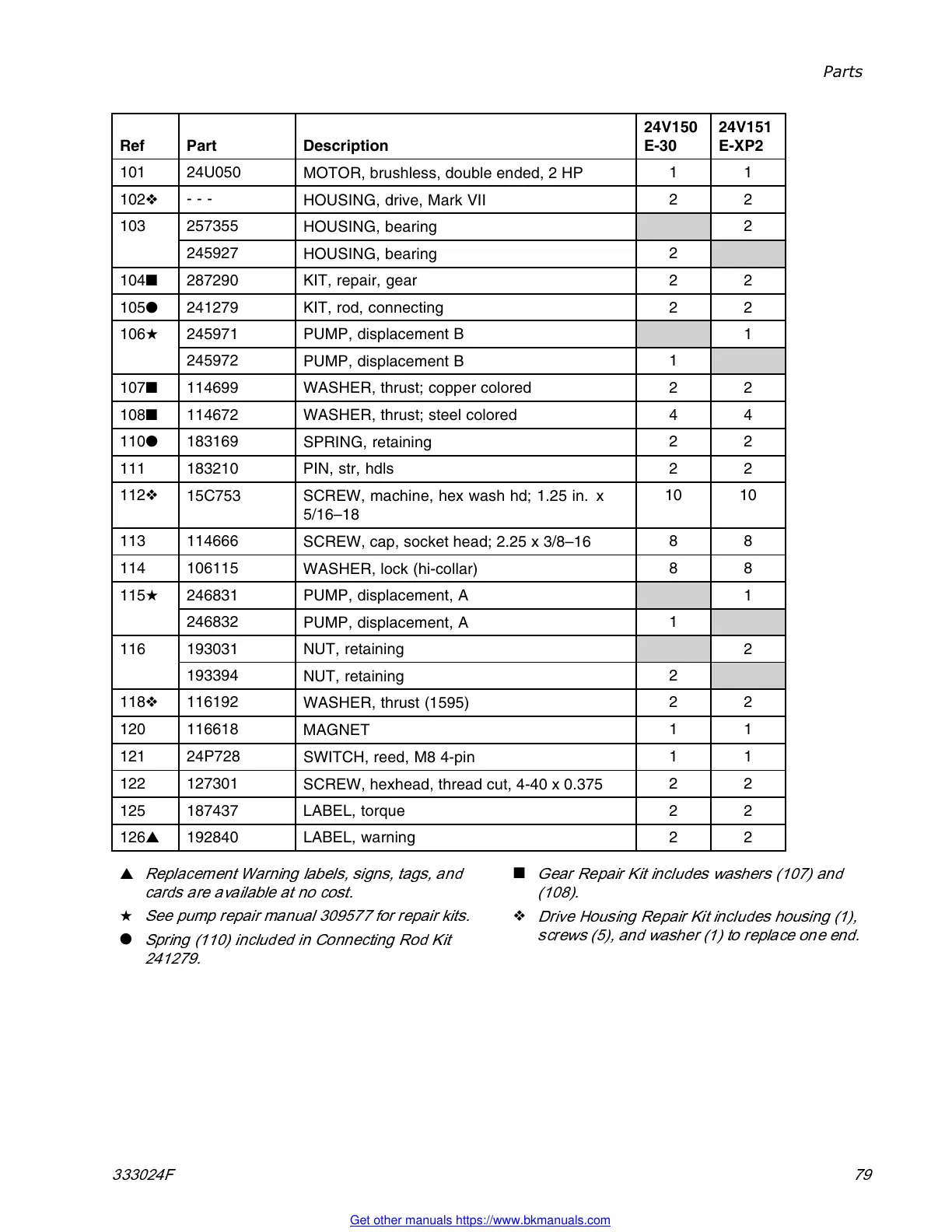

Parts
Ref Part Description
24V150
E-30
24V151
E-XP2
101
24U050
MOTOR, brushless, double ended, 2 HP
11
102
---
HOUSING, drive, Mark VII
22
257355
HOUSING, bearing
2103
245927
HOUSING, bearing
2
104 287290
KIT, repair, gear
22
105 241279
KIT, rod, connecting
22
245971
PUMP, displacement B
1
106★
245972
PUMP, displacement B
1
107 114699
WASHER, thrust; copper colored
22
108 114672
WASHER, thrust; steel colored
44
110 183169
SPRING, retaining
22
111 183210
PIN, str, hdls
22
112
15C753 SCREW, machine, hex wash hd; 1.25 in. x
5/16–18
10 10
113 114666
SCREW, cap, socket head; 2.25 x 3/8–16
88
114 106115
WASHER, lock (hi-collar)
88
246831
PUMP, displacement, A
1
115★
246832
PUMP, displacement, A
1
193031
NUT, retaining
2116
193394
NUT, retaining
2
118 116192
WASHER, thrust (1595)
22
120 116618
MAGNET
11
121
24P728
SWITCH, reed, M8 4-pin
11
122 127301
SCREW, hexhead, thread cut, 4-40 x 0.375
22
125 187437
LABEL, torque
22
126▲
192840
LABEL, warning
22
▲
Replacement Warning labels, signs, tags, and
cards are available at no cost.
★
See pump repair manual 309577 for repair kits.
Spring (110) included in Connecting Rod Kit
241279.
Gear Repair Kit in cludes washers (107) and
(108).
Drive Housing Repair Kit includes housing (1),
screws (5), and washer (1) to replace one end.
333024F 79
