Parts

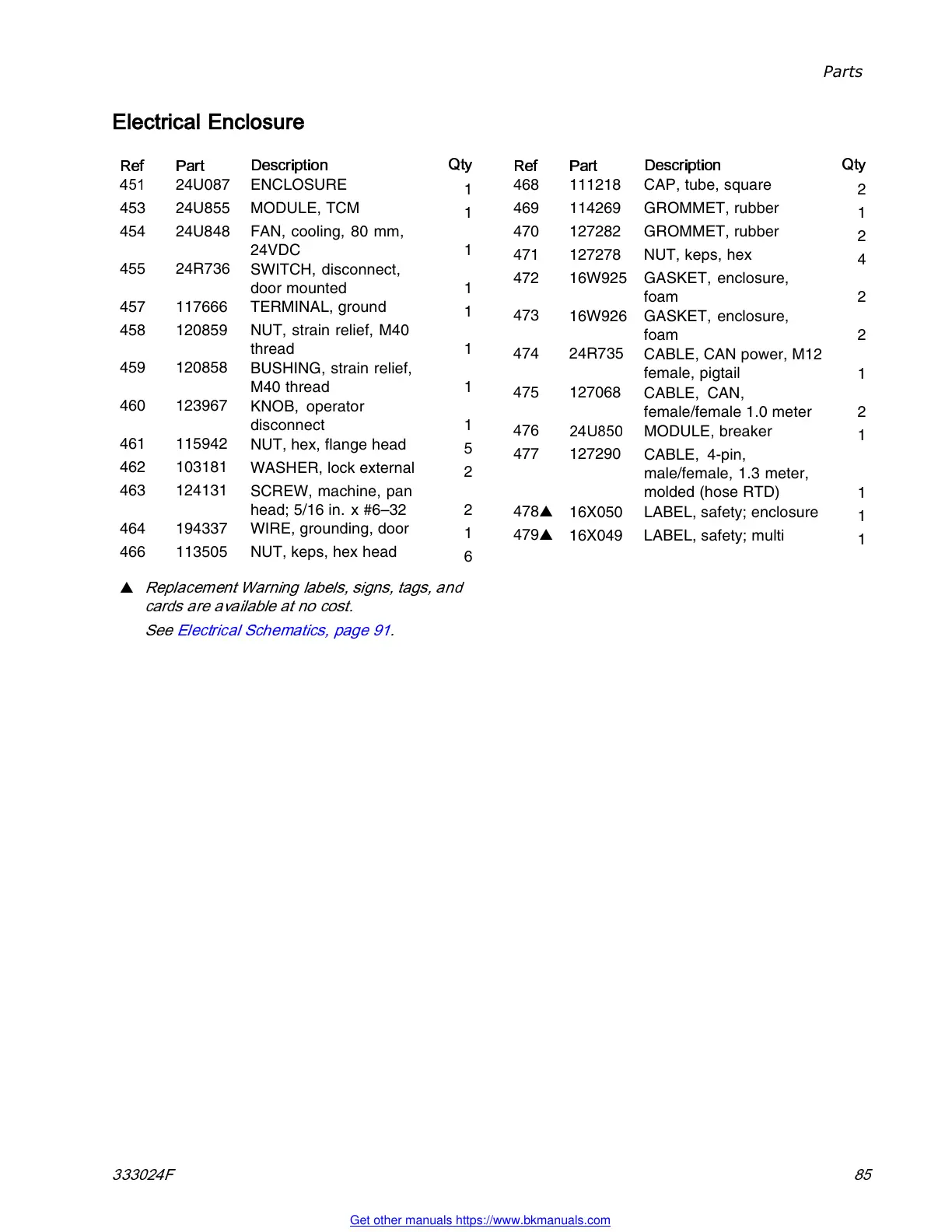

Electrical Enclosure
Ref Part
Description
Qty
451
24U087
ENCLOSURE
1
453
24U855
MODULE, TCM
1
454
24U848 FAN, cooling, 80 mm,
24VDC 1
455
24R736
SWITCH, disconnect,
door mounted 1
457 117666
TERMINAL, ground
1
458 120859
NUT, strain relief, M40
thread 1
459 120858
BUSHING, strain relief,
M40 thread 1
460 123967
KNOB, operator
disconnect 1
461 115942
NUT, hex, flange head
5
462 103181
WASHER, lock external
2
463 124131
SCREW, machine, pan
head; 5/16 in. x #6–32 2
464 194337
WIRE, grounding, door
1
466 113505
NUT, keps, hex head
6
Ref Part
Description
Qty
468 111218
CAP, tube, square
2
469 114269
GROMMET, rubber
1
470 127282
GROMMET, rubber
2
471 127278
NUT, keps, hex
4
472
16W925
GASKET, enclosure,
foam 2
473
16W926
GASKET, enclosure,
foam 2
474
24R735
CABLE, CAN power, M12
female, pigtail
1
475 127068
CABLE, CAN,
female/female 1.0 meter 2
476
24U850
MODULE, breaker
1
477 127290
CABLE, 4-pin,
male/female, 1.3 meter,
molded (hose RTD)
1
478▲
16X050
LABEL, safety; enclosure
1
479▲
16X049
LABEL, safety; multi
1
▲
Replacement Warning labels, signs, tags, and
cards are available at no cost.
See Electrical Schematics, page 91.
