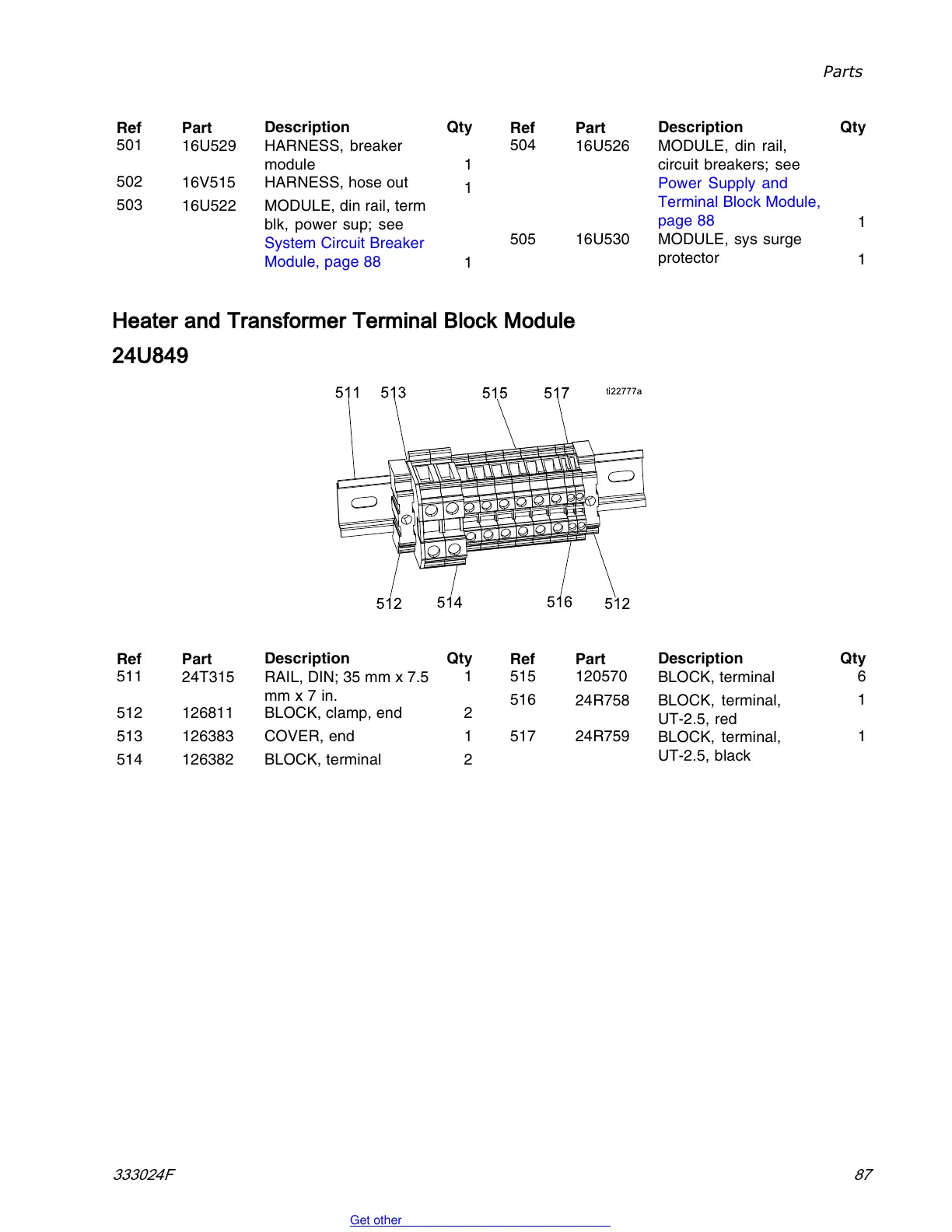

Graco Reactor 2 E-30 - Page 87

Parts
Ref Part
Description Qty
501
16U529
HARNESS, breaker
module 1
502
16V515
HARNESS, hose out
1
503
16U522
MODULE, din rail, term
blk, power sup; see
System Circuit Breaker
Module, page 88
1
Ref Part
Description Qty
504
16U526
MODULE, din rail,
circuit breakers; see
Power Supply and
Terminal Block Module,
page 88
1
505
16U530
MODULE, sys surge
protector
1
Heater and Transformer Terminal Block Module
24U849
Ref Part
Description Qty
511
24T315 RAIL, DIN; 35 mm x 7.5
mm x 7 in.
1
512 126811
BLOCK, clamp, end
2
513 126383
COVER, end
1
514 126382
BLOCK, terminal
2
Ref Part
Description Qty
515 120570
BLOCK, terminal
6
516
24R758
BLOCK, terminal,
UT-2.5, red
1
517
24R759
BLOCK, terminal,
UT-2.5, black
1
333024F 87
