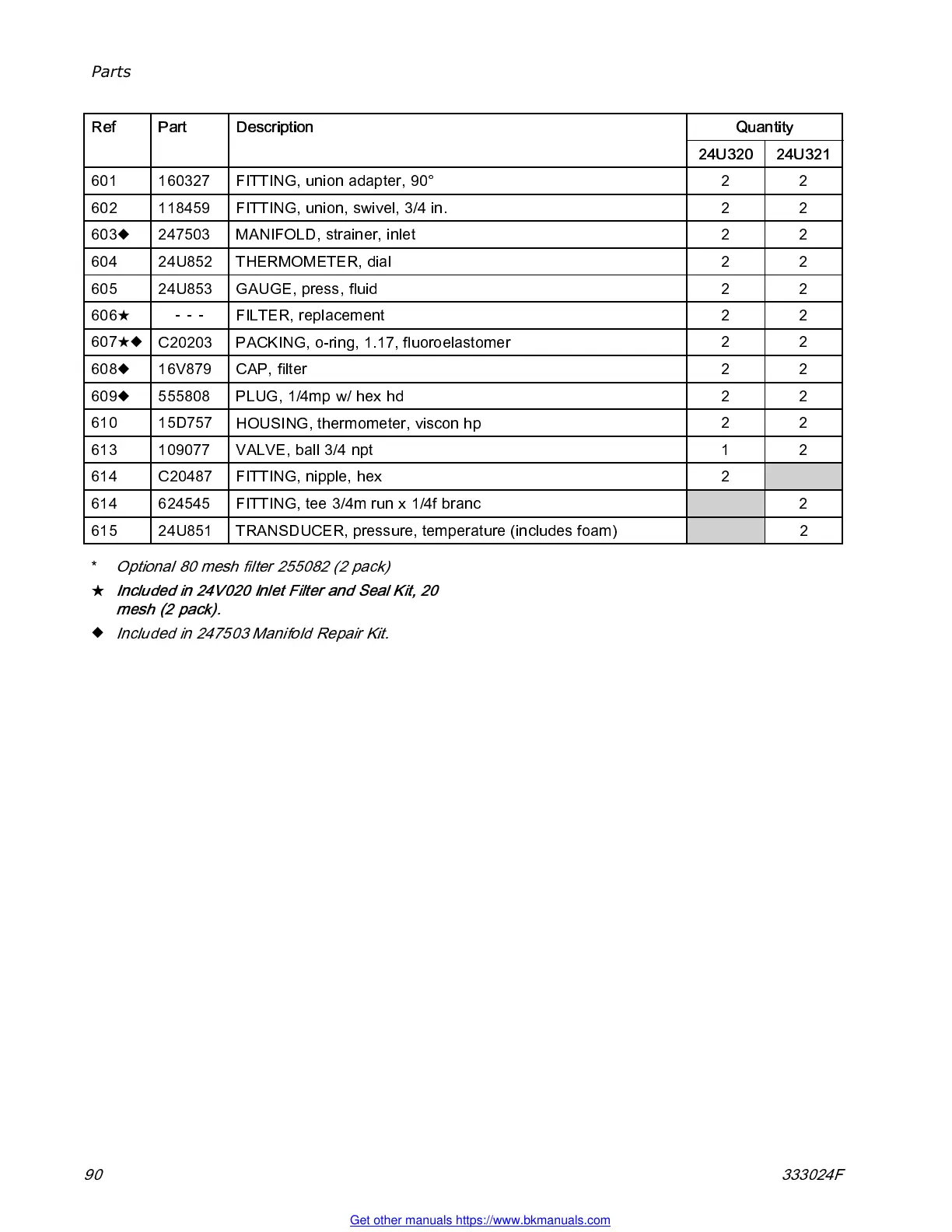

Parts
QuantityRef
Part Description
24U320 24U321
601 160327
FITTING, union adapter, 90°
22
602 118459
FITTING, union, swivel, 3/4 in.
22
603
247503
MANIFO LD, strainer, inlet
22
604 24U852 THERMOMETER, dial 2 2
605 24U853
GAUGE, press, fluid
22
606
★
---
FILTER, replacement 2 2
607
★
C20203 PACKING, o-ring, 1 .17, fluoroelast omer
22
608
16V879
CAP, filter
22
609
555808 PLUG, 1/4mp w/ h ex hd 2 2
610 15D757
HOUSING, thermometer, viscon hp
22
613 109077 VALVE, ball 3/4 npt 1 2
614
C20487 FITTING, nipple, hex
2
614 624545
FITTING, tee 3/4m run x 1/4 f branc
2
615 24U851 TRANSDUCER, pressure, temperature (includes foam) 2
*
Optional 80 mesh filter 255082 (2 pack)
★
Included in 24V020 Inlet Filter and Seal Kit, 20
mesh (2 pack).
Included in 247503 Manifold Repair Kit.
90 333024F
