Performance Charts
Performance Charts

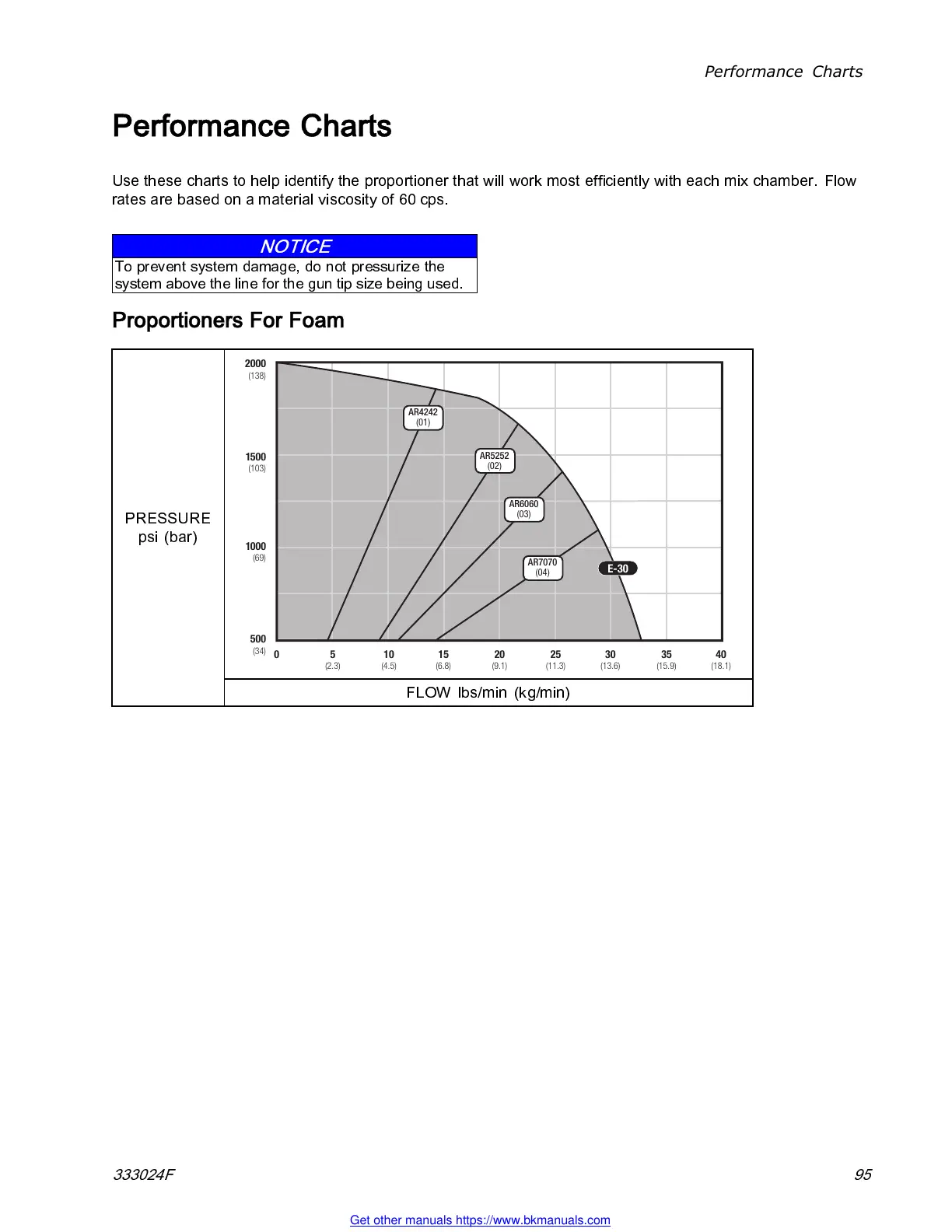

Use these charts to help identify the proportioner that will work most efficiently with each mix chamber. Flow
rates are based on a mate rial viscosity of 60 cps.
NOTICE
To prevent system damage, do not pressurize the
system above the line for the gun tip size being used.
Proportioners For Foam
AR6060
(03)
AR7070
(04)
AR5252
(02)
AR4242
(01)
2000
(138)
1500
(103)
1000
(69)
500
(34)
05
(2.3)
15
(6.8)
20
(9.1)
25
(11.3)
30
(13.6)
35
(15.9)
40
(18.1)
10
(4.5)
E-30
PRESSURE
psi (bar)
FLOW lbs/min (kg/min)
