Repair
32 309574L
Circuit Breaker Module
2. Relieve pressure, page 9.
3. Using an ohmmeter, check for continuity across cir-
cuit breaker (top to bottom). If no continuity, trip
breaker, reset, and retest. If still no continuity,
replace breaker as follows:
a. Refer to electrical diagrams and to T
ABLE 1. Dis-
connect wires and remove bad breaker.
b. Install new breaker and reconnect wires.
* Depending on model.
1. Turn main power OFF . Disconnect power
supply. Turn circuit breakers on to test.
WARNING
Read warnings, page 6. Wait 5 min for stored voltage
to discharge (E-30 and E-XP2 models only).
Table 1: Circuit Breakers, see FIG. 9
Ref. No. Size Component
806 50 A Hose/Transformer
Secondary Side
817A 20 A Transformer
Primary
804A 25 or 40 A* Heater A
804B 25 or 40 A* Heater B
817B 20 A Motor/Pumps

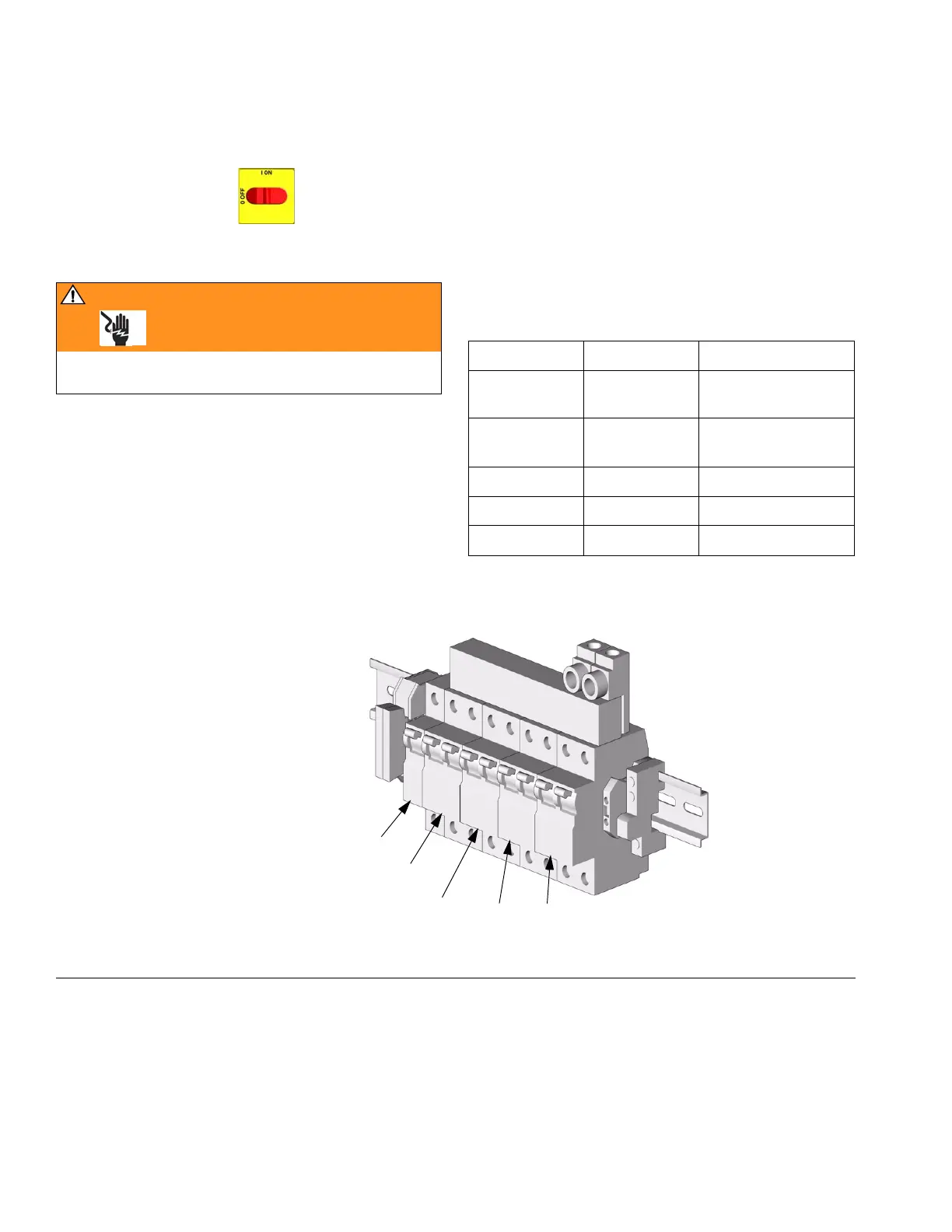

FIG. 9. Circuit Breaker Module
TI2514A
804A 817B
806
817A
NOTE: To reference cables and con-
nectors, see the electrical diagrams and
the parts drawings on pages 68-70.
804B
