Graco REACTOR E-XP1

Reactor Assembly
60 309574L

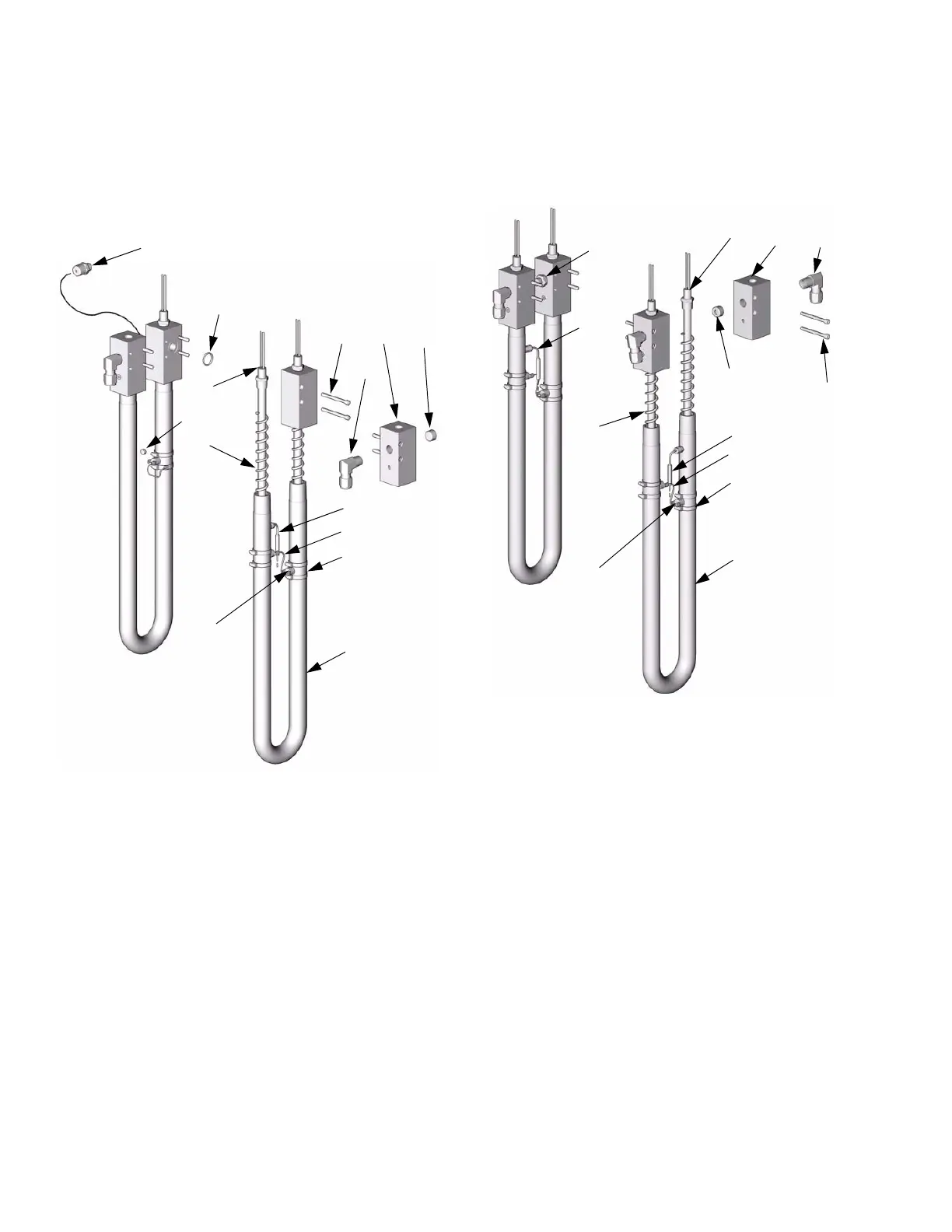

245963 7.65 kW Heater, for E-XP2 and E-30,
with 15.3kW of heat, Reactor (2 required)
245975 6 kW Heater, for E-20 Reactor
Ref.
No. Part No. Description Qty
201 15B134 HOUSING 2
202 15B135 MIXER 3
203 118426 CLAMP 6
204 15B133 CROSSOVER 2
205 15B132 MANIFOLD 2
206 107218 SCREW 8
207 15B138 HEATER, immersion;
2550 W; 230v
3
208 15B137 SWITCH, overtemperature 3
209 100139 PLUG 1
210 100361 PLUG 2
211 117484 THERMOCOUPLE 1
212 117466 O-RING 1
213 117532 ELBOW; 1/2 npt x 1/2 in. (13 mm) OD
tube
2
214 248187 RUPTURE DISK KIT; see 309969 1
86*
201
203
208
202
211
206
209
213
205
207
210
TI2578b
212
214
* Ref. No. 86 not included with heater.
Order separately, see page 57.
Ref.
No. Part No. Description Qty
201 15B134 HOUSING 2
202 15B135 MIXER 4
203 118426 CLAMP 8
205 15B132 MANIFOLD 4
206 107218 SCREW 8
207 15B140 HEATER, immersion;
1500 W; 230v
4
208 15B137 SWITCH, overtemperature 4
210 100361 PLUG 2
211 117484 THERMOCOUPLE 2
213 117532 ELBOW; 1/2 npt x 1/2 in. (13 mm) OD
tube
4
214 248187 RUPTURE DISK KIT; see 309969 2
86*
201
203
208
202
211
206
213205207
210
TI2512b
211
214
* Ref. No. 86 not included with heater.
Order separately, see page 57.
