Graco REACTOR E-XP1

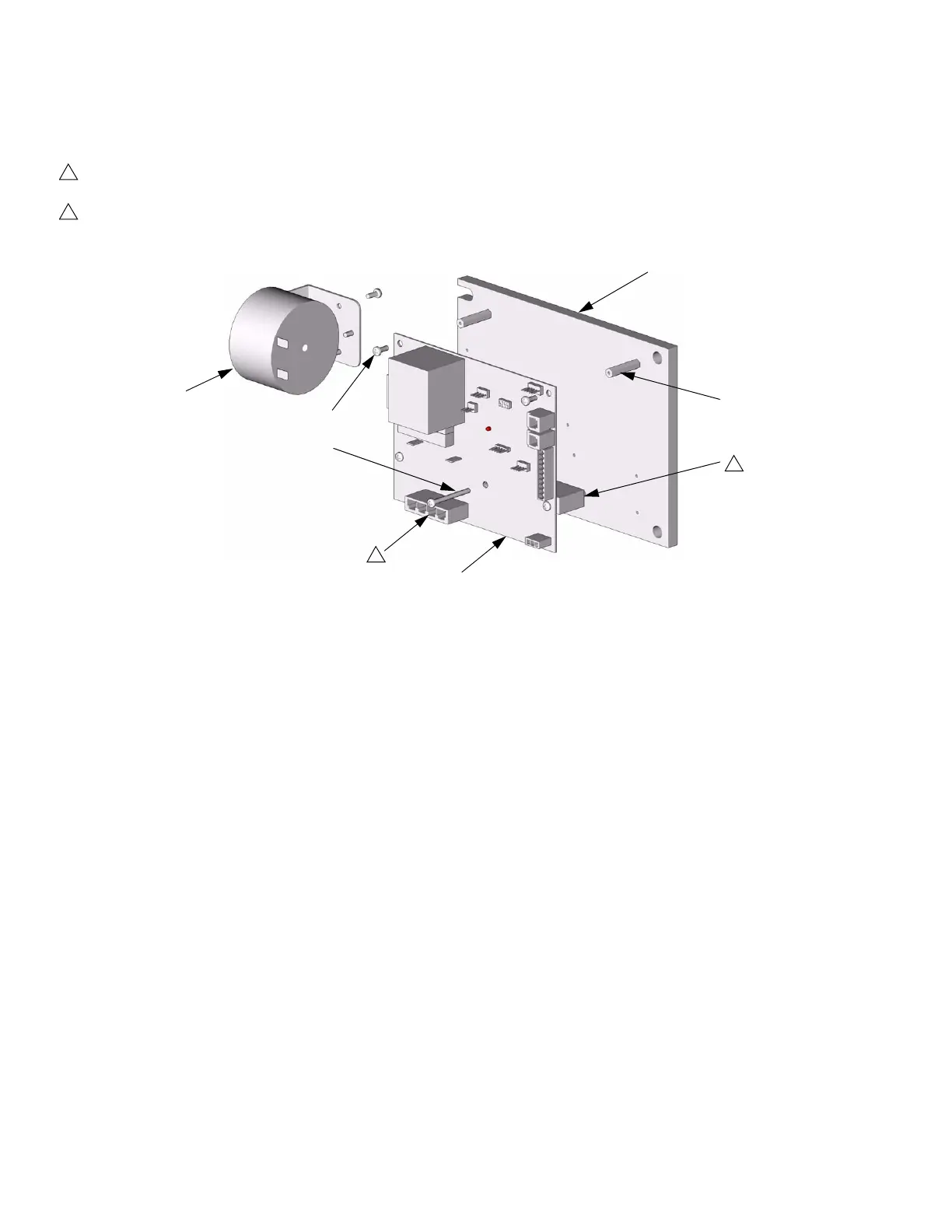

Reactor Assembly
66 309574L
245981 Motor Control, for E-30 and E-XP2
TI2576A
601
602
605
603
604
607
2
Motor harness (609) plugs in here.
2
1
Apply 110009 thermal heatsink compound to mating surfaces.
1
Ref.
No. Part No. Description Qty
601 15B297 HEAT SINK 1
602 246196 BOARD, motor control 1
603 104590 SCREW, machine;
6-32 x 3/8 in. (10 mm)
6
604 117526 SPACER 3
605 117683 SCREW, 6-32 x 1-1/2 in. (38 mm) 2
607 15C007 INDUCTOR 1
609 15B408 CABLE, harness, motor 1
