Graco Reactor H-25 Series - 7.65 Kw Single Zone Heater

Parts
312063Z 61

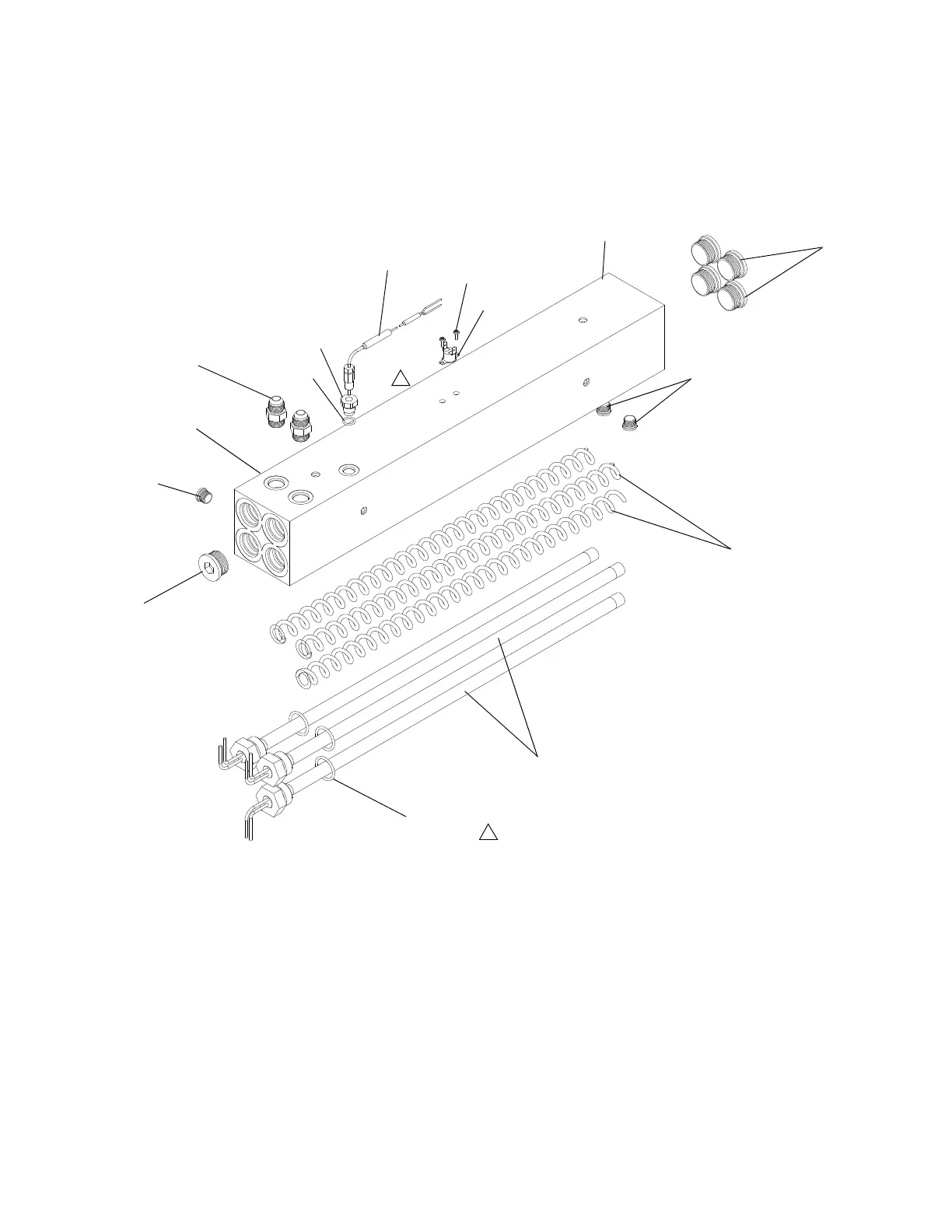

7.65 kW Single Zone Heater
(Two Per Machine)
Part 247813
303
301
304
309
307
308
310
311
305
306
1
304
313
313
r_247813_312063
Apply 110009 thermal heatsink compound.
1
315
314
Ref. Part Description Qty
301 ---- HOUSING, heater
1
303 121309 ADAPTER, 3/4 SAE-ORB x
1/2 in. JIC
2
304 15H304 PLUG
3
305 15H306 ADAPTER, thermocouple
1
306 120336 O-RING; fluoroelastomer
1
307 16A110 HEATER, immersion; 2550 W
3
308 15B137 SWITCH, overtemperature
1
309 15B135 MIXER, immersion heater
3
310 117484 SENSOR
1
311 100518 SCREW, machine, pan hd
2
313 15H305 PLUG, hollow
5
314 295607 PLUG; not shown
1
315 124132 O-RING
3
Ref. Part Description Qty
