Graco Reactor H-25 Series - Temperature Control

Parts
64 312063Z

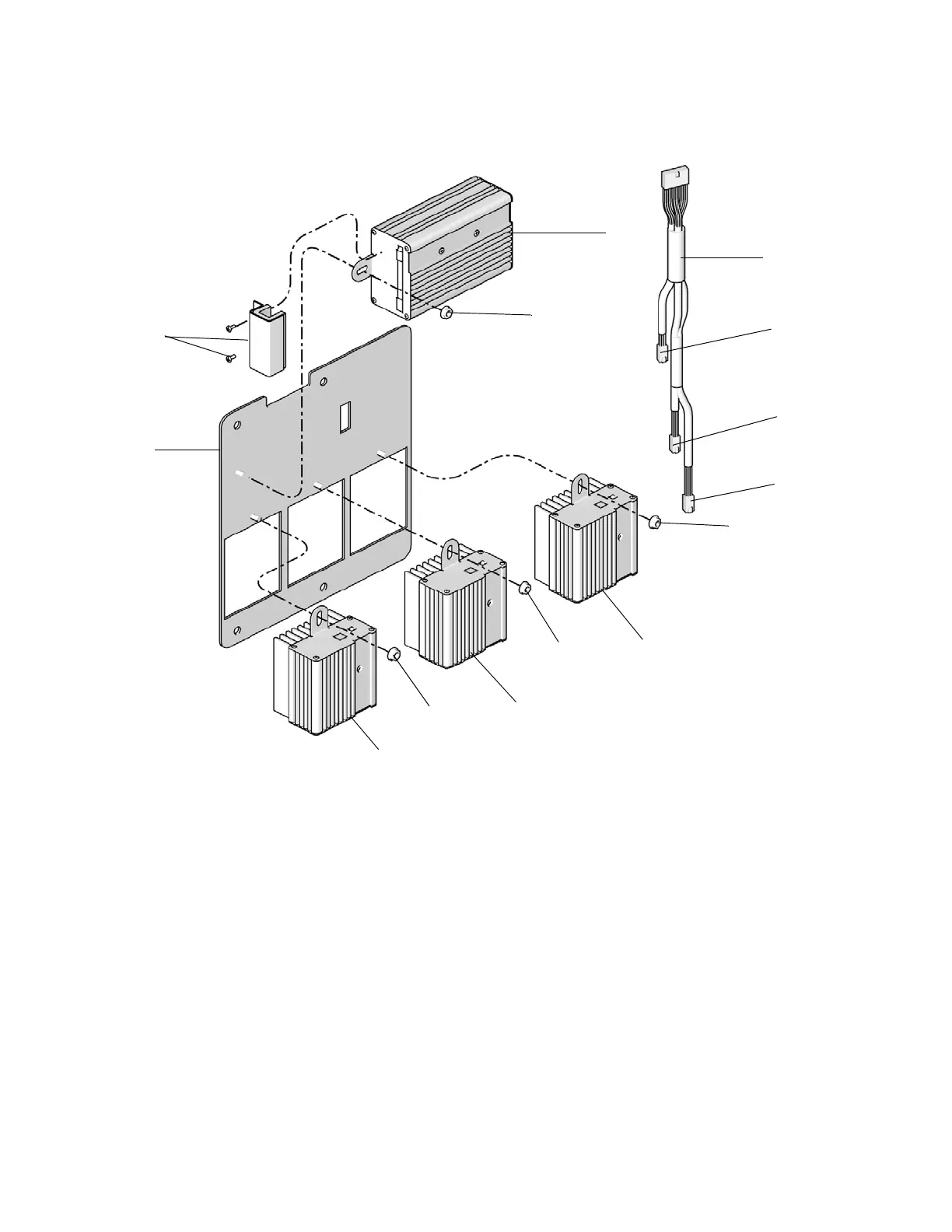

Temperature Control
TI9843a
602
604
601
603
604
604
604
603
603
605
To B
Heater
Module
To A
Heater
Module
To Hose
Heater
Module
606
Ref. Part Description Qty.
601 247772 PANEL, module mounting
1
602 247827 HOUSING, control module
1
603 247828 HOUSING, heater module
3
604 115942 NUT, hex
4
605 247801 CABLE, communication
1
606 247825 KIT, cover, connector with screws
1
