Graco RTX 650 - Page 12

NO
See step 2. Do you have
over 100 AC volts?
YES
See step 1.Do you have
over 100 AC volts?
YES
Repair or
replace the
power Cord.
See pages 00, for the steps.
Replace the
power switch.
NO
See step 4.Do you have
over 100 AC volts?
NO
NO
YES

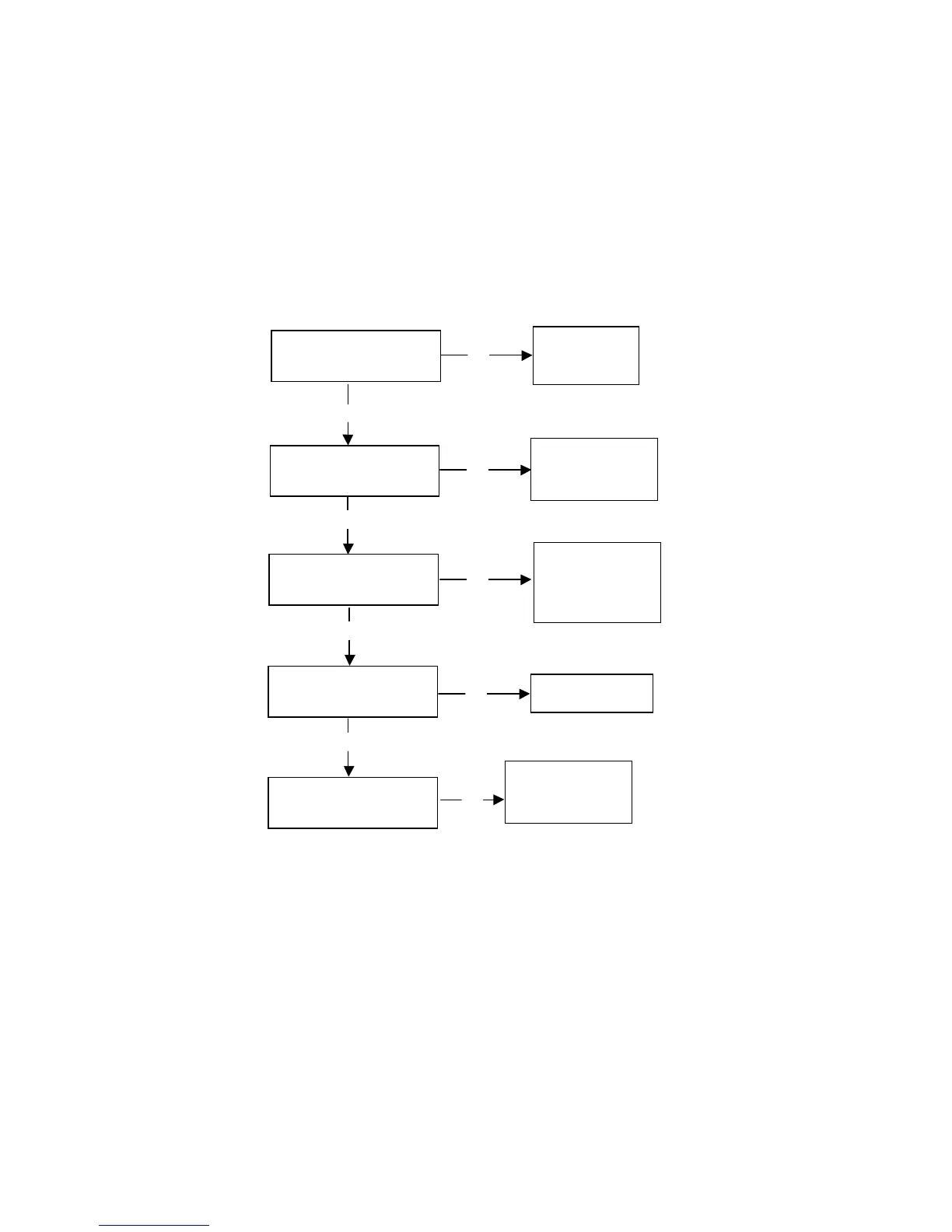

RotoFlex Motor or Compressor motor will not run.
RTX 750 and RTX 1000
See step 3.Do you have
over 100 AC volts?
Repair or
r
eplace Black wire
from power cord to
power switch.
NO
YES
See step 5. Do you have
over 100 AC volts?
Repair or
r
eplace Black
wire or wire splice.
Repair or
r
eplace White
wire or wire splice.
