Graco RTX 650 - Page 13

CAPACITOR
BLACK
BLACK
BLUE
YEL
LOW
GROUND
GREEN
GREEN
BLACK
BLACK
WHITE
WHITE
BLACK
GREEN
POWER
SWITCH
SELECTOR
SWITCH
AIR COMPRE
SSOR
POWER
CORD
MOTOR
BLUE
WHITE
WHITE
BLACK
GREEN
POWER
CORD

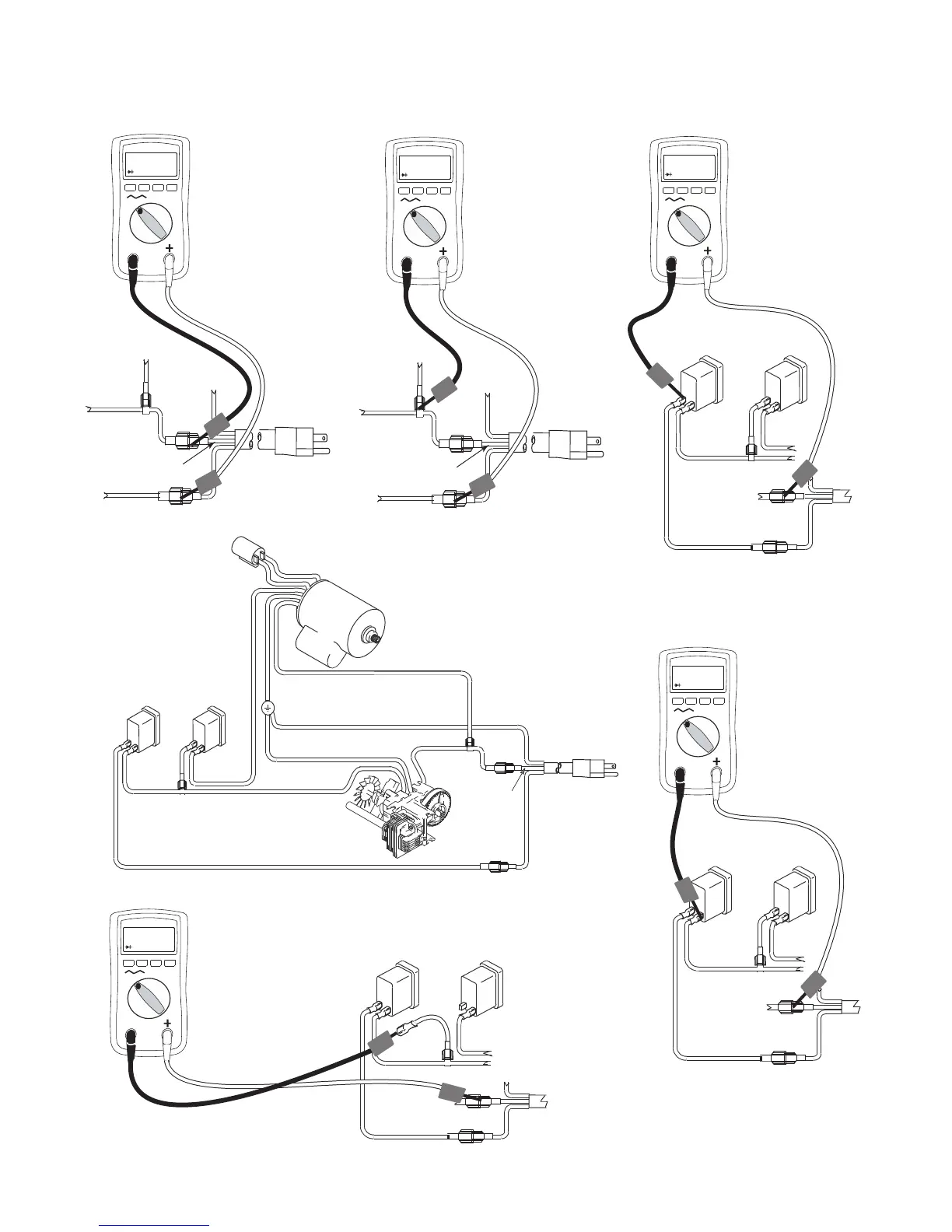

Step 1
Cord plugged in.
Wires connected.
Meter on AC Volts
110-120 AC
V
--
++
--
WHITE
WHITE
BLACK
GREEN
POWER
CORD
Step 2
Cord plugged in.
Wires connected.
Meter on AC Volts
110-120 AC
V
--
++
--
Step 3
Power switch ON.
Cord plugged in.
Wires connected
to power switch.
Meter on AC Volts
110-120 AC
V
--
--
POWER
SWITCH
SELECTOR
SWITCH
BLACK
BLUE
WHITE
BLACK
POWER
CORD
++
Step 4
Power switch ON.
Cord plugged in.
Wires connected
to power switch.
Meter on AC Volts
110-120 AC
V
--
POWER
SWITCH
SELECTOR
SWITCH
BLACK
BLUE
WHITE
BLACK
POWER
CORD
++
--
Step 5
Power switch ON.
Cord plugged in.
Black Wire unplugged
from Selector switch.
Meter on AC Volts
110-120 AC
V
--
POWER
SWITCH
SELECTOR
SWITCH
BLACK
BLUE
WHITE
BLACK
POWER
CORD
++
--
RotoFlex Motor or Compressor motor will not run.
