Remove the cup assembly and Pump
Filter from the sprayer. Set sprayer
on a rag.
Cleanup and Storage
2
Remove Cup Lid and pour extra
paint back into paint can. Clean
all parts with warm water.
3
Circulate Cleaning Fluid:
Fill clean cup assembly half-full of
water and reattach to sprayer.
4a. Verify the Prime Knob is pointed
down to the PRIME position.
4b. Set Speed Control to highest
setting available.
4c. Turn the sprayer upside down
and trigger for 15 seconds.
4
Repeat Cleaning steps as needed
until sprayer is clean.
• Turn Prime Knob down to PRIME
position and unplug power cord.
• Remove Spray Tip. Clean Spray Tip,
Spray Tip Guard and Pump Filter with
warm water and an old toothbrush.
Reinstall Spray Tip and turn 90° for
storage. Empty remaining fluid from cup.
Wipe paint off outside of sprayer using a
soft cloth moistened with warm water.
6
Refill the cup following SETUP
Steps 3 & 4. Then follow STARTUP
instructions to proceed.
Reinstall the Pump Filter into the
pump. Set the sprayer on a rag.
Turn Prime Knob down to PRIME
position to relieve system pressure.

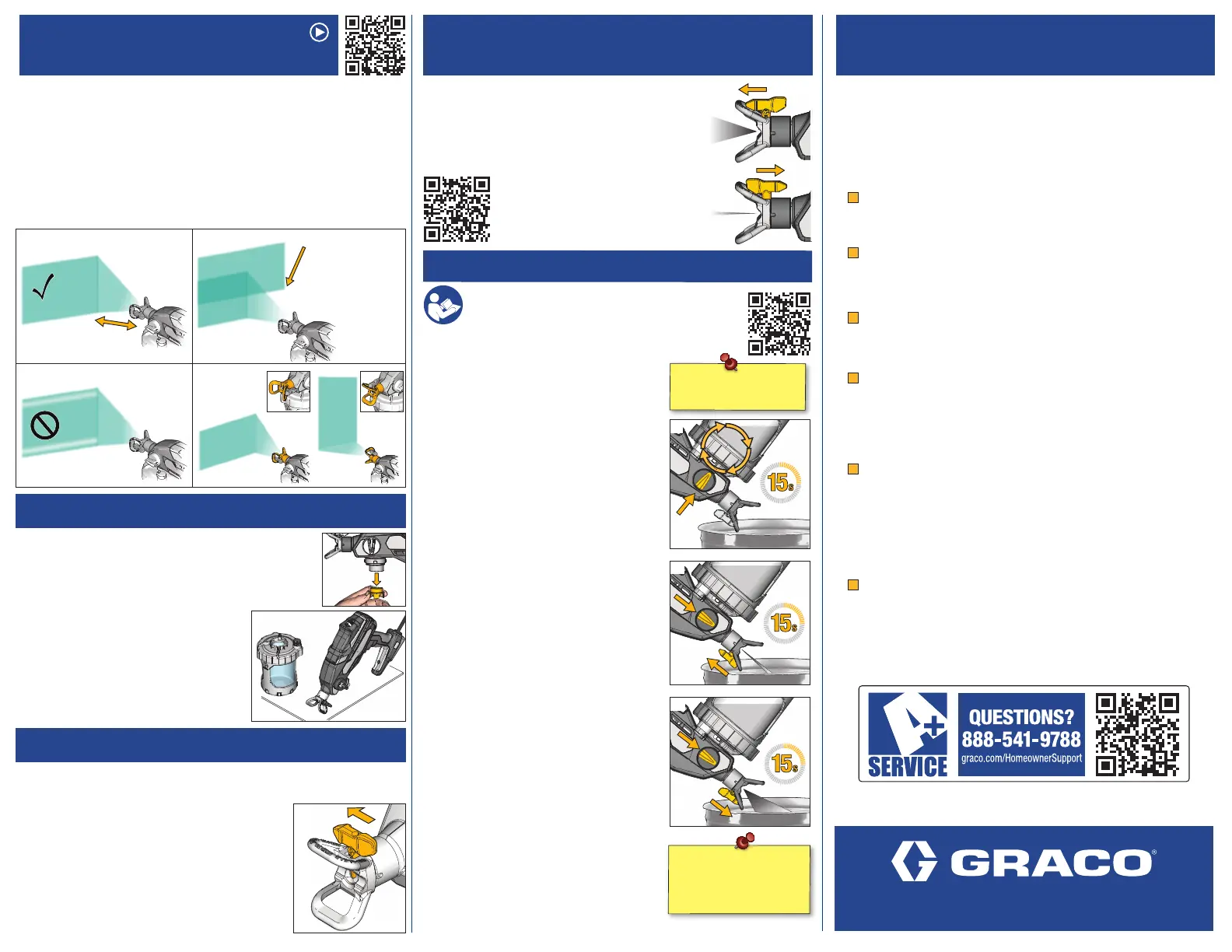

SPRAYING
CUP REFILLS
PAUSE IN SPRAYING
REVERSIBLE SPRAY TIPS TROUBLESHOOTING
Cleanup instructions are for water-based paints
only. See Owners Manual for oil-based cleanup and
for complete cleaning instructions.
1
Turn Prime Knob down to PRIME
position to relieve system pressure.
1
Remove the cup assembly from the
sprayer. Remove the Pump Filter and
clean debris from the filter screen.
Spray Cleaning Fluid:
Refill cup assembly half-full of
clean water and reattach to sprayer.
5a. Turn the Prime Knob forward to
SPRAY position and Spray Tip to the
UNCLOG position.
5b. Turn the sprayer upside down and
trigger into a waste pail
for 15 seconds.
5c. Turn the Spray Tip to the SPRAY
position and trigger into a waste
pail for 15 seconds.
5
Note: Store Sprayer
filled with Pump Armor
™
(included) storage fluid
for trouble-free startup.
3A9103 Revision A, March 2022, Original Instructions. This Quick Guide contains English.
Source Manual: 3A9014, MM 3A9014. Copyright 2022
CLEANUP & STORAGE
If you encounter a Spray Tip clog,
Reverse the Spray Tip and spray into
a waste area to remove the clog.
Return the Spray Tip to spray position
to spray. See Owners Manual.
Your sprayer is shipped with Wide and Narrow Spray Tips.
• Blue Spray Tips are for spraying Paint and should
be used with the blue Pump Filter.
• Green Spray Tips are for spraying Stain and
should be used with the green Pump Filter.
(Green not included with all models)
3
4
2
1
Turn Prime Knob down to PRIME position to
relieve presure. Unplug power cord.
2
Turn Spray Tip 90˚ to seal orifice
from drying out.
Paint will dry quickly and cause clogs in the sprayer. Follow these
steps whenever you pause spraying for 5 minutes to 2 hours.
3
Ensure sprayer is fully sealed.
Ensure VacuValve is closed and cup is
attached to sprayer with all air evacuated.
Make certain the sprayer is plugged into a grounded and
functional power source.
To avoid pump damage, NEVER run the sprayer
for more than 5 seconds without pumping fluid.
If the sprayer does not spray, try the steps below:
Verify Cup Lid is tight. An under tightened Cup Lid will allow
air to seep into the FlexLiner and cause a loss of prime.
• Add Seal Lube (included) to the Cup Lid gasket to
ensure an airtight seal.
Remove the Pump Filter from the pump inlet. Clean both
sides of the Pump Filter.
• While the Pump Filter is removed, inspect and
ensure no dried paint debris is collected inside
the pump inlet.
Make certain the Spray Tip is not clogged. See Owners
Manual for instructions on Unclogging Spray Tips.
Repeat STARTUP Procedure to ensure all air is evacuated
from the FlexLiner.
If the Sprayer sprays when upside down but not upright,
there is likely still an air leak into the cup. Try replacing
the FlexLiner and the VacuValve. (Extra of both included
with sprayer)
2
Good Spray Pattern
Pressure
too low
Tip Wear
TAILS - Gaps at edges
Spray Tip
Orientation
Horizontal
Vertical
12 in. (30 cm)
from surface
Release Trigger
before end of stroke.
Pull Trigger after
starting stroke.
Aim gun here to
overlap stroke by 50%
Set Speed Control to the lowest available setting.
1
SCAN TO WATCH
SPRAYING VIDEO
Note: Be sure to clean
inside the VacuValve!
SPRAY
UNCLOG
Pointing at a piece of scrap cardboard, pull the Trigger
to test the spray pattern. Adjust the following to achieve
desired spray pattern:
• Speed Control
• Distance from surface
• Hand Speed
• Spray Tip Orientation
