Component Identification and Function
8194A
7148B
03008

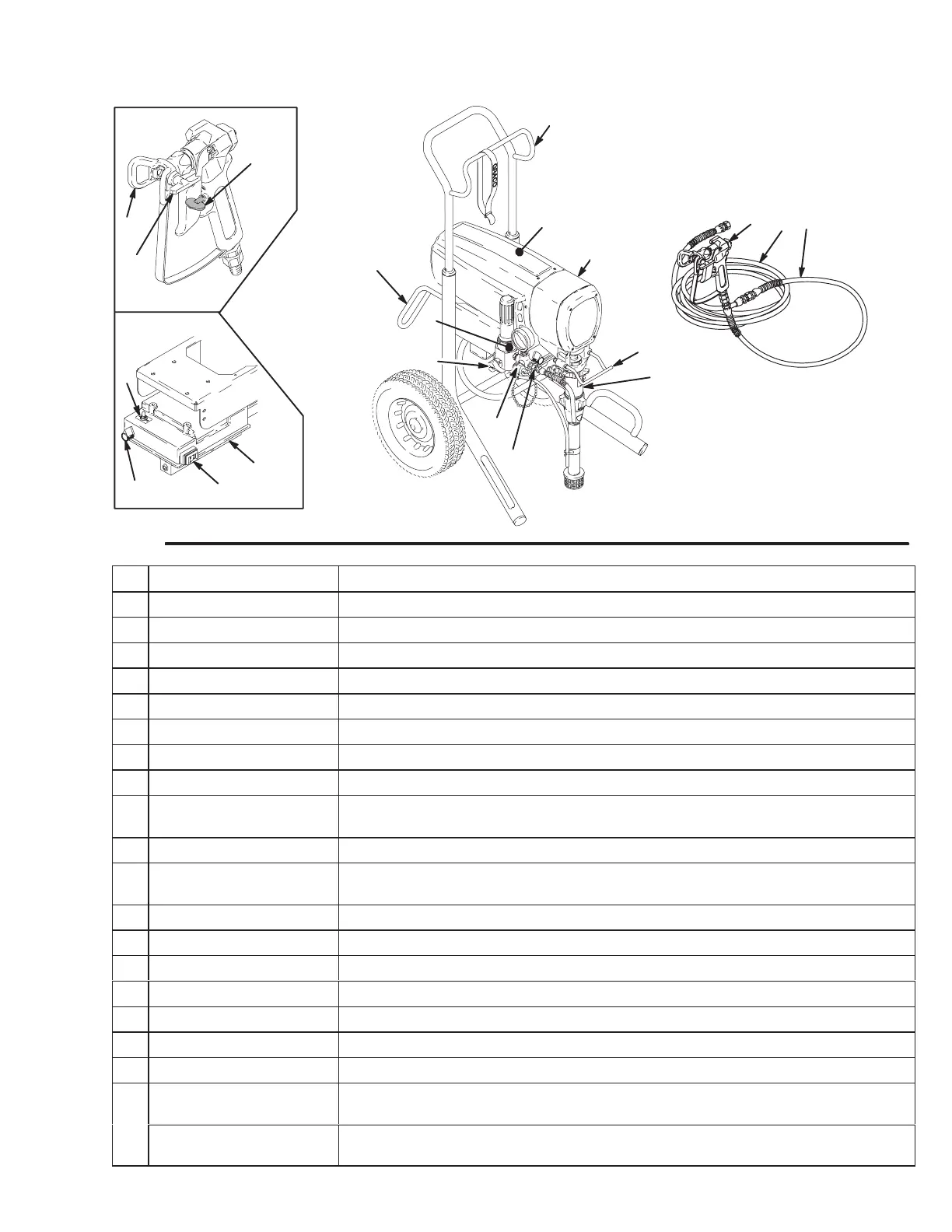

Fig. 1
N
F
H
B
A
T
C
P
R
M
D
S
G
E
U
V
LJ
W
K
A Motor DC motor, permanent magnet, totally enclosed, fan cooled
B Drive Assembly Transfers power from DC motor to the displacement pump
C Pail Hanger Container for fluid to be sprayed may be hung here
D Displacement Pump Transfers fluid to be sprayed from source through spray gun
E Primary Fluid Outlet Single spray gun operation is connected here
F Secondary Fluid Outlet Second spray gun operation is connected here
G Pressure Drain Valve Relieves fluid outlet pressure when open
H Fluid Filter Final filter of fluid between source and spray gun
J Pressure Adjust Knob Controls fluid outlet pressure
K Pressure Control Controls motor speed to maintain fluid outlet pressure at displacement pump
outlet. Works with pressure adjusting knob.
L ON/OFF Switch Power switch that controls VAC main power to sprayer
M 3 ft (0.9 m) Hose 3/16 in. ID, grounded, nylon hose used between 50 ft hose and spray gun to
allow more flexibility when spraying
N 50 ft (15 m) Main Hose 1/4 in. ID, (3/8 in. ID, MARK V) grounded, nylon hose, spring guards both ends
P Spray Gun High pressure spray gun with gun safety latch
R RAC IV Switch Tip Uses high pressure fluid to clear tip clogs without removing tip from spray gun
S RAC IV Tip Guard Reverse-A-Clean (RAC) tip guard reduces the risk of injection injury
T Spray Gun Safety Latch Gun safety latch inhibits accidental triggering of spray gun
U Power Cord Rack Holds wrapped power cord for storage
V Spray Hose Rack Holds wrapped spray hose for storage
W 10/12 Amp Switch Allows Models 232164, 232173 to operate on 10A service with reduced perfor-
mance
15/20 Amp Switch Allows Models 232160 through 232163, 232166, 232171 to operate on 15A ser-
vice with reduced performance
