Fan Replacement
309674M 19

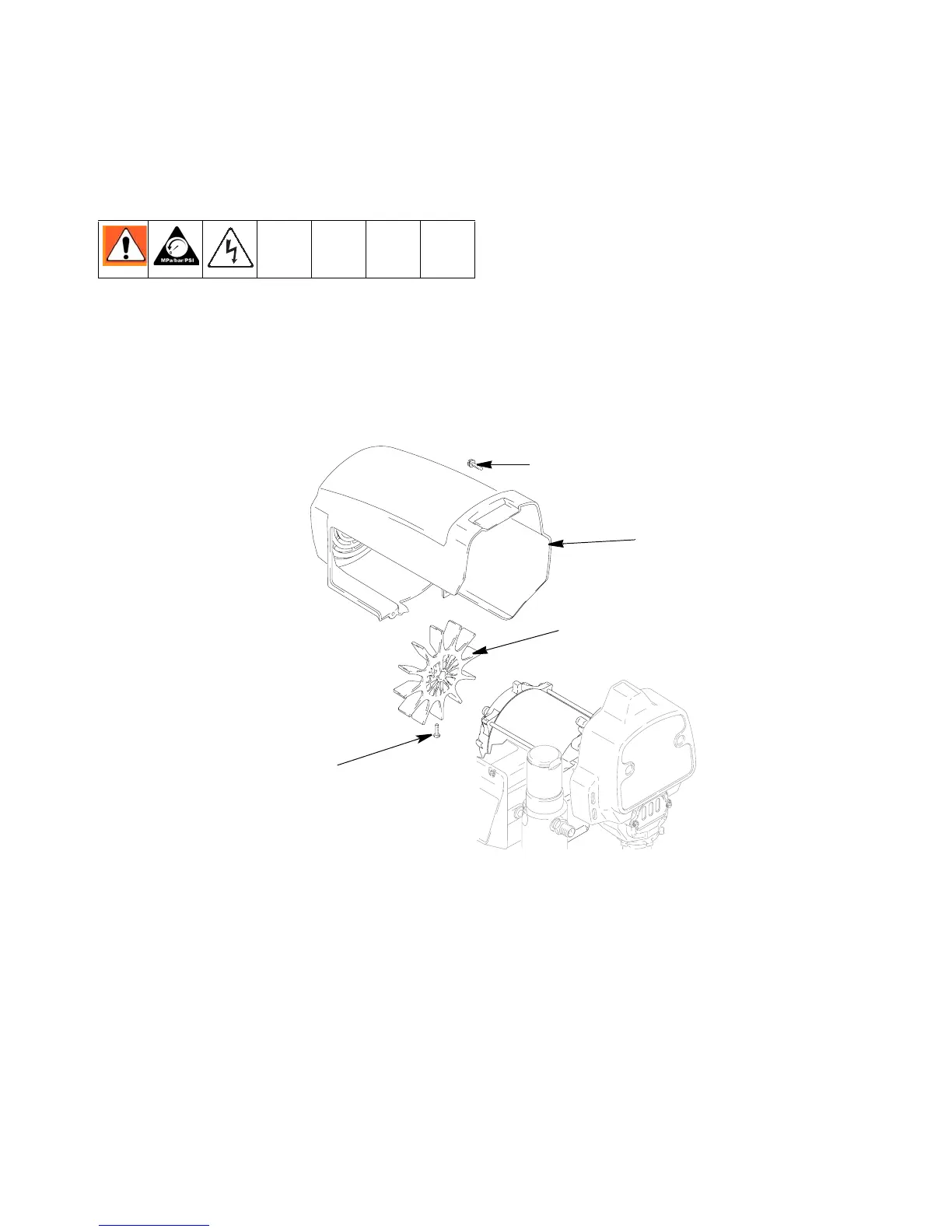

Fan Replacement
Removal
1. Relieve pressure, page 7. Disconnect power cord
from outlet.
2. Remove four screws (12) and shroud (23).
3. Loosen tensioning screw (126) on fan (125).
4. Pull off fan (77).
Installation
1. Slide new fan (125) in place on back of motor. Be
sure blades of fan face motor as shown.
2. Tighten screw (126).
3. Replace shroud (23) and four screws (12).
TIA
12
23
125
126
