On/Off Switch Replacement
309674M 23
110/240 VAC Ultra, Nova, and ST Max 395/495/595 models
Removal

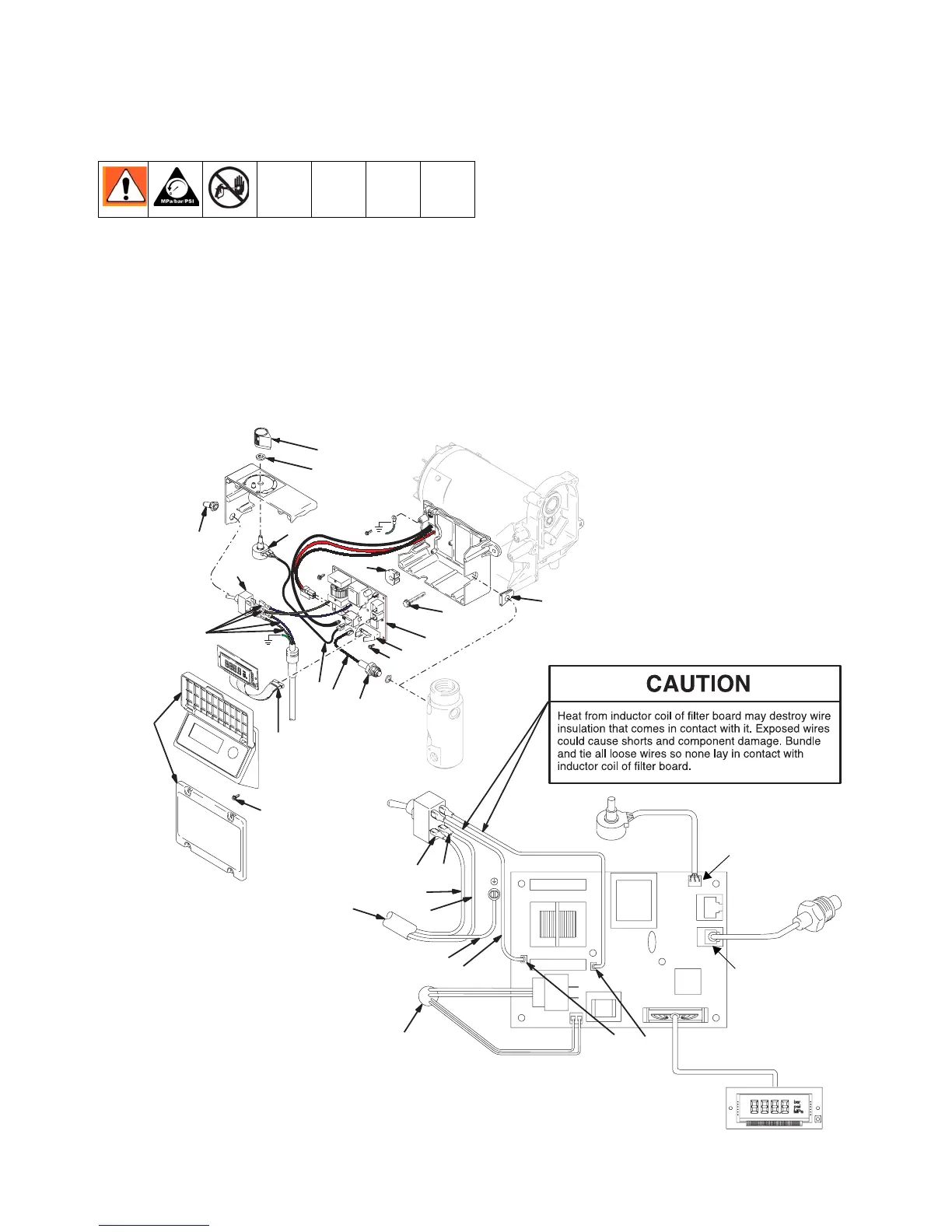

1. Relieve pressure, page 7.
2. Remove four screws (12) and pressure control cover
(50).
3. Remove display connector (B) from plug (C).
4. Disconnect four wires (A) from ON/OFF switch (58).
5. Remove toggle boot (30) and locking ring. Remove
ON/OFF switch (58).
Installation
1. Install new ON/OFF switch (58). Install locking ring
and toggle boot (30).
2. Connect four wires (A) to ON/OFF switch (58).
3. Install display connector (B) to plug (C).
4. Install pressure control cover (50) with four screws
(12).
