Component Identification
12 3A2776K
Main Power and Heater Controls
BA Main Power ON/OFF Switch (non hazardous location)
BB A and B Tank Water Heat ON/OFF Switch
BD Optional Heated Water Flush Tank Accessory ON/OFF
Switch (only used if the water heater accessory has been
added to the machine) (standard on hazardous location
models
CA Main Power ON/OFF Switch (hazardous location)

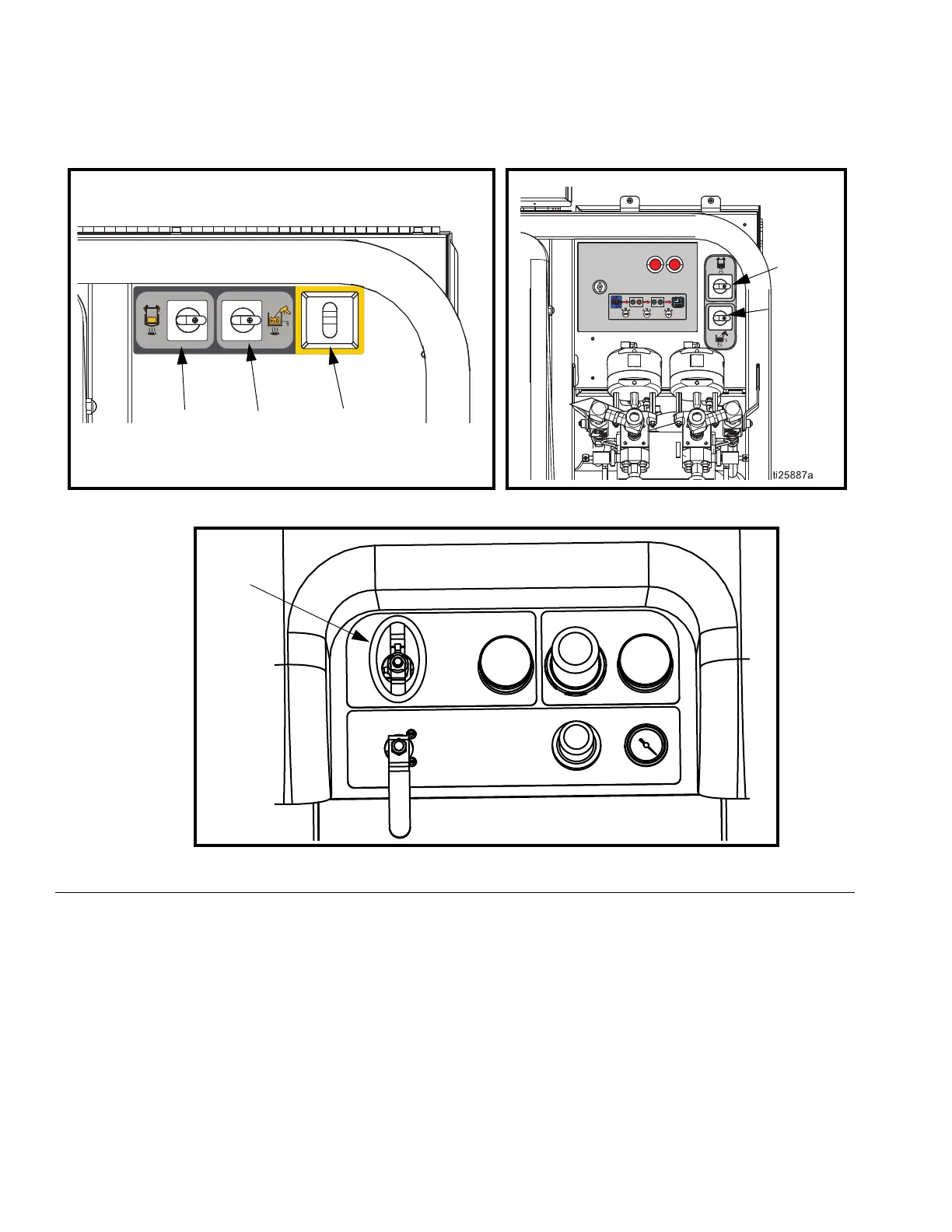

FIG. 4
BB
BD
Hazardous Location System
Non-Hazardous Location System
CA
r_XM1A00_312359_313289_14A
Hazardous Location System
BB
BD
BA
