Component Identification
3A2776K 13
Sprayer and Flush Pump Air Controls
CA Metering Pump Air On/Off Control (non hazardous loca-
tion)
Main Power On/Off Switch (hazardous location), see Main
Power and Heater Controls, page 12
CB Flush Pump Air On/Off Control
CC Inlet Air Pressure Gauge
CD Metering Pump Air Regulator
CE Metering Pump Air Regulator Gauge
CF Flush Pump Air Gauge
CG Flush Pump Air Regulator

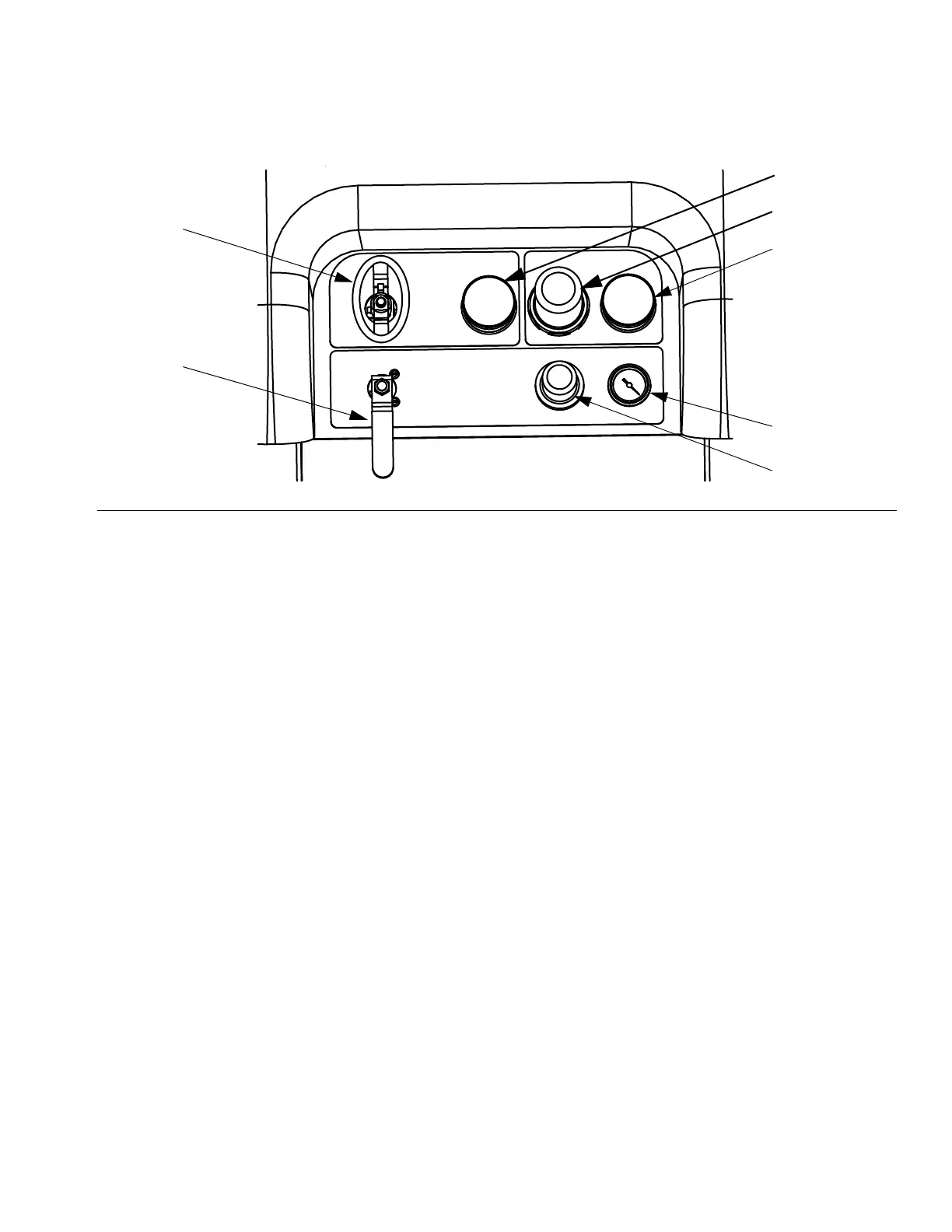

FIG. 5
CA
CB
CC
CD
CE
CG
CF
r_XM1A00_312359_313289_14A
