Component Identification - Wall Mount
Component Identification
- Wall Mount

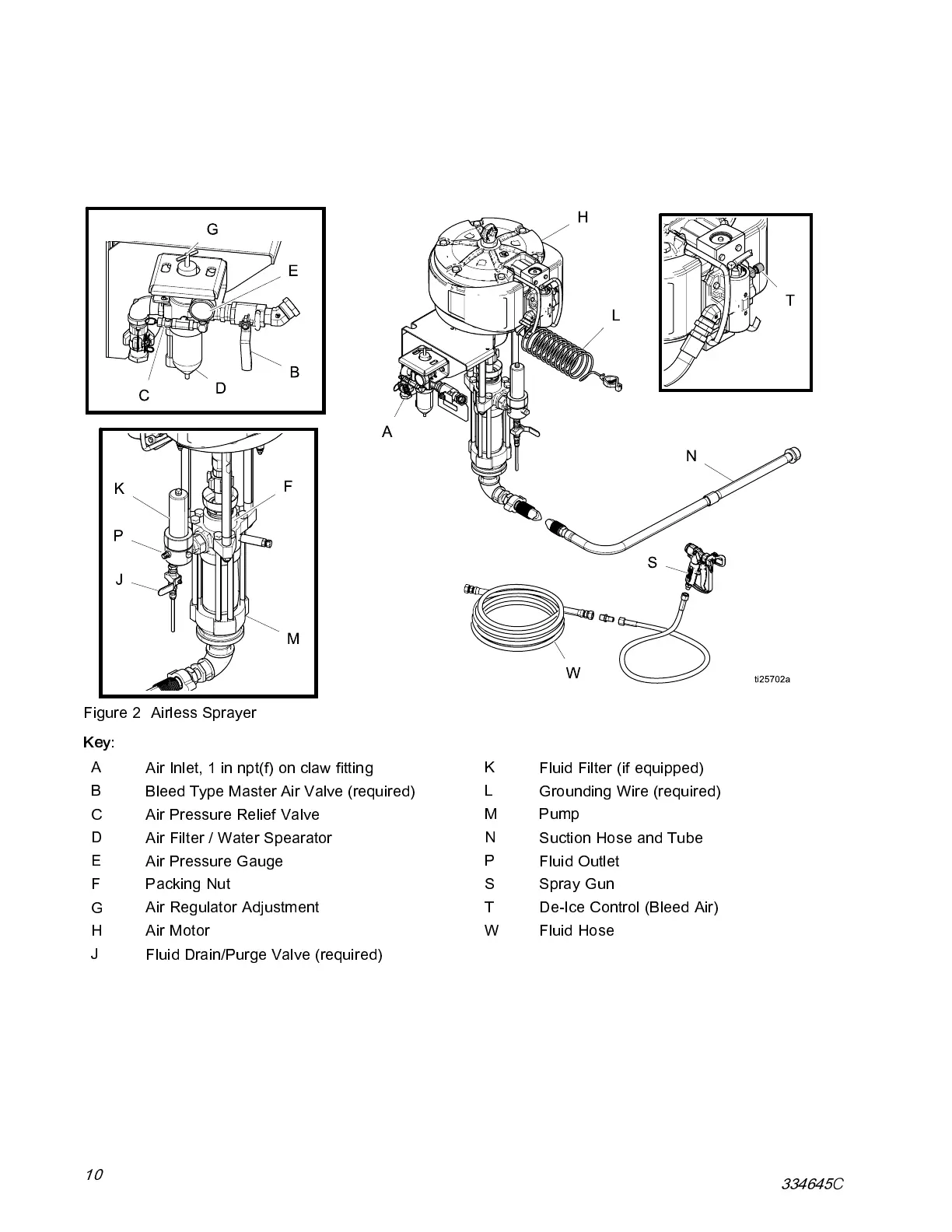

Figure 2 Airless Sprayer
Key:
A
Air Inlet, 1 in npt(f) on claw fitting
B
Bleed Type Master Air Valve (required)
C Air Pressure Relief Valve
D
Air Filter / Water Spearator
E
Air Pressure Gauge
F Packing Nut
G
Air Regulator Adjustment
HAirMotor
J
Fluid Drain/Purge Valve (required)
K
Fluid Filter (if equipped)
L
Grounding W ire (required)
MPump
N
SuctionHoseandTube
P
Fluid O utlet
S Spray Gun
T
De-Ice Control (Bleed Air)
WFluidHose
10
334645 C
