Component Identification - Cart Mount
Component Identification
- Cart Mount

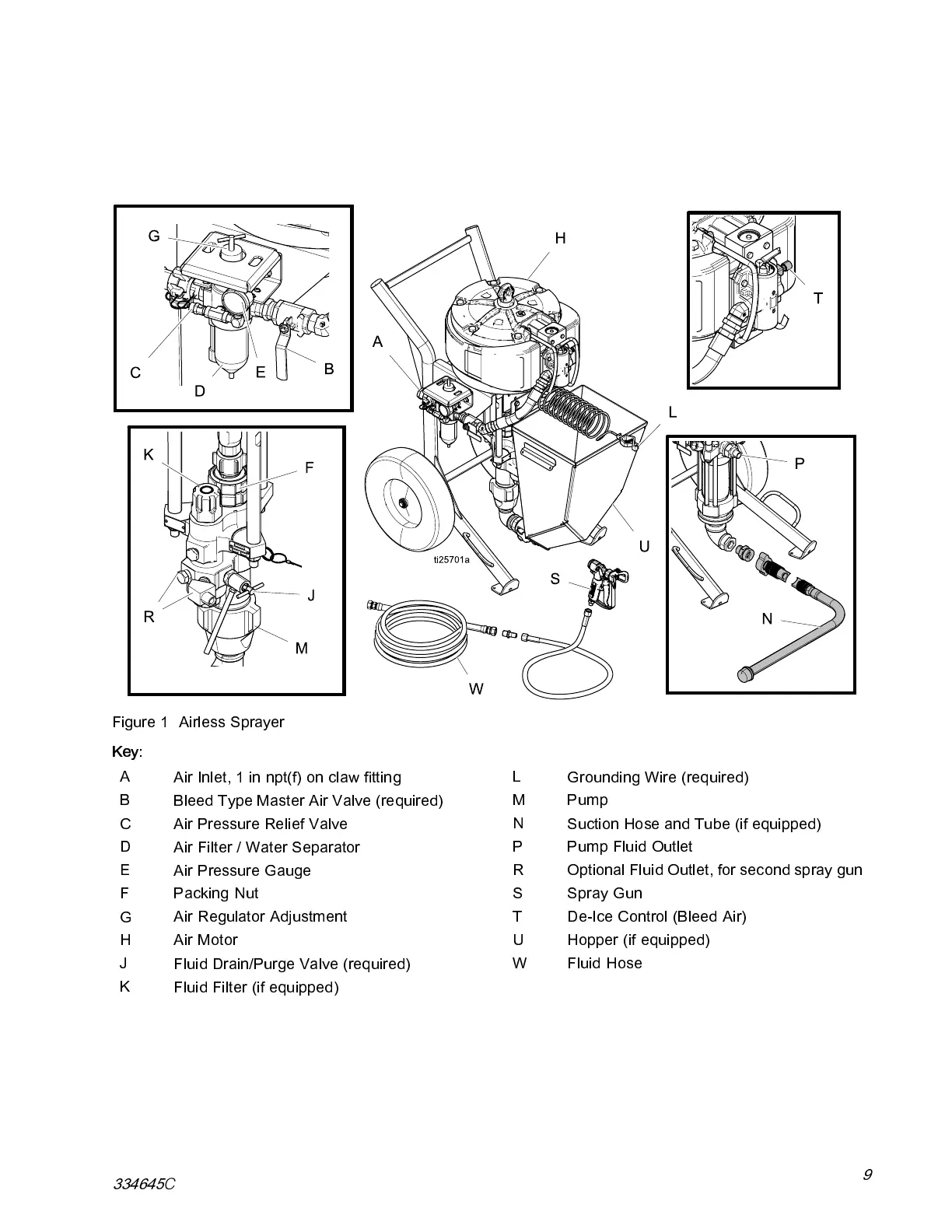

Figure 1 Airless Spray er
Key:
A
Air Inlet, 1 in npt(f) on claw fitting
B
BleedTypeMasterAirValve(required)
C Air Pressure Relief Valve
D
Air Filter / Water Separator
E
Air Pressure Gauge
F Packing Nut
G
Air Regulator Adjustment
HAirMotor
J
Fluid Drain/Purge Valve (required)
K
Fluid Filter (if equipped)
L
Grounding Wire (required)
MPump
N
SuctionHoseandTube(ifequipped)
P
Pump Fluid Outlet
R
Optional Fluid Outlet, for second spray gun
S Spray Gun
T
De-Ice Control (Bleed Air)
U
Hopper (if equipped)
WFluidHose
334645 C
