Sprayer Packages
Sprayer Packages

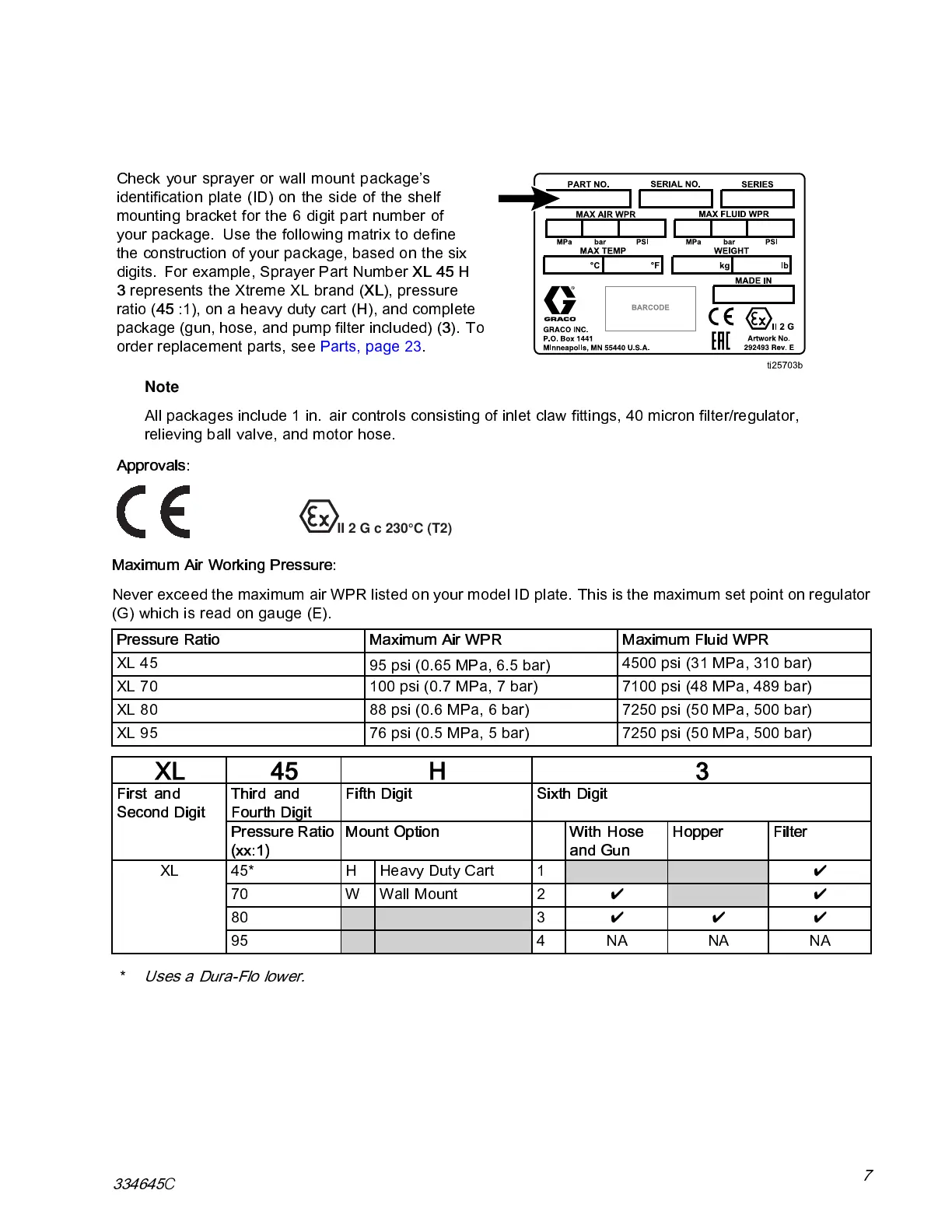

Check your sprayer or wall mount package’s
identification plate (ID) on the side of the shelf
mounting bracket for the 6 digit p art number of
your package. Use the following matrix to define
the construction of your package, based on the six
digits. For example, Sprayer Part Number
XL 45 H
3
represents the Xtreme XL brand (
XL
), pressure
ratio (
45
:1), on a heavy duty cart (
H
), and complete
package (gun, hose, and pump filter included) (
3
). To
order replacement parts, see Parts, page 23.
Note
All packages include 1 in. air controls consisting of inlet claw fittings, 40 micron filter/regulator,
relieving ball valve, and motor hose.
Approvals:
II 2 G c 230°C (T2)
Maximum Air Working Pressure:
Never exceed the maximum air WPR listed on your model ID plate . This is the maximum set point on regulator
(G) whic h is read on gauge (E).
Pressure Ratio Maximum Air WPR Maximum Fluid WPR
XL 45
95 psi (0.65 MPa, 6.5 bar)
4500 psi (31 MPa, 310 bar)
XL 70
100psi(0.7MPa,7bar) 7100psi(48MPa,489bar)
XL 80
88 psi (0.6 MPa, 6 bar) 7250 psi (50 MPa, 500 bar)
XL 95
76 psi (0.5 MPa, 5 bar) 7250 psi (50 MPa, 500 bar)
XL 45 H
3
Third and
Fourth Digit
Fifth Digit Sixth DigitFirst and
Second Digit
Pressure Ratio
(xx:1)
Mount Option
With Hose
and Gun
Hopper Filter
45*
H
Heavy Duty Cart
1
✔
70 W Wall Mount 2
✔✔
803
✔✔✔
XL
95 4NANANA
*
Uses a Dura-Flo lower.
334645
C
7
