Parts
Parts

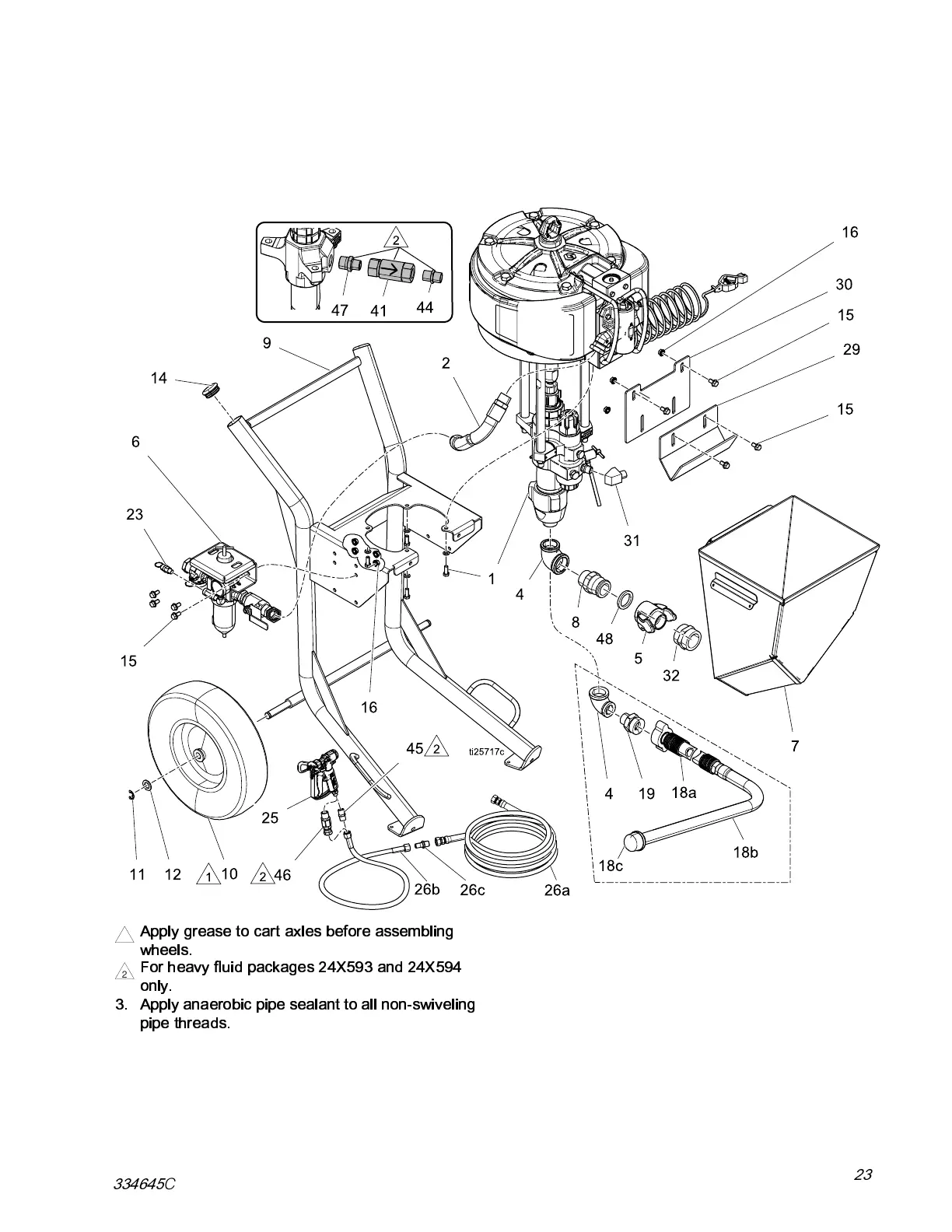

Xtreme Sprayer Cart Packages
1
Apply grease to cart axles before assembling
wheels.
2
For heavy fluid packages 24X593 and 24X594
only.
3.
Apply anaerobic pipe sealant to all non-swiveling
pipe threads.
334645
C
23
