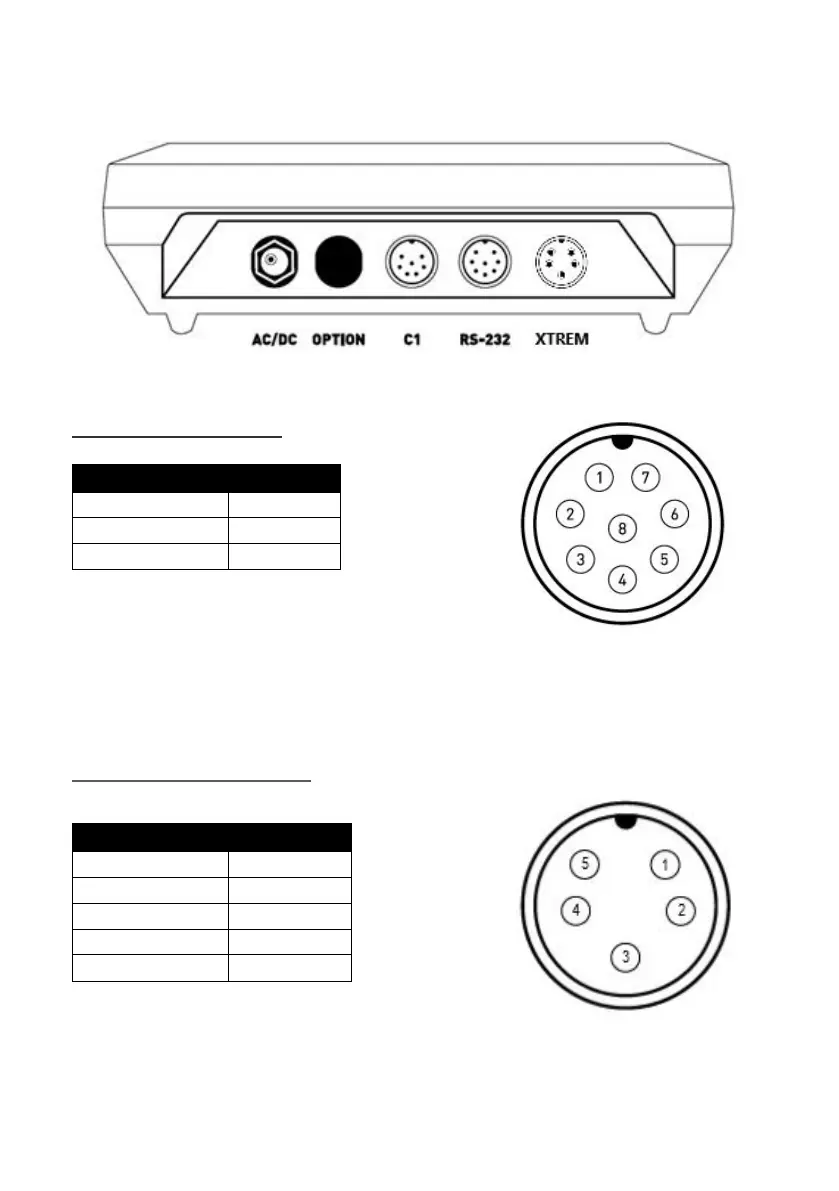

5 MULTI-PIN MOBILE MALE

(P700) 8 PINES

6 MULTI-PIN MOBILE MALE (P700)

5 PINES

RS-232 serial output

XTREM scale connector

PIN No.

SIGNAL

PIN 4

RxD

PIN 5

TxD

PIN 6

GND

PIN No.

SIGNAL

PIN 1

+Vcc

PIN 2

TxD

PIN 3

RxD

PIN 4

No conectado

PIN 5

GND

Table of Contents3
Keypad and Lcd Display5
Before Using the Scale8
On / off10
Initial Reset to Zero10
Operation11
Use of the Scale11
Tare and Tare Record in Memory12
Zeroing14
Lcd Display Test14
High-Resolution Mode15
Hold Mode15
H-L Mode (Control of Upper/Lower Limits)16
Dosage Mode17
Piece Counter Mode18
Plu - Selection of Product Code20
Printing a Weighing Ticket21
Configuration Options Menu23
Auto-Off Option26
Backlighting the Display26
Sound When Pressing a Key27
Tare Options27
Hold MODE27
Keypad Lock29
Communication29
Remote Indicator Mode32
XTREM Mode32
PR4/PR6/Q2 Printer33
Frame Format RD333
Frame Format USB34
Frame Format PC034
Communication Protocol37
Ticket Print Options37
Configuring the Scale38
Settings Menu39
Scale Calibration40
Table of Geographical Adjustment Values41
Digital Filter42
Weighing of Live Animals43
Movement Filter43
Information to be Viewed43
Digital Outputs44
Technical Specs46
Connections48
Error Messages50
Notes51
