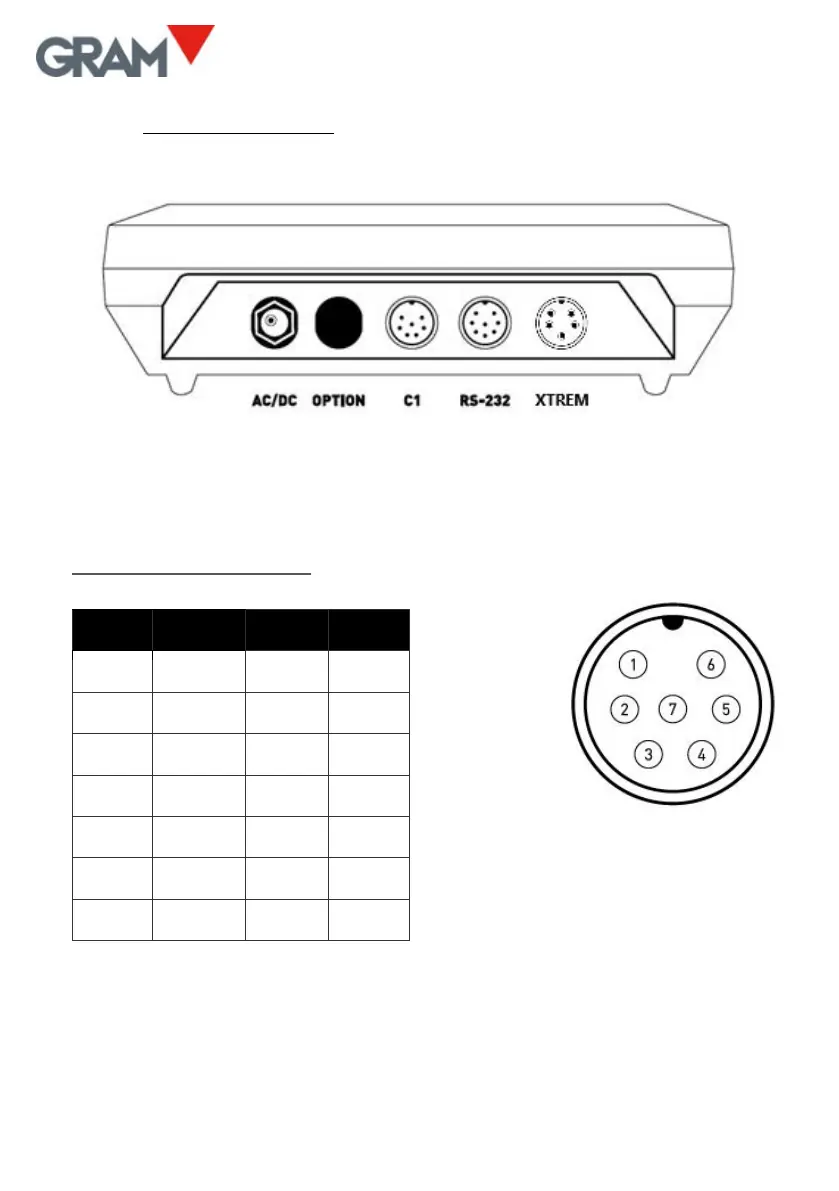

22. CONNECTIONS

C1 connector, load cell

PIN No.

SIGNAL

TYPE A

TYPE B

PIN 1

SIG -

Blue

White

PIN 2

SIG +

Brown

Green

PIN 3

MESH

Mesh

PIN 4

EXC -

Black

PIN 5

SENSE -

Blue

PIN 6

EXC +

Red

PIN 7

SENSE +

Yellow

4 MULTI-PIN MOBILE MALE

(P700) 7 PINES
