8

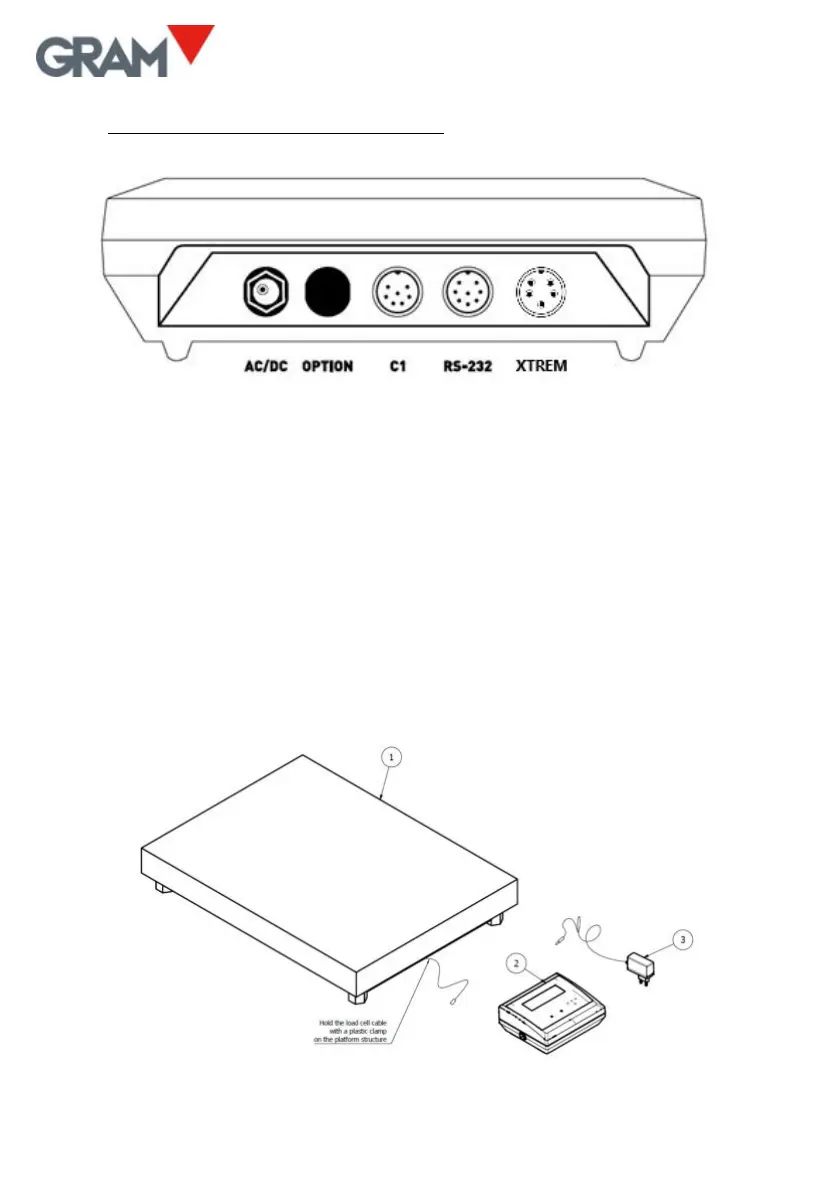

2. BEFORE USING THE SCALE
1. AC/DC adapter, output 12 Vdc – 1 A
2. Space allocated for optional enlargements
3. Connector for the C1 load receptor platform
4. RS-232 data output
5. Connector for the XTREM platform
Connect the AC/DC power source to the unit and to a power outlet suitable
for charging the battery before its first use.
Connect the load receptor platform cable in the C1 connector of the K3
indicator.
