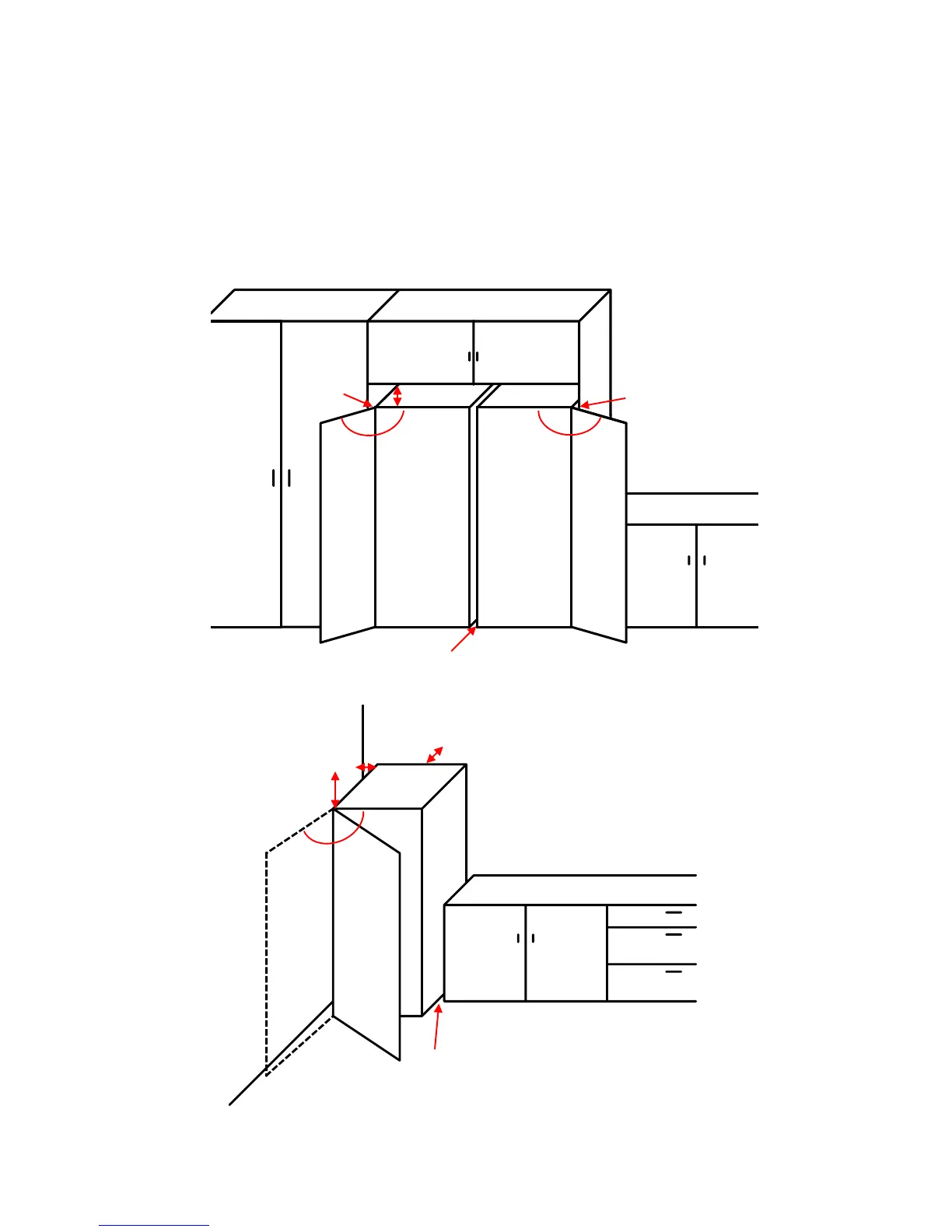

Installation And Ventilation Diagrams
The measurements below are to be used as guidelines only. The
degree of the door openings show the minimum requirement to
easily access the storage bins. (17 & 18)
10
5mm+
110º 110º
10mm+
10mm+
35-50mm+
110º
10mm+
35-50mm+
1mm+
40-60mm+
17
18
