15

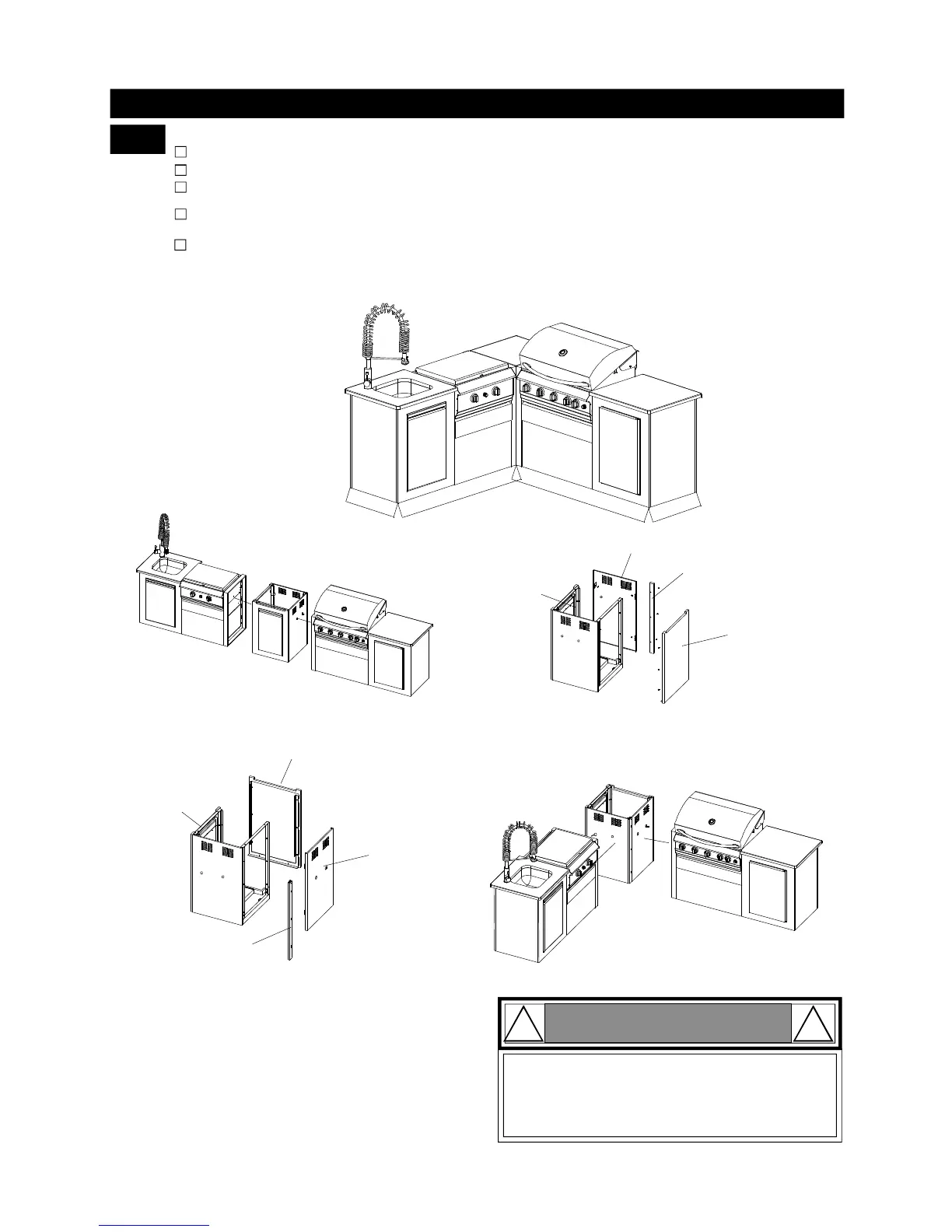

Assembly Instructions
Note:
All measurements are in inches.
Separate the Island from Range and Grill modules. See Fig. 1.
Remove Island Left, Rear and Decoration Panels B. See Fig. 2.
Door
Decoration Panel A
Fig. 3
Fig. 4
Range
Island
Grill
Assemble Island for L-Shape Configuration
3-2
Use your grill at least 3 feet away from any wall
or surface.
Do not obstruct the flow of air for combustion
and ventilation.
CAUTION
! !
Rear Panel
Left Panel
Left Panel
Decoration Panel B
Rear Panel
Fig. 2
Option 2
Fig. 1
Range
Grill
Island
Door
2
6
.
7
"
5
6
.
5
"
6
2
.
9
"
2
6
.
7
"
Reinstall Island Left Panel, Rear Panel and Decoration Panel A as
shown in Fig. 3.
Align the 3 individual modules closely as shown in Figure 4 then proceed
to Step 4 to attach the Regulator with Hose.
Be sure to attach the Regulator with Hose installation from Range
and Island before securely placing in position.
(Please refer to Step 4).
