11

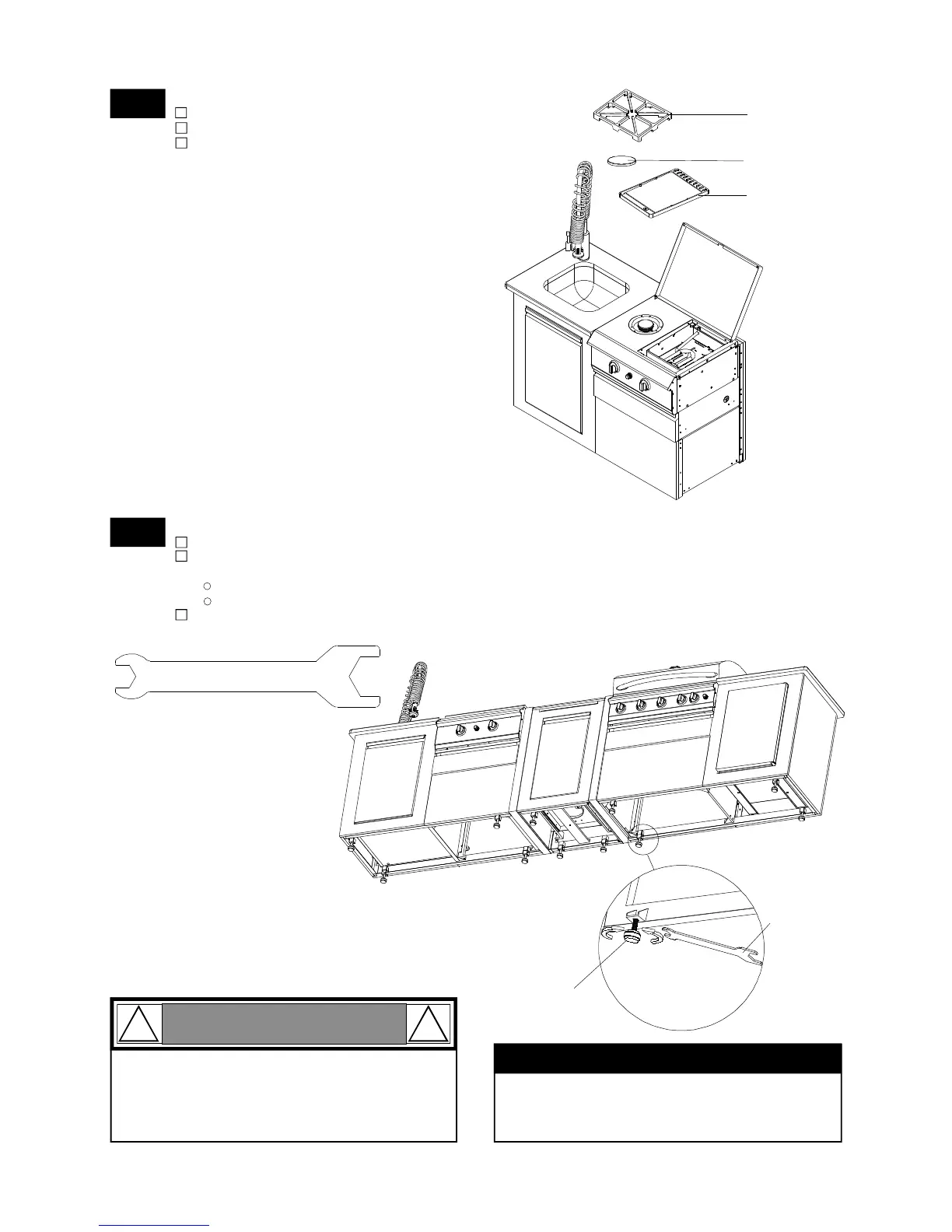

Install Pot Support and Griddle
Place Side Burner Cap on top of side burner.
Place Pot Support on top of side burner body.
Place Griddle on top of griddle frame with the grease
drain in the front as shown.
Pot Support
Griddle
Side Burner Cap
Final Grill Assembly Step
When you have finished assembling your
grill be sure that all screws are tightened
for safe operation of your grill.
Wrench
Qty.1
Part # P05515017L
Level Adjuster are located underside of the Island Assembly as shown.
Once the Island Assembly is in its final location, reach underneath and adjust
the 12 pre-assembled Level Adjusters if needed, using the wrench provided.
Turn Adjusters clockwise to raise the height of the Assembly and
Turn Adjusters counterclockwise to lower the height.
IMPORTANT: For illustration purpose the Island Assembly Set is shown
on a tilted angle. FOR YOUR SAFTEY DO NOT TILT your Island Assembly
at any time.
12
Adjust Island Assembly Set (on uneven surfaces only)
Underside view of Island Assembly Set
Level Adjuster
Wrench
