Grand Cafe CGI08ALP - ROTISSERIE ASSEMBLY AND INSTALLATION; Attaching Rotisserie Motor Bracket and Spit

27
Rotisserie Instructions
1.
Remove all components from the carton.

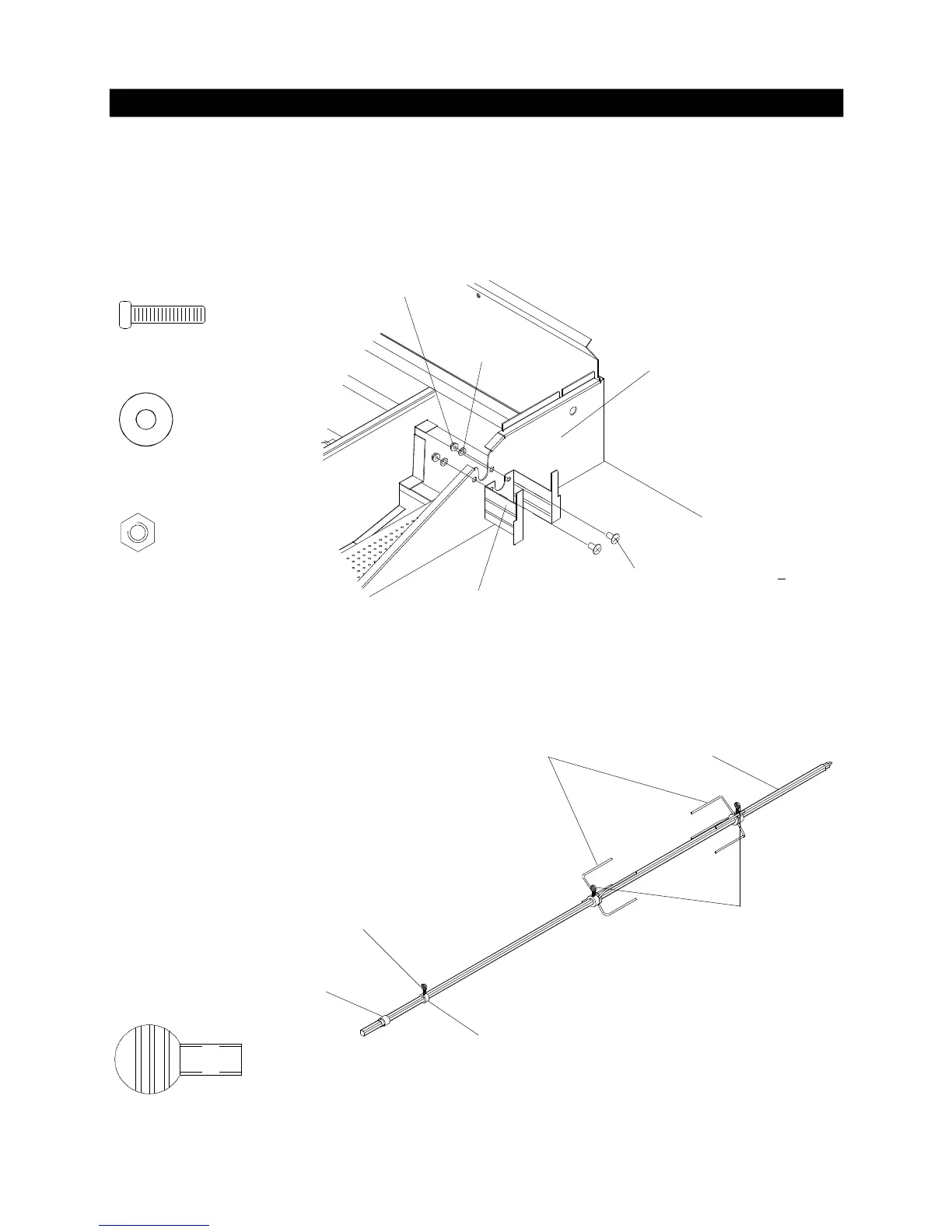

Attach the Motor Bracket on the outside of the right grill bowl panel. Align the two holes of the
Bracket with the holes on the grill bowl. Tighten securely using two Screws #10-24x3/4" UNC, Plain
Washers and Nuts provided.
2.
Slide a Holding Fork onto each end of the Rotisserie Spit. Adjust spacing between Holding Forks to
accommodate your food, then tighten the Thumbscrews to keep the Holding Forks in position. Slide
the Collar and Bushing onto the threaded end of the Spit. Do not tighten the Collar Thumbscrew until
the Rotisserie is placed into your grill.
3.
Rot.Thumbscrew 1/4"x1/2" x3
Rot. Screw #10-24x3/4" UNC x2
Rot. Washer x2
Rot. Nut #10-24 x2
Holding Forks
Collar
Bushing
Thumbscrew
1/4"x1/2"
Spit
Thumbscrew
1/4"x1/2"
#10-24 Nut
Washer
Outside of Right Grill Bowl Panel
Rot. Screw #10-24X
3
4
" UNC
with washers and nuts
Motor Bracket
