Grandstream Networks GDS370 Series User Manual

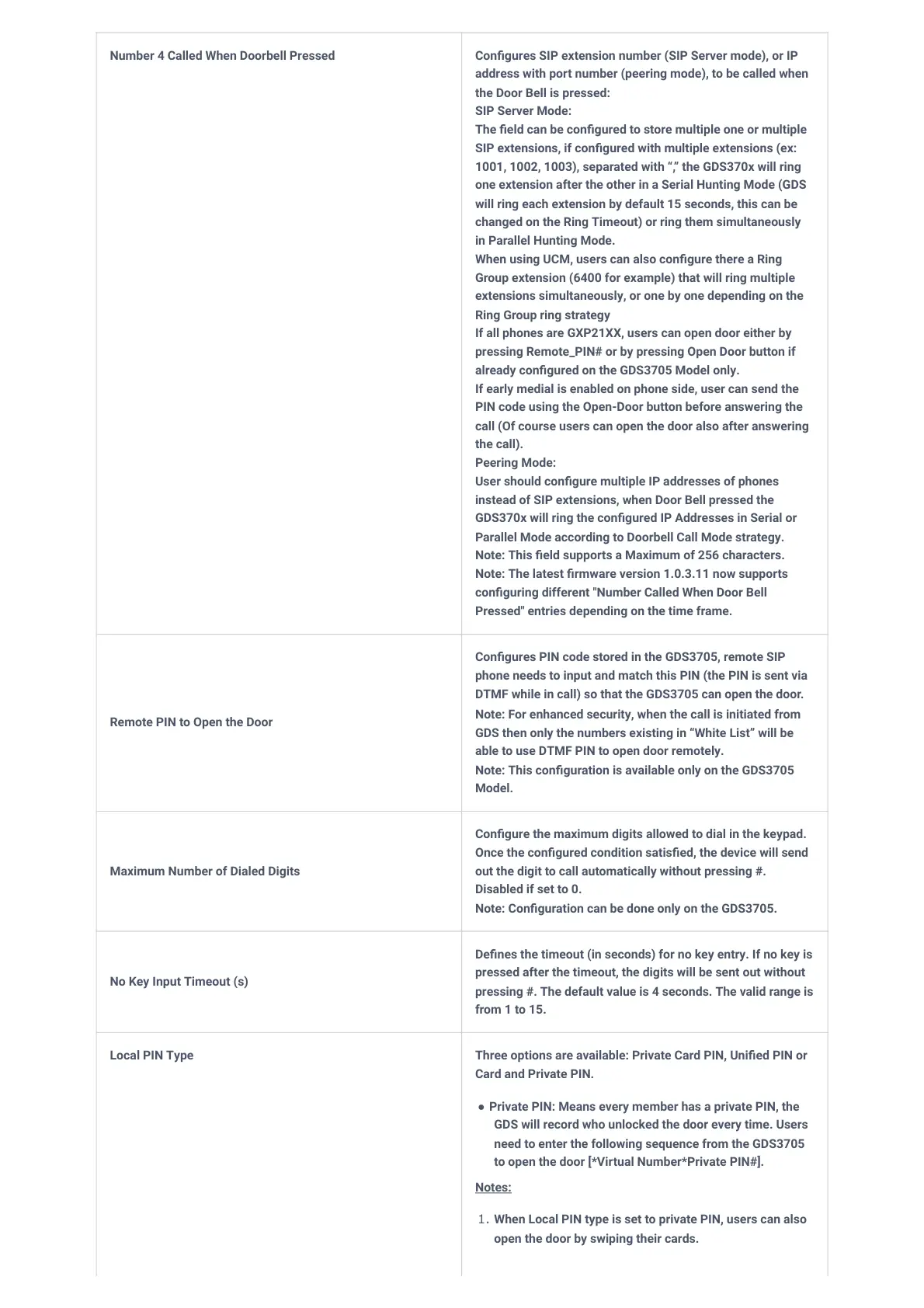

Number 4 Called When Doorbell Pressed Configures SIP extension number (SIP Server mode), or IP
address with port number (peering mode), to be called when
the Door Bell is pressed:
SIP Server Mode:
The field can be configured to store multiple one or multiple
SIP extensions, if configured with multiple extensions (ex:
1001, 1002, 1003), separated with “,” the GDS370x will ring
one extension after the other in aSerial Hunting Mode(GDS
will ring each extension by default 15 seconds, this can be
changed on the Ring Timeout) or ring them simultaneously
inParallel Hunting Mode.
When using UCM, users can also configure there a Ring
Group extension (6400 for example) that will ring multiple
extensions simultaneously, or one by one depending on the
Ring Group ring strategy
If all phones are GXP21XX, users can open door either by
pressingRemote_PIN#or by pressing Open Door button if
already configured on the GDS3705 Model only.
If early medial is enabled on phone side, user can send the
PIN code using the Open-Door button before answering the
call (Of course users can open the door also after answering
the call).
Peering Mode:
User should configure multiple IP addresses of phones
instead of SIP extensions, when Door Bell pressed the
GDS370x will ring the configured IP Addresses in Serial or
Parallel Mode according to Doorbell Call Mode strategy.
Note:This field supports a Maximum of 256 characters.
Note:The latest firmware version 1.0.3.11 now supports
configuring different "Number Called When Door Bell
Pressed" entries depending on the time frame.
Remote PIN to Open the Door
Configures PIN code stored in the GDS3705, remote SIP
phone needs to input and match this PIN (the PIN is sent via
DTMF while in call) so that the GDS3705 can open the door.
Note: For enhanced security, when the call is initiated from
GDS then only the numbers existing in “White List” will be
able to use DTMF PIN to open door remotely.
Note: This configuration is available only on the GDS3705
Model.
Maximum Number of Dialed Digits
Configure the maximum digits allowed to dial in the keypad.
Once the configured condition satisfied, the device will send
out the digit to call automatically without pressing #.
Disabled if set to 0.
Note: Configuration can be done only on the GDS3705.
No Key Input Timeout (s)
Defines the timeout (in seconds) for no key entry. If no key is
pressed after the timeout, the digits will be sent out without
pressing #. The default value is 4 seconds. The valid range is
from 1 to 15.
Local PIN Type Three options are available: Private Card PIN, Unified PIN or
Card and Private PIN.
● Private PIN: Means every member has a private PIN, the
GDS will record who unlocked the door every time. Users
need to enter the following sequence from the GDS3705
to open the door[*Virtual Number*Private PIN#].
Notes:
1. When Local PIN type is set to private PIN, users can also
open the door by swiping their cards.
