Connecting and Setting Up the GRP260x
The GRP260x phones can be installed on the desktop using the phone stand or attached on the wall using
the slots for wall mounting.

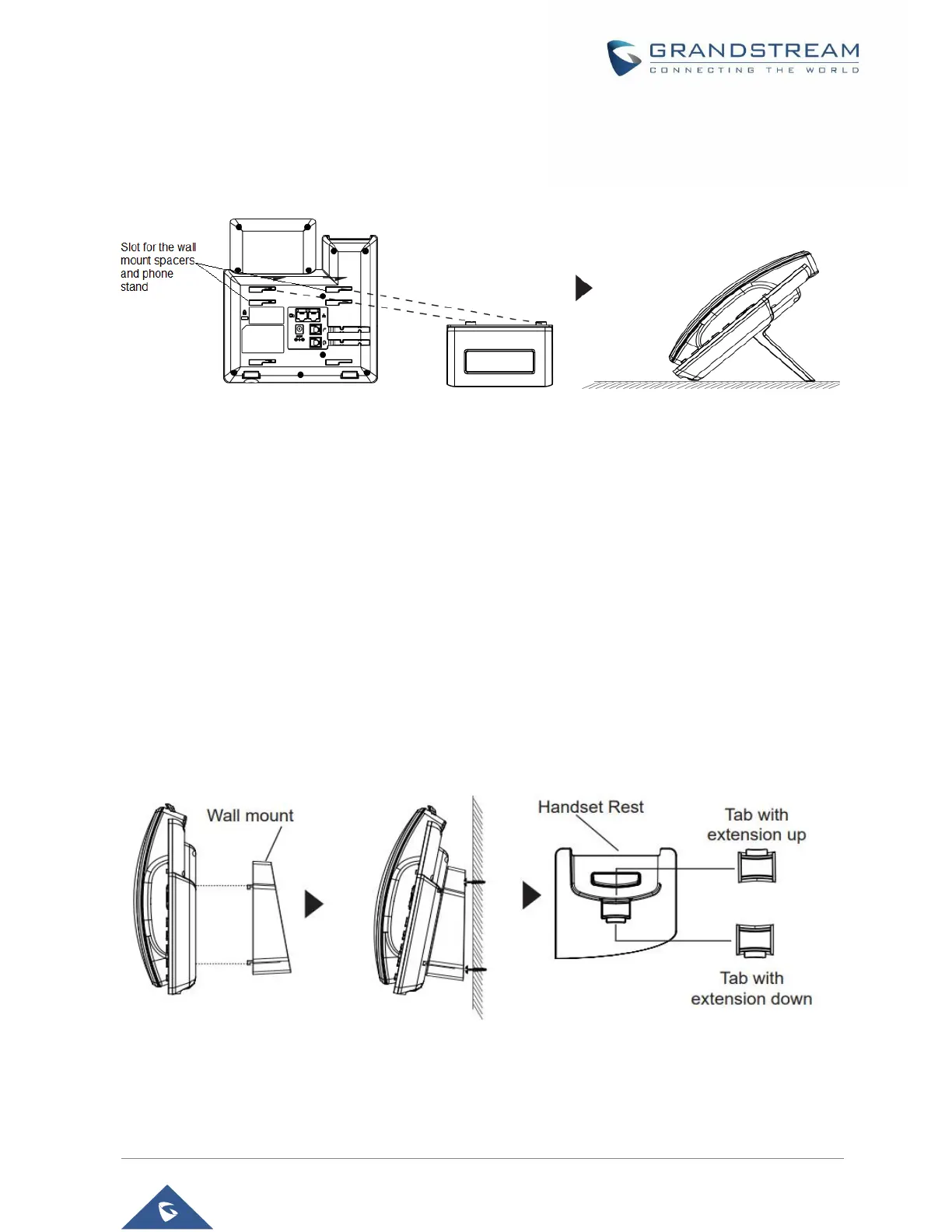

Figure 2: phone Stand and Mounting Slots on the GRP260x
Using the Phone Stand
To install the phone on the table with the phone stand, attach the phone stand to the bottom of the
phone through the phone stand slot. (Upper half, bottom part).
Using the Slots for Wall Mounting
1. Attach the wall mount spacers to the slot for wall mount spacers on the back of the phone.
2. Attach the phone to the wall via the wall mount hole.
3. Pull out the tab from the handset cradle (See figure below).
4. Rotate the tab and plug it back into the slot with the extension up to hold the handset while the
phone is mounted on the wall (See figure below).
Figure 3: Tab on the Handset Cradle
