Grandstream Networks GXP16 Series User Manual

Slots for
Phone
Stand
Slots for the phone stand if placing the phone on a flat surface
PC Port
10/100M Ethernet to connect PC on GXP1610/GXP1615/GXP1620/GXP1625, auto-sensing 10/100/1000M
Ethernet to connect PC on GXP1628 and GXP1630
LAN Port
10/100M Ethernet to connect LAN on GXP1610/GXP1615/GXP1620/ GXP1625, auto-sensing 10/100/1000M
Ethernet to connect LAN on GXP1628 and GXP1630, integrated PoE (GXP1615/GXP1625/GXP1628/GXP1630
only)
DC 5V
Power
Port
5V/600mA power port to connect to power adaptor
HEADSET
Port
To connect to RJ9 or EHS headphones
HANDSE
T Port
To connect handset RJ9
Cord Slot To place and fix the phone cords
Table 6: GXP16XX Connectors
Stand Installation

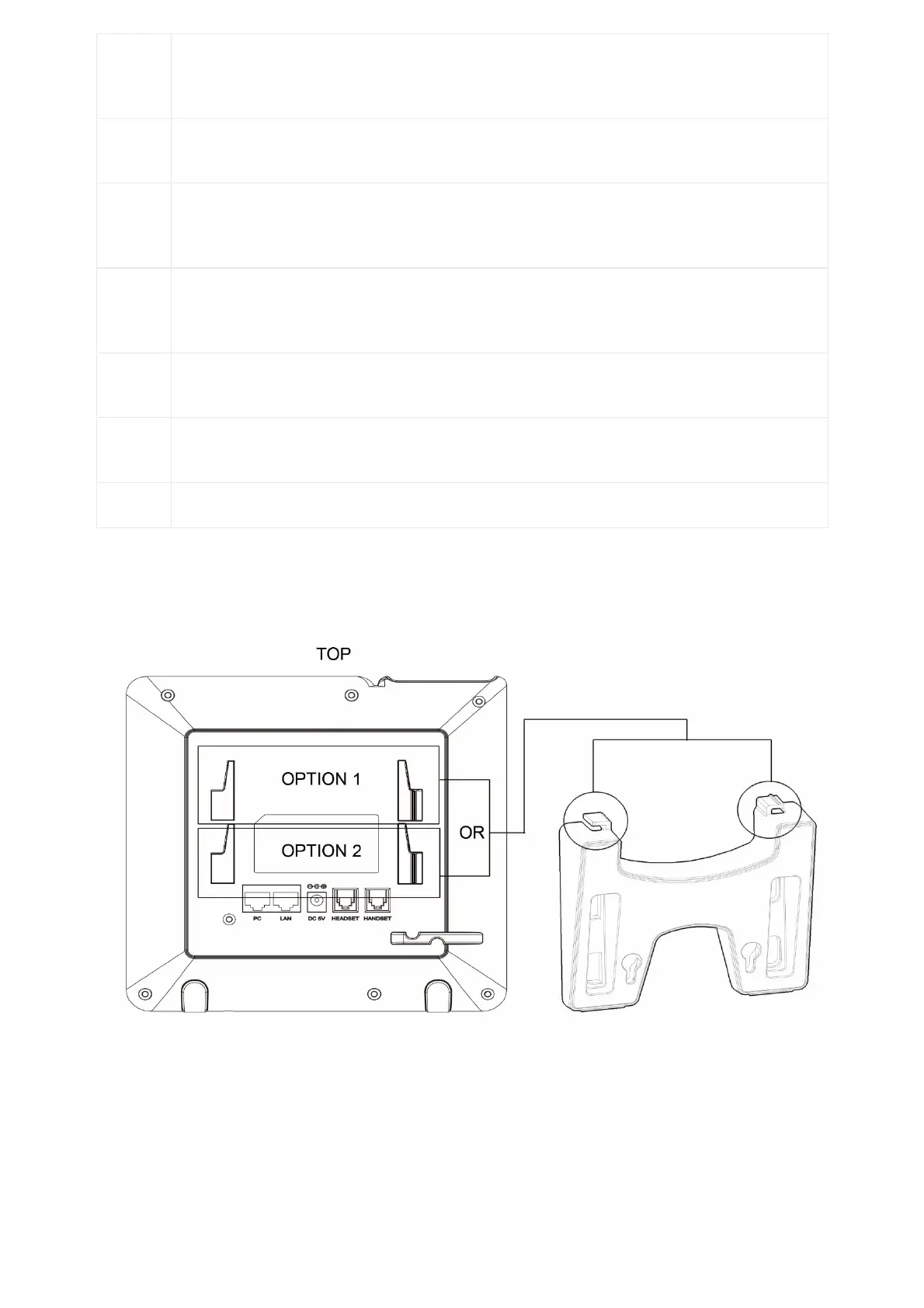

Figure 2: GXP16xx Stand Installation
1. Insert the hooks on the top of the stand into the slots, you have option to use either upper slots OR lower slots.
2. After both hooks are in the slots, firmly slide the entire stand upward to lock them in place.
Wall Mount Installation

Grandstream Networks GXP16 Series Specifications

General

Brand	Grandstream Networks
Model	GXP16 Series
Category	IP Phone
Language	English
