P a g e | 194
UCM630X Series User Manual
Version 1.0.2.25

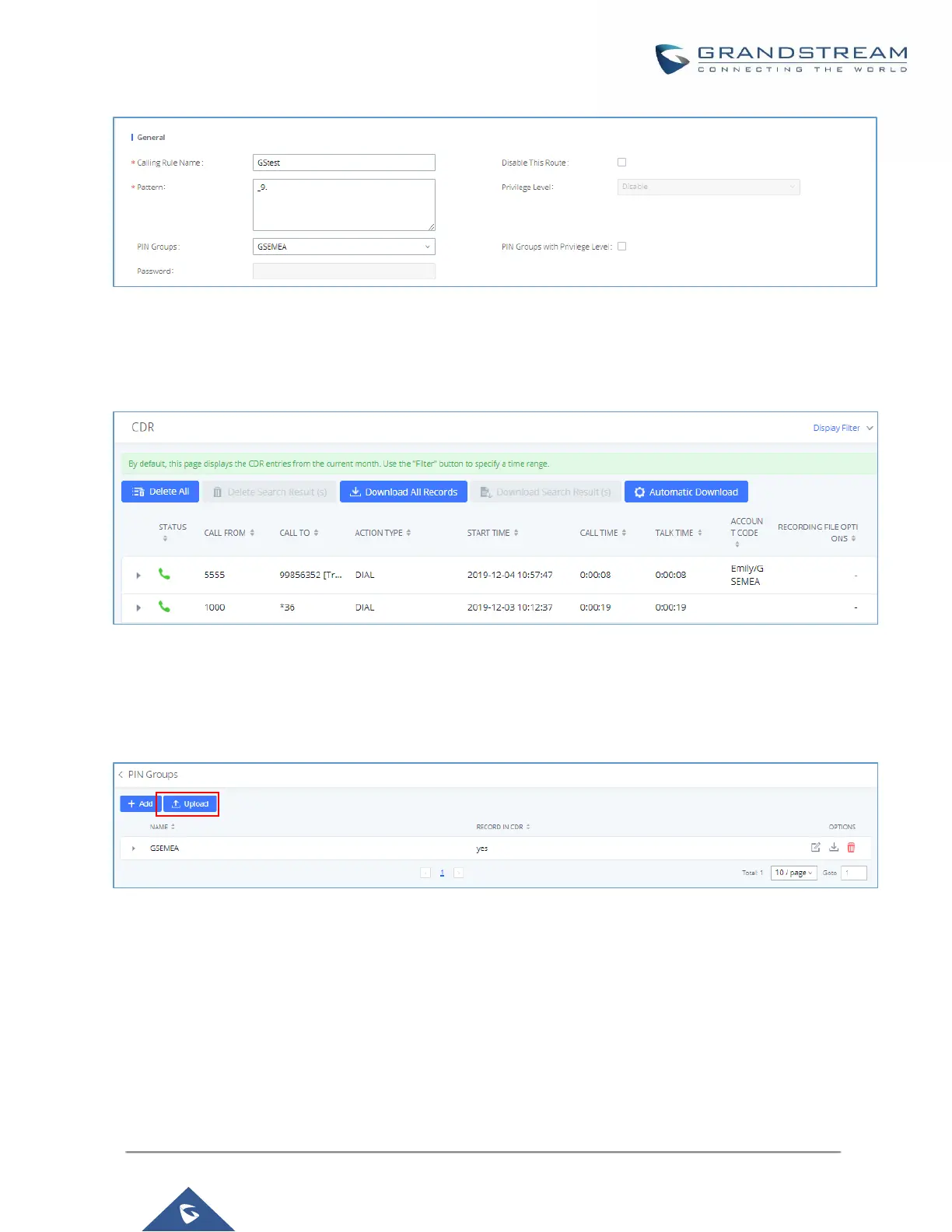

Figure 109: Outbound PIN
If PIN group CDR is enabled, the call with PIN group information will be displayed as part of CDR under Account
Code field.
Figure 110: CDR Record
- Importing PIN Groups from CSV files:
User can also import PIN Groups by uploading CSV files for each group. To do this:
1. Navigate to Extension/TrunkOutbound RoutesPIN Groups and click on the “Upload” button.
Figure 111: Importing PIN Groups from CSV files
2. Select the CSV file to upload. Incorrect file formats and improperly formatted CSV files will result in
error messages such as the one below:
