Gateway
Configure the IPv4 or IPv6 gateway address so that the UCM630X can reach the
destination via this gateway. Gateway address is optional.
Example:
192.168.40.5 or 2001:740:D::1
Interface
Specify the network interface on the UCM630X to reach the destination using the
static route.
LAN interface is eth0; WAN interface is eth1.
Static routes configuration can be reset from LCD menuNetwork Menu.

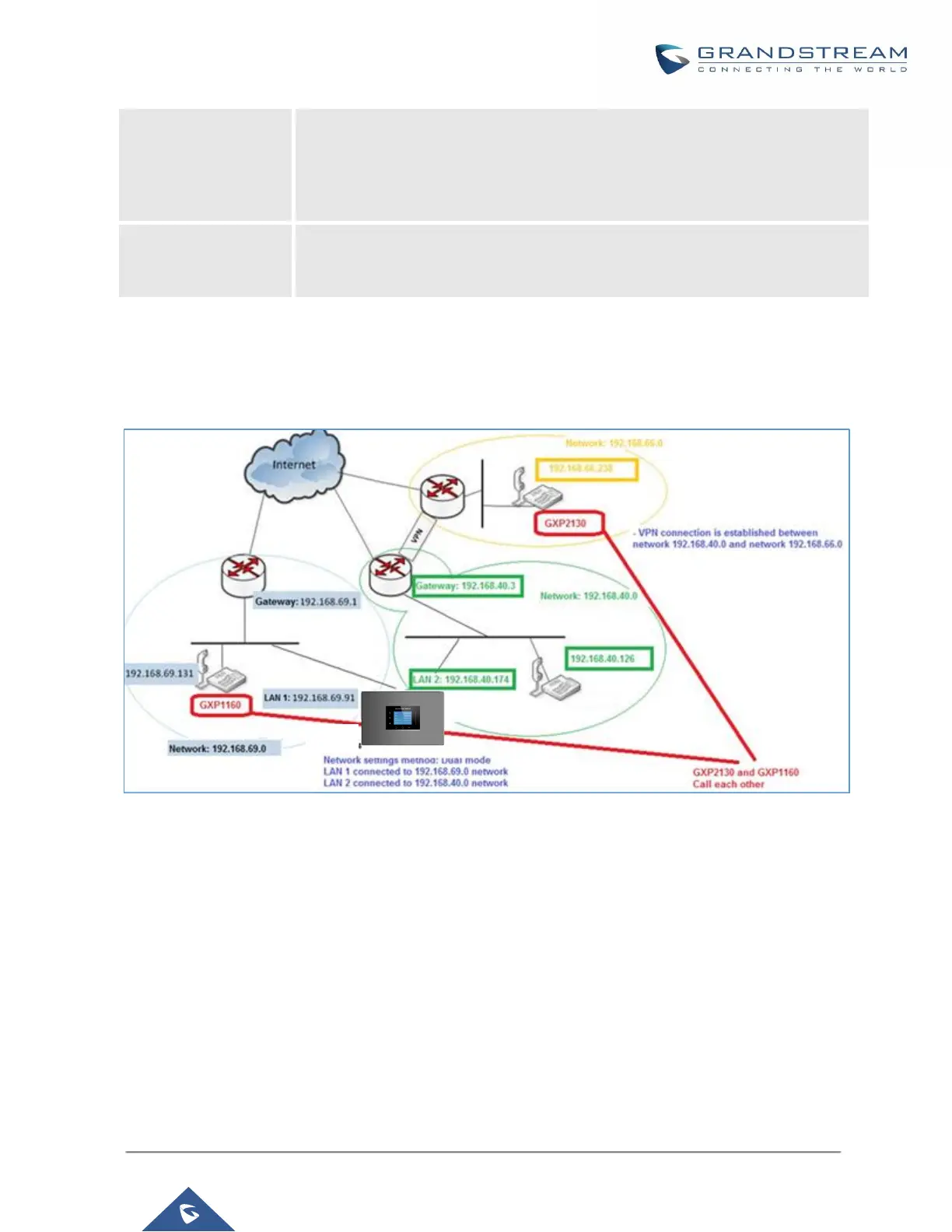

The following diagram shows a sample application of static route usage on UCM6304.
Figure 20: UCM6304 Static Route Sample
The network topology of the above diagram is as below:
 Network 192.168.69.0 has IP phones registered to UCM6304 LAN 1 address
 Network 192.168.40.0 has IP phones registered to UCM6304 LAN 2 address
 Network 192.168.66.0 has IP phones registered to UCM6304 via VPN
 Network 192.168.40.0 has VPN connection established with network 192.168.66.0
UCM6304
