Grant DuoWave Series User Manual

Technical
Specifications
6

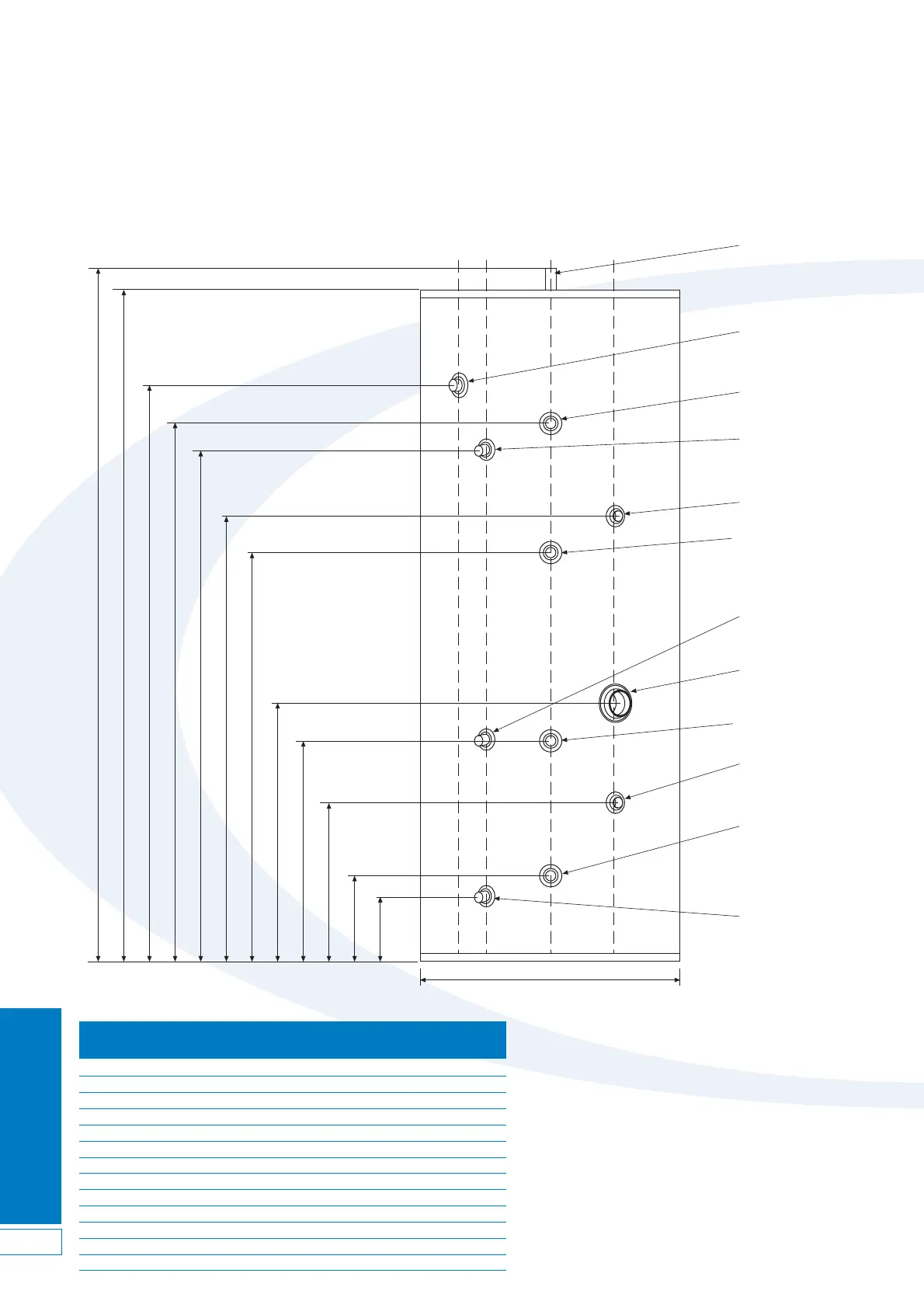

Figure 2-1: DuoWave indirect solar cylinder dimensions
Dia
ABCDEFGHIJKL
DuoWave Indirect Solar Cylinder Dimensions
2.3 Dimensions - DuoWave Direct & Indirect Solar Cylinders
2 Technical Specifications
40˚ 30˚
22mm Hot water
draw off
1
/2" T & P Relief
valve (factory fitted)
22mm Boiler flow
22mm Secondary
return
Boiler stat pocket
Solar stat pocket
22mm Solar flow
(not on 500 model)
Immersion heater
(factory fitted)
22mm Cold water
inlet
22mm Solar flow
(500 model only)
22mm Solar return
22mm Boiler return
0˚30˚
Dims Model
(mm) 170 200 250 300 400 500
A 200 200 200 200 200 235
B 275 275 275 320 320 N/A
C 330 330 330 375 400 600
D 380 380 380 420 420 620
E 460 460 460 510 510 715
F 540 660 795 860 1100 820
G 655 790 935 1005 1240 1120
H 735 870 1020 1095 1340 1260
I 795 940 1085 1155 1500 1390
J 800 955 1210 1460 1970 1590
K 1025 1170 1430 1695 2050 1640
L 1075 1230 1480 1745 2110 1835
Dia 580 580 580 580 580 660
