Grant DuoWave Series User Manual

2 Technical Specifications
Technical
Specifications
8
Dims Model
(mm) 170 200 250 300 400
A 210 210 210 210 210
B 275 275 275 280 280
C 310 315 375 380 380
D 360 375 460 460 500
E 460 460 700 855 1100
F 690 565 705 1005 1250
G 721 765 1020 1290 1550
H 735 945 1145 1435 1850
I 1025 1170 1430 1695 2045
J 1075 1230 1480 1745 2110
Dia 580 580 580 580 580
2.4 Dimensions - DuoWave HP Indirect Cylinders

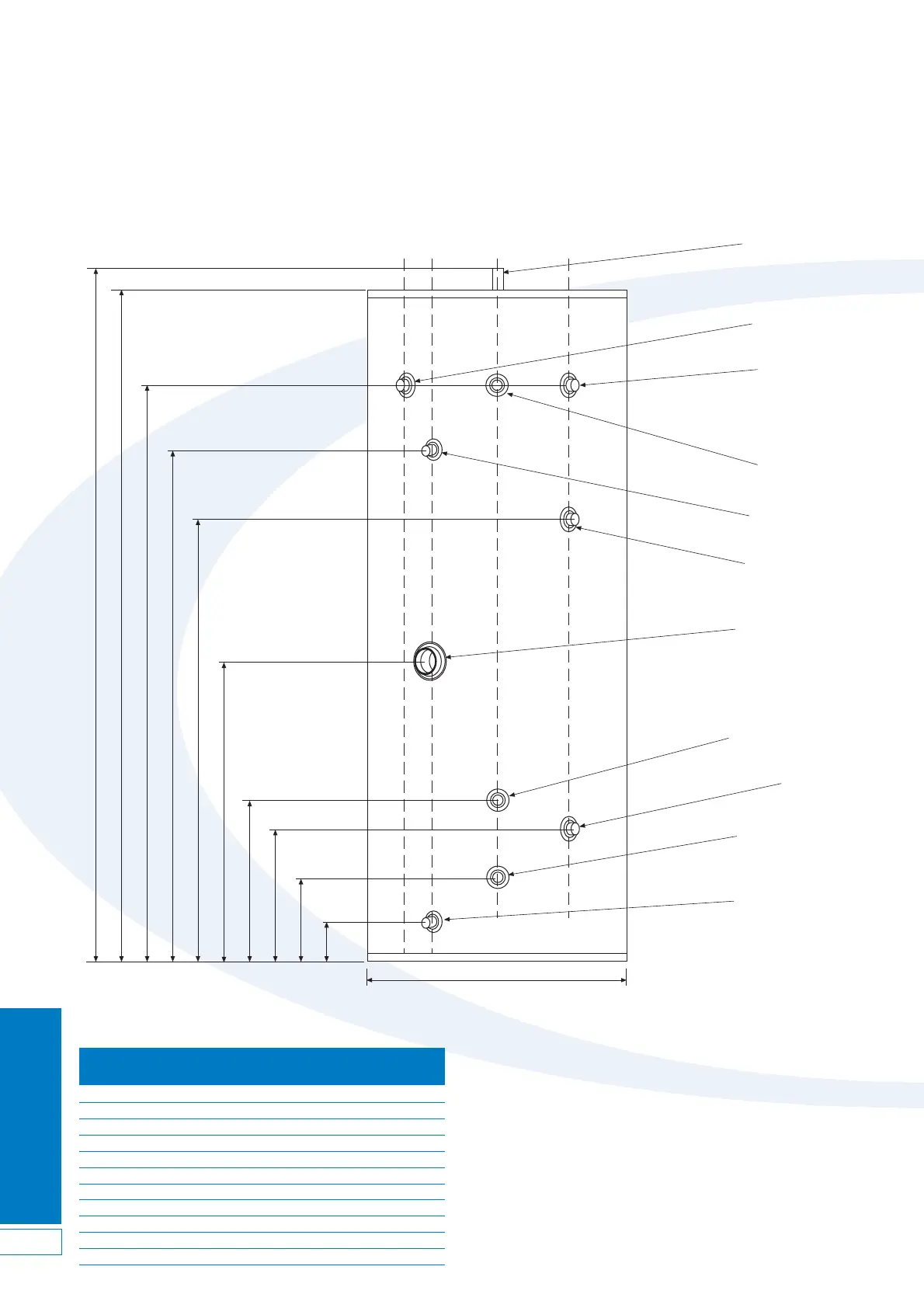

Figure 2-3: DuoWave HP indirect cylinder dimensions
Dia
ABCDEFGHIJ
DuoWave HP Indirect Cylinder Dimensions
40˚ 30˚0˚30˚
22mm Hot water
draw off
1
/2" T & P Relief
valve (factory fitted)
22mm Heat
pump flow
22mm Heat
pump return
22mm
Secondary return
Solar stat
pocket
22mm Solar flow
Immersion heater
(factory fitted)
22mm Cold water
inlet
22mm Solar return
Heat pump stat
pocket
